Maxon OD808 - OD808 Connection Diagram; OD808 Specifications

Input Impedance
Input Jack
Output Impedance
Output Jack
Control
Switch
Equivalent Input Noise
Maximum Gain
Power Supply
Power Requirements
Current Consumption
Dimensions (main body)
Dimensions (overall)
Weight
Standard Accessories
* Specifications are subject to change without notice.
: 500k ohms
: 1/4-inch standard phone jack
: 10k ohms
: 1/4-inch standard phone jack
: OVERDRIVE, BALANCE, TONE
: normal / effect
: -110dBu (IHF-A)
: 35dB
: One 9V battery or Maxon AC adaptor (option)
: DC9-10V
: 5mA (9V) / 6mA (10V)
: 61mm(W) x 112mm(D) x 35mm(H)
: 70mm(W) x 112mm(D) x 35mm(H)
: 9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor
: 260g
: 9V manganese dry battery x 1, skid x 1
※(0dBu
=
0.775Vms)
7

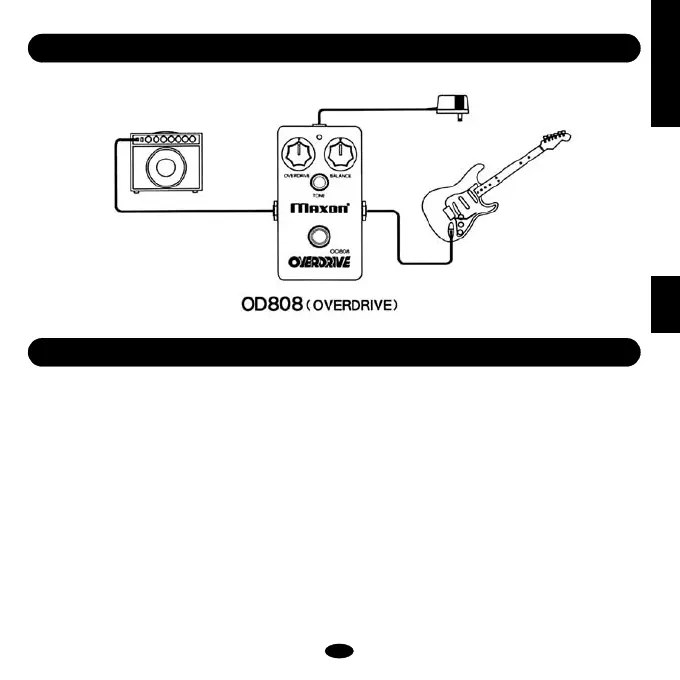

CONNECTION DIAGRAM
SPECIFICATIONS
OD808
ENGLISH
