SM9Pro+ Super Metal
FEATURES AND CONTROLS
SM9Pro+ was developed based on the distortion core of Maxon SM9 (Super Metal 9). Original
SM9 was sold just after NWOBHM which created a big boom in the late 1970s.
SM9Pro+ creates scooped heavy metal tones with high-level gain circuitry and cut midrange
circuitry. Wide range of setting from NWOBHM to current heavy rock / loud rock using drop D
tuning is available with simple four control knobs.
Operating voltage (9V or 18V mode) is switchable via an internal slide switch accessible
through the unit's battery compartment. In new power-saving circuitry for SM9Pro+, DC to DC
converter only operates at 18V mode. When 9V mode is selected, DC to DC converter does
not operate, and SM9Pro+ operates with battery or AC adaptor directly. There is no power
consumption for DC to DC converter, which makes battery life last longer.

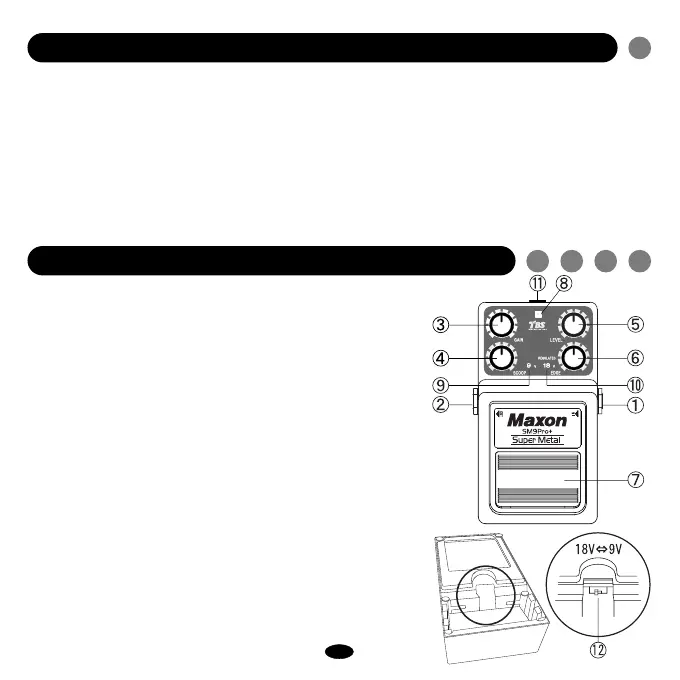

IN (input jack)
Input jack to connect to the output of guitar, other effects or re-
lated equipment. The product automatically turns on when a
plug is inserted into this jack without external power supply (AC
adaptor) operation. When not in use, disconnect plug from in-
put jack to preserve battery life.
OUT (output jack)
Output jack to connect to input of amplifier or other effects.
GAIN
Controls gain level. Turn it CW for more gain.
SCOOP
Controls cut midrange frequency.When turning it CW, the
frequency range of scoop moves to high range. When turning it
CCW, frequency range of scoop moves to low range.
LEVEL
This controls output level of distortion signal. Typically output
level in effect/bypass should be adjusted to equal level.
EDGE
Controls treble range. Turn it CW to accentuate treble range.
Turn it CCW to suppress treble range.
