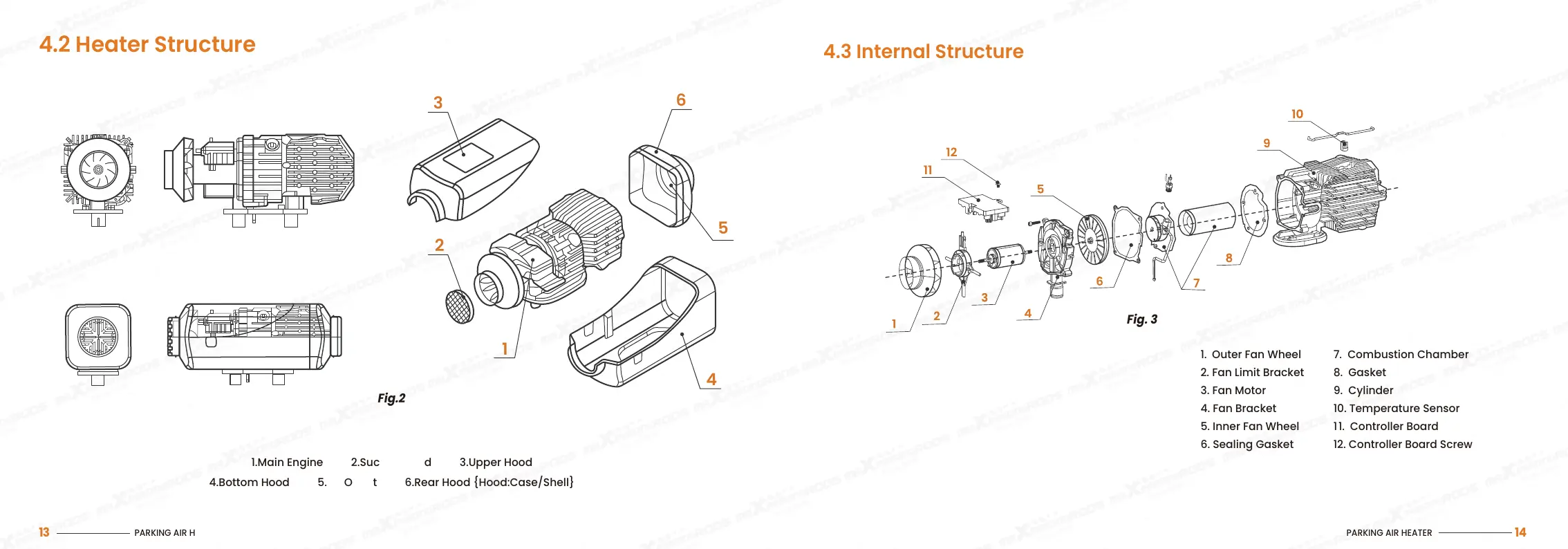

4.3 Internal Structure
PARKING AIR HEATER
14
1. Outer Fan Wheel
2. Fan Limit Bracket
3. Fan Motor
4. Fan Bracket
5. Inner Fan Wheel
6. Sealing Gasket
7. Combustion Chamber
8. Gasket
9. Cylinder
10. Temperature Sensor
1 1. Controller Board
12. Controller Board Screw
Fig. 3
4.2 Heater Structure
1.Main Engine 2.Suction Hood 3.Upper Hood
4.Bottom Hood 5.Air Outlet 6.Rear Hood {Hood:Case/Shell}
Fig.2
1
4
5
2
3
6
PARKING AIR HEATER
13
