37

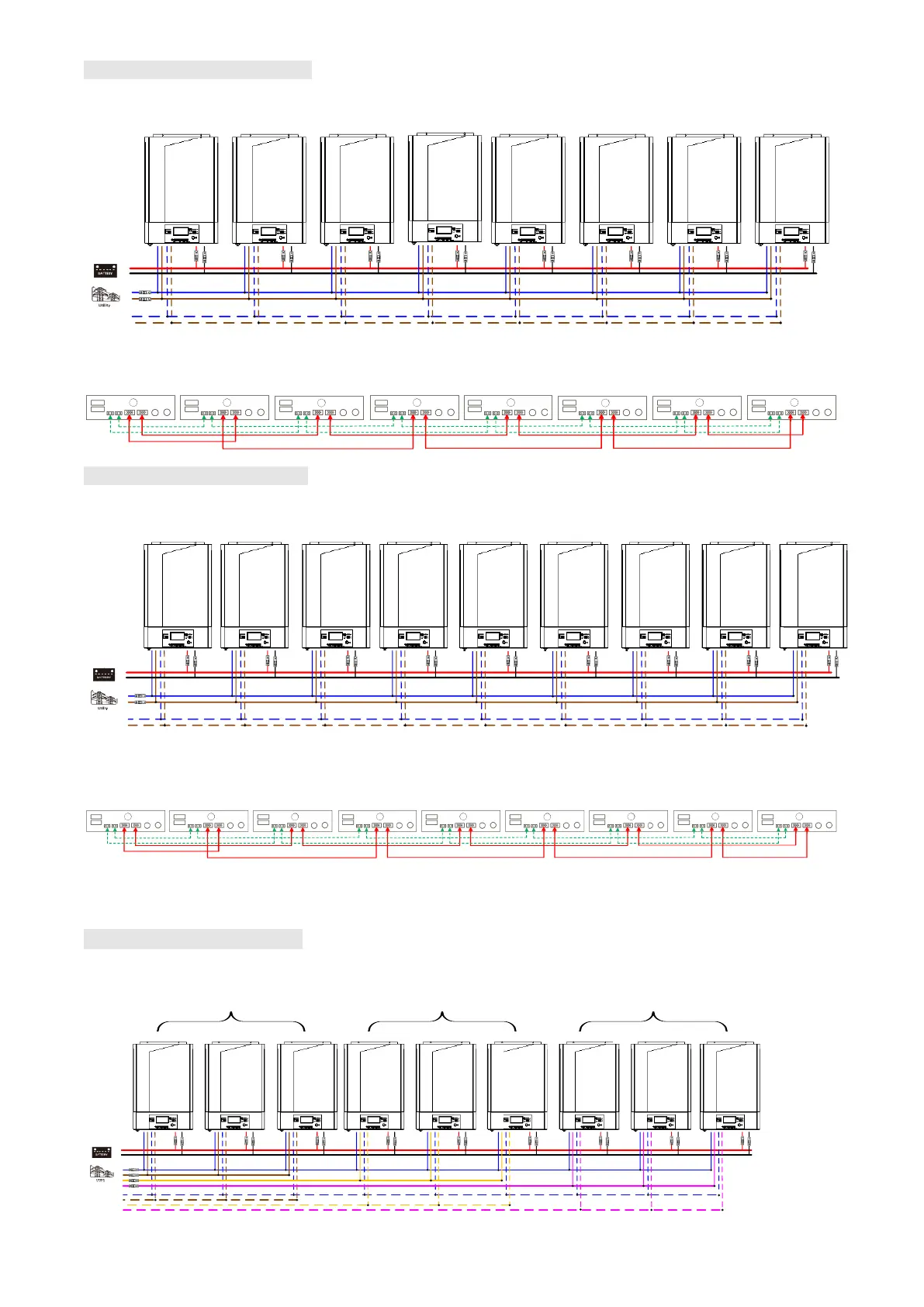

Eight to nine inverters in parallel:
Power Connection
Load
N
L
N
L
Communication Connection
❶ ❷
❸ ❹ ❺
❻
❼
❽
Nine to nine inverters in parallel:
Power Connection
Load
N
L
N
L
Communication Connection
❶ ❷
❸ ❹ ❺
❻
❼
❽ ❾
5-2. Support 3-phase equipment
Three inverters in each phase:
Power Connection
Load
N
L1
P1 P2 P3
L2
L3
N
L1
L2
L3
