MaxPower SUNBRIDGE PV6000 - Page 40

38
Communication Connection
❶ ❷
❸ ❹ ❺
❻
❼
❽ ❾

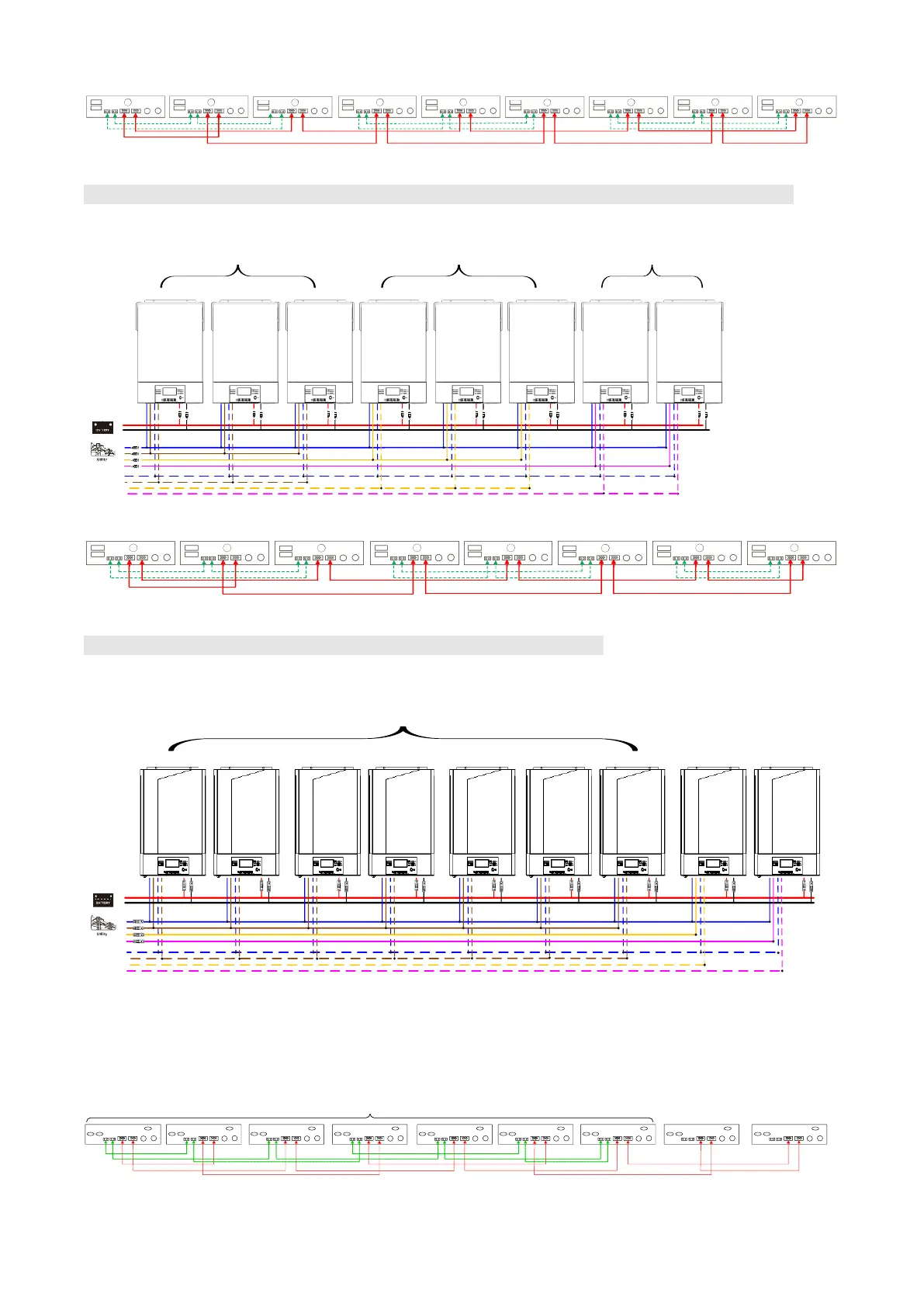

Three inverters in one phase, three inverters in second phase and two inverter for the third phase:
Power Connection
Load
N
L1
P1 P2 P3
L2
L3
N
L1
L2
L3
Communication Connection
❶ ❷
❸ ❹ ❺
❻
❼
❽
Seven inverters in one phase and one inverter for the other two phases:
Power Connection
Load
N
L1
P1 P2 P3
L2
L3
N
L1
L2
L3
Note: It’s up to customer’s demand to pick 7 inverters on any phase.
P1: L1-phase, P2: L2-phase, P3: L3-phase.
Communication Connection
④
① ② ③
⑨⑧
⑤ ⑥ ⑦
P1
P2
P3
Note: If there is only one unit in one phase, this unit doesn’t need to connect the current sharing cable.
Or you connect it like as below:
