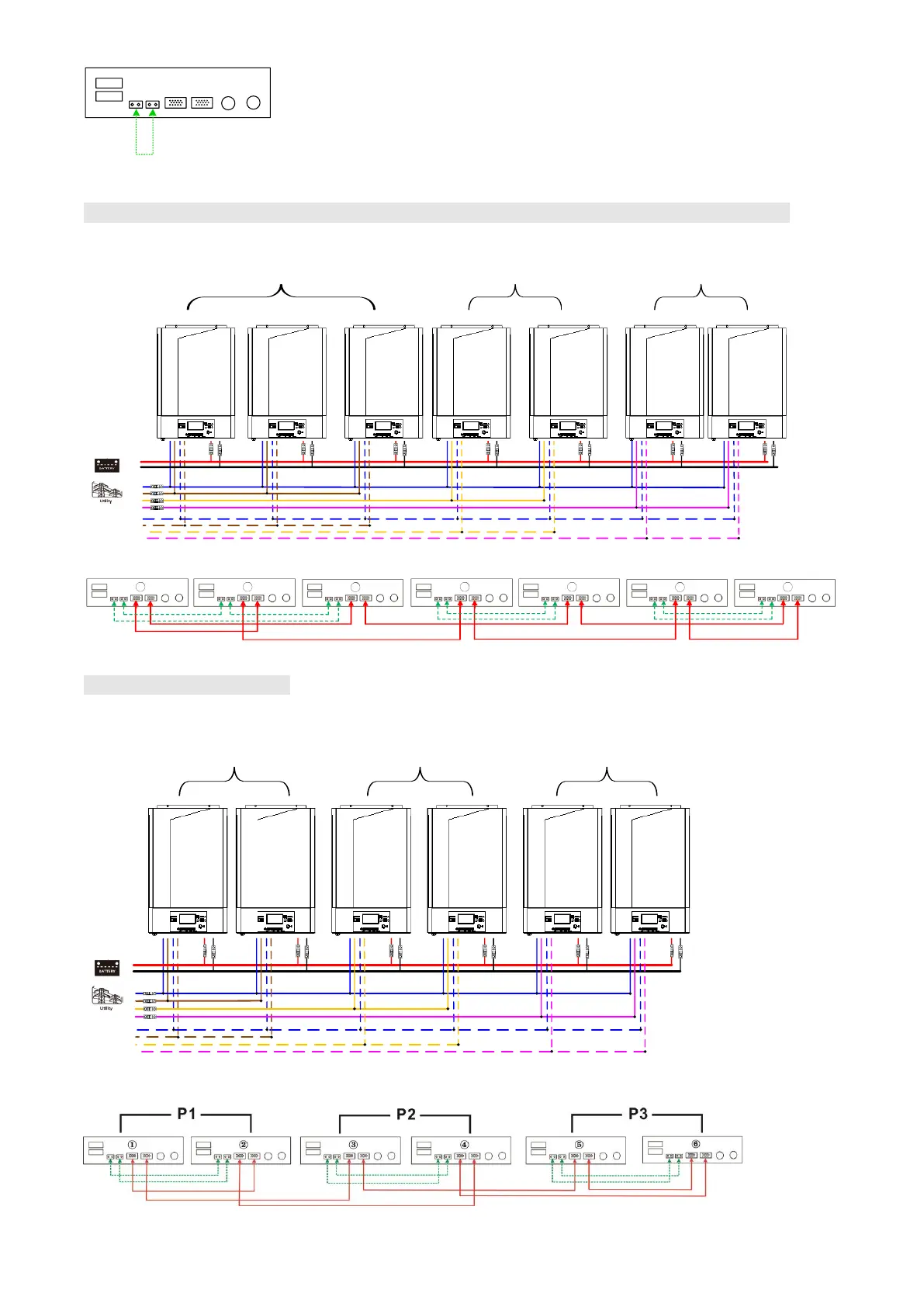

Three inverters in one phase, two inverters in second phase and two inverters for the third phase:
Power Connection
N
L1
P1 P2 P3
L2
L3
N
L1
L2
L3
Load
Communication Connection
❶ ❷
❸ ❹ ❺
❻
❼
Two inverters in each phase:
Power Connection
Load
N
L1
P1 P2 P3
L2
L3
N
L1
L2
L3
Communication Connection
