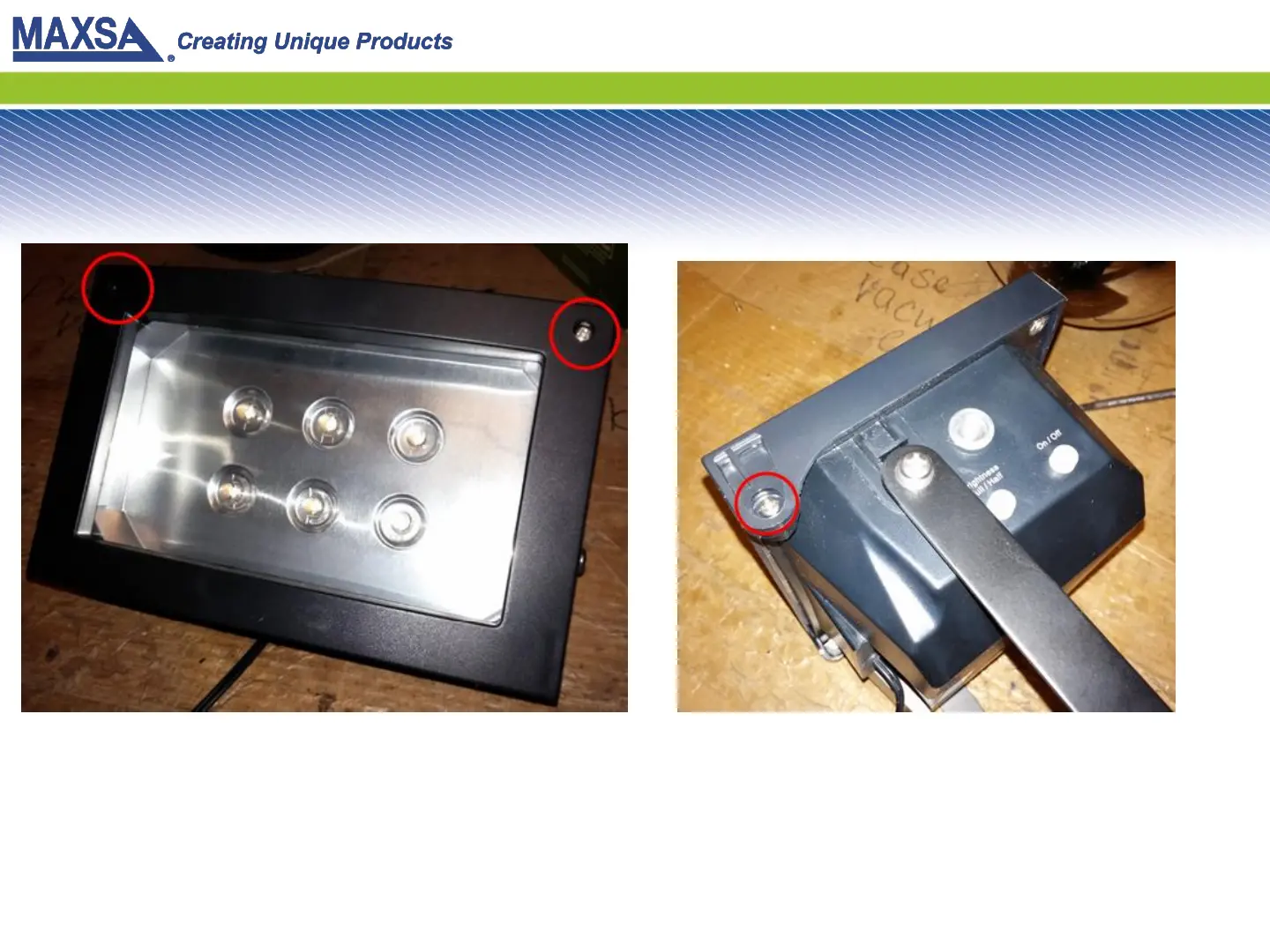

Step 1: Loosen Faceplate
Remove the circled screws from the nuts.
Loosen the screws on the side of the
faceplate. There is one screw on each
side.
