Maxsys PC4020 - Page 11

11
PC4020 Design Notes

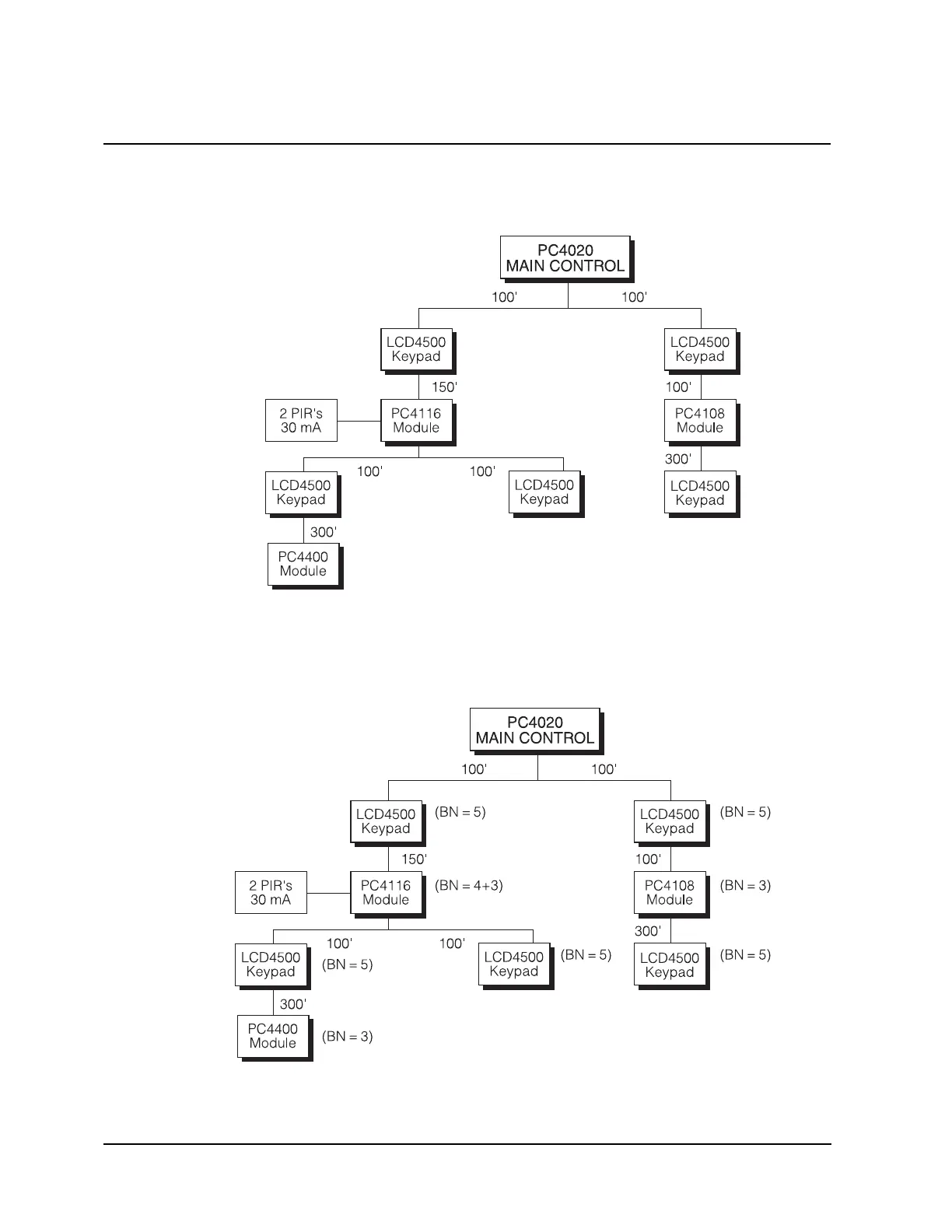

Step 4 - Indicate any other devices that require power if the devices draw power from any
module other than the AUX of a PC4204 module.
Step 5 - Write down the Base number for each module. Remember to add to the Base number if
devices requiring power are connected to the module.
