Maxum 2100SC - Fuel Tank - 1800 MX; Fuel Tank - 1800 SR, 1900 SR. 2000 SR, 2100 SC, & 2200 SR; Fuse Block - 1800 MX, 1800 SR, 1900 SR, & 2000 SR

Chapter 3: Locations
33

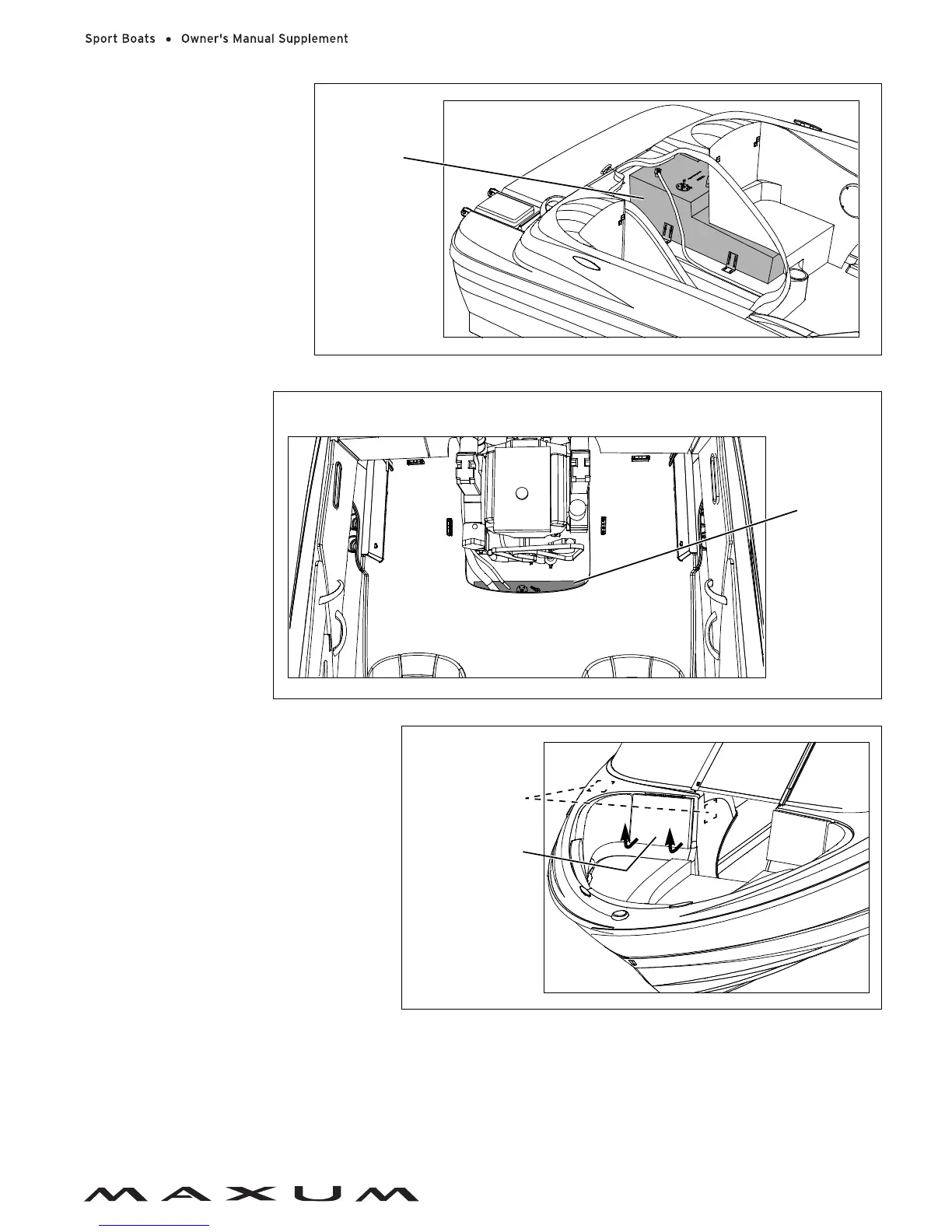

Fuel Tank - 1800MX: Located
in the engine compartment, on
the port side of the engine.
Fuel Tank - 1800SR,
1900SR. 2000SR,
2100SC, & 2200SR:
Located in the engine
compartment, forward of
the engine.
Fuse Block- 1800MX, 1800SR, 1900SR, &
2000SR: Access is through the starboard aft
seat back in the bow seating area.
FUEL TANK
FUEL TANK
TYPICAL VIEW
TYPICAL FUSE
LIFT SEAT BACK
FOR ACCESS TO
FUSE BLOCK
BLOCK LOCATIONS
