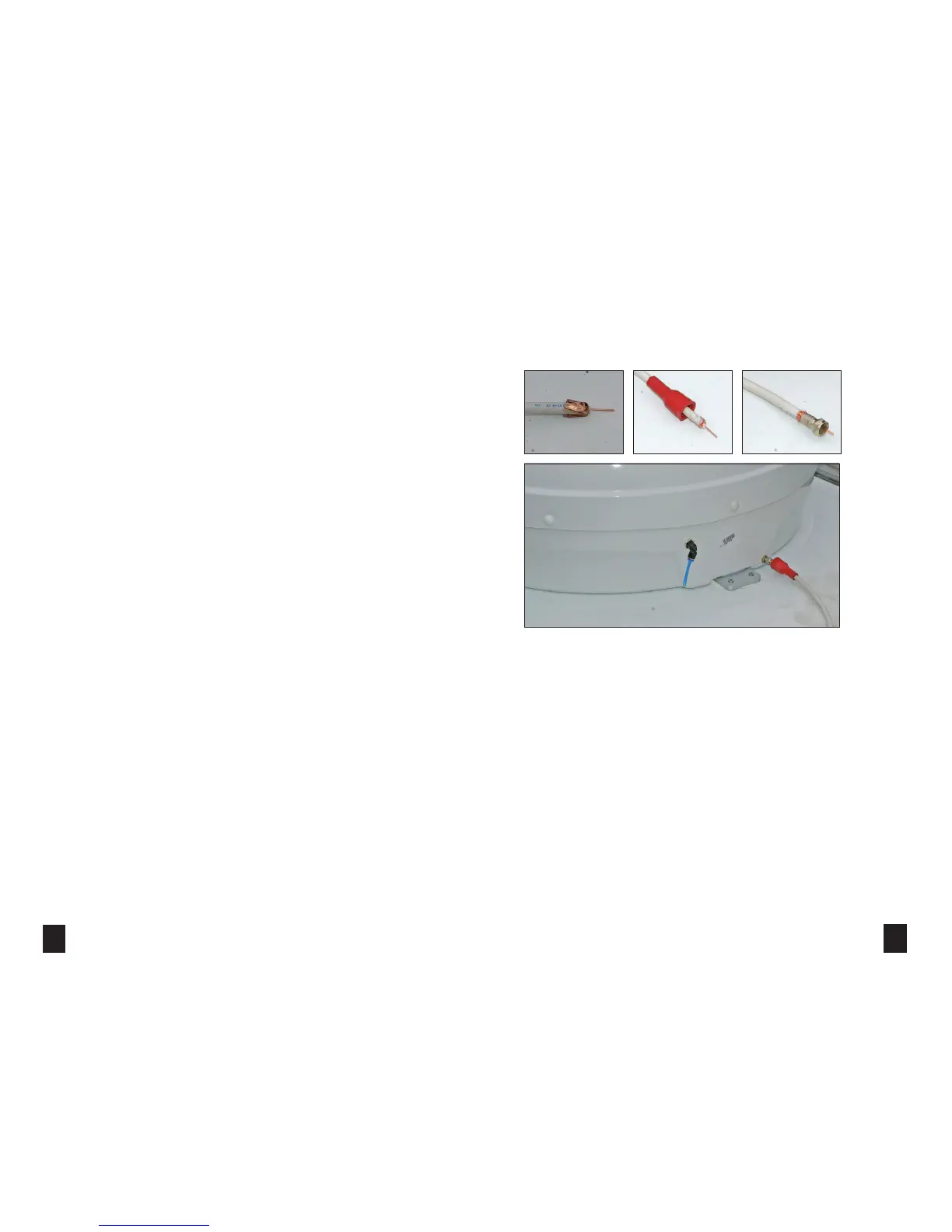

Note: The ‘F’ connector on the Omnisat Dome side of the cable is connected to the female ‘F’
connector socket on the antenna. The plastic ‘F’ connector boot on the antenna cable is pushed
onto the ‘F’ connector.
Inside vehicle route cable to satellite receiver and fit ‘F’ connector.
The 12-24V DC supply voltage should be taken from the correct point of the vehicle to
supply voltage to the Control Box. The 12-24V DC supply voltage is supplied via a
2 x 0.75mm2 power cord to connect to the Control Box.
The antenna cable coming from the Omnisat Dome is connected to the input of the
Control Box via an ‘F’ connector.
If a Set-Top-Box is used, connection between the Control Box and Set-Top-Box can be
made with the provided Loop through cable.
Once the electrical connections to the Control Box and Set-Top-Box (optional) are
completed, the Control Box and Set-Top-Box (optional) should be securely fastened to
prevent vibration.
SEE PAGE 12 FOR RECEIVER CONNECTION DIAGRAM
936
GENERAL SPECIFICATIONS
• AnimatedOSD
• 8000Channels
• Smartchannelscan
• Veryfastchannelswitch
• Mosaicchannels(15stillpicture,1livepicture)
• PictureinGraphics(PIG)
• VariousGames
• VariousUtilities
• CustomOSD-Radiobackgrounds
• Channellistbackup
• 16favoritechannelgroups
• Advancedchannelediting(Multipledeletion,multiplemove,hide,skip)
• DVBandTeletextSubtitle
• VBIandOSDTeletext
• ElectronicProgramGuide(EPG)
• Multilingualaudiosupport
• MultilingualOSD
• Parental,setupanddevicelock
• 8VCRtimers(once,dailyandweeklymodes)
• FirmwareandchannellistupdatefromPCorotherbox
• SCPC-MCPCcompliant
• 200MHzmainCPU
• 16MBFlash
• CI(CommonInterface)slot(optional)
TECHNICAL SPECIFICATIONS
SYSTEM SOURCES
CPU (Central Processing Unit): 200 MHz RISC
RAM: 128 Mb RAM
Flash memory: 16 Mb
DATA
Standard: RS232, 115200, 8, n, 1
Connector: 9 pin, D-type, male
POWER SUPPLY
Type: Switch Mode
Power consumption: 30W
Operating voltage: 12V.…24V DC
GENERAL
Dimensions: 185 x 202 x 60 mm
Weight: 1400 gr
Operating temperature: 5~40 °C
