MAXXTOW 70271 - Parts List; Assembly Drawing

Model 70271 Page 6
Parts List

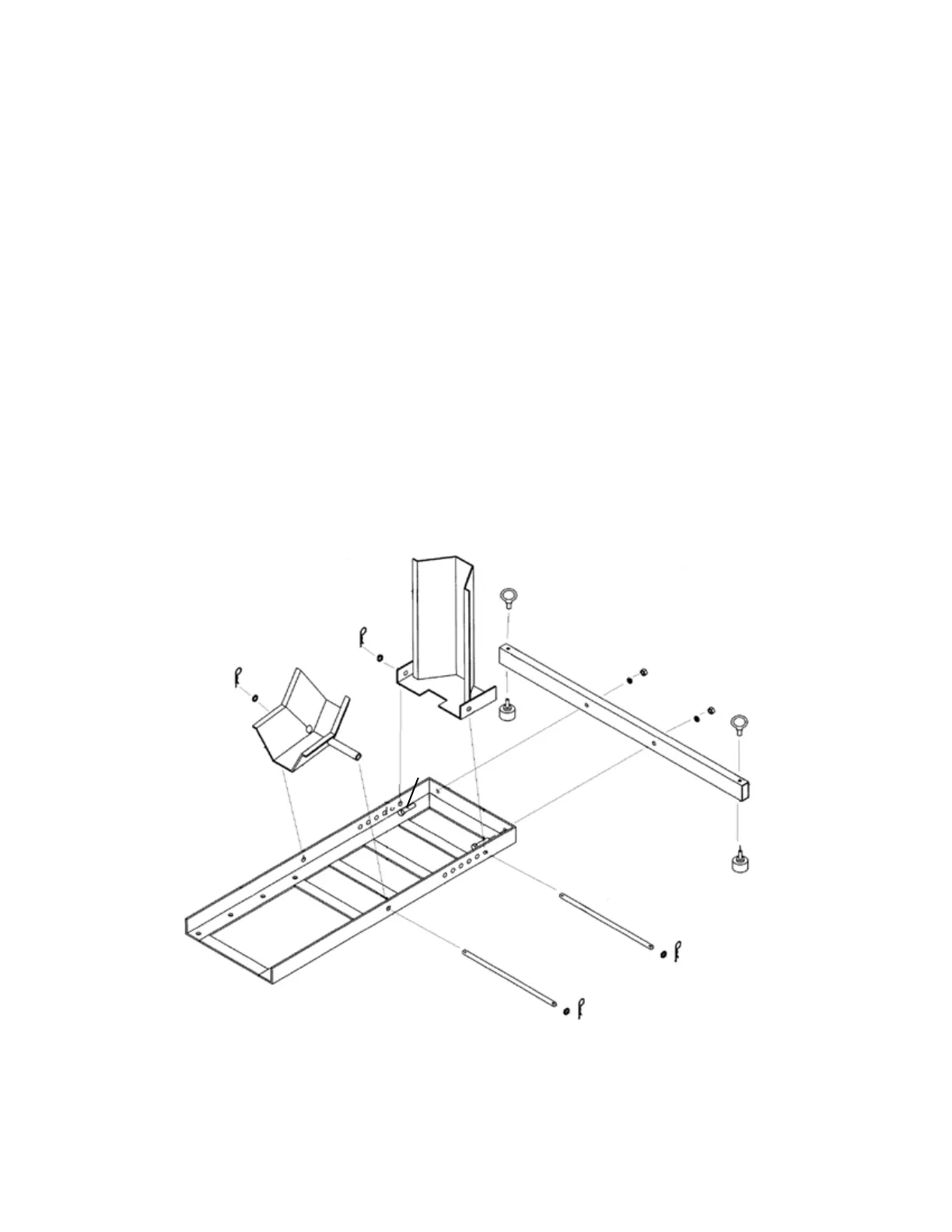

Assembly Drawing
Note: The Parts List and Assembly Diagram is provided as a reference tool only.
Some parts are listed and shown for illustration purposes only, and are not available
as replacement parts. All repairs to this tool (including replacing parts) should only
be done by a qualied service technician.
Part # Description Qty
1 Wheel Cradle 1
2 Wheel Bracket 1
3 Stand Base 1
4 Front Support 1
5 Eyelet 2
6 Leg Plug 2
7 Washer, size 10 2
8 Nut, M10 2
9 Washer, size 12 4
10 R-Pin 4
11 Rod 2
12 Bolt, M10 x 45 2
1
2
3
4
5
6
7
8
9
10
11
12
12
