Maxxus HYPEREXTENSION - Exploded Drawing; Spare Parts List

19
ENG
Part No. Description Qty
1 Main Support 1
2 Bent Base 1
3 Front Base 1
4 Foot Plate 1
5 Adjustable Support 1
6 Handlebar 1
7 Reinforcement Plate 3
8 Cushion 2
9 Foam Roller 2
10 Fast Pin 1
Part No. Description Qty
11 End Cap 4
12 Bolt M10x75 4
13 Bolt M10x65 2
14 Bolt M8x20 4
15 Washer 10 16
16 Washer 8 4
17 Lock Nut M10 8
18 Foam tube 1
19 Bolt M10x50 2

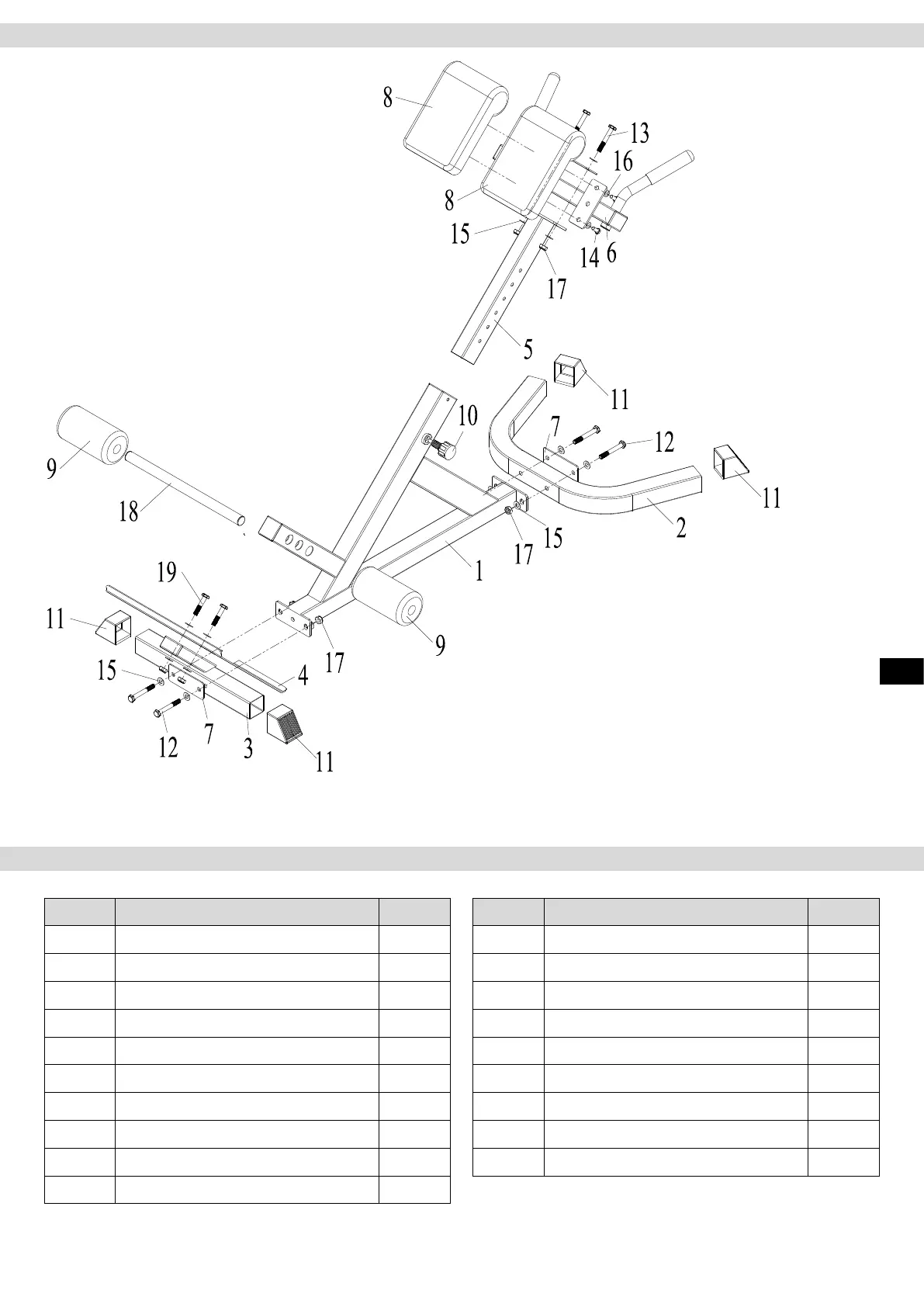

Exploded Drawing
Spare Parts List
