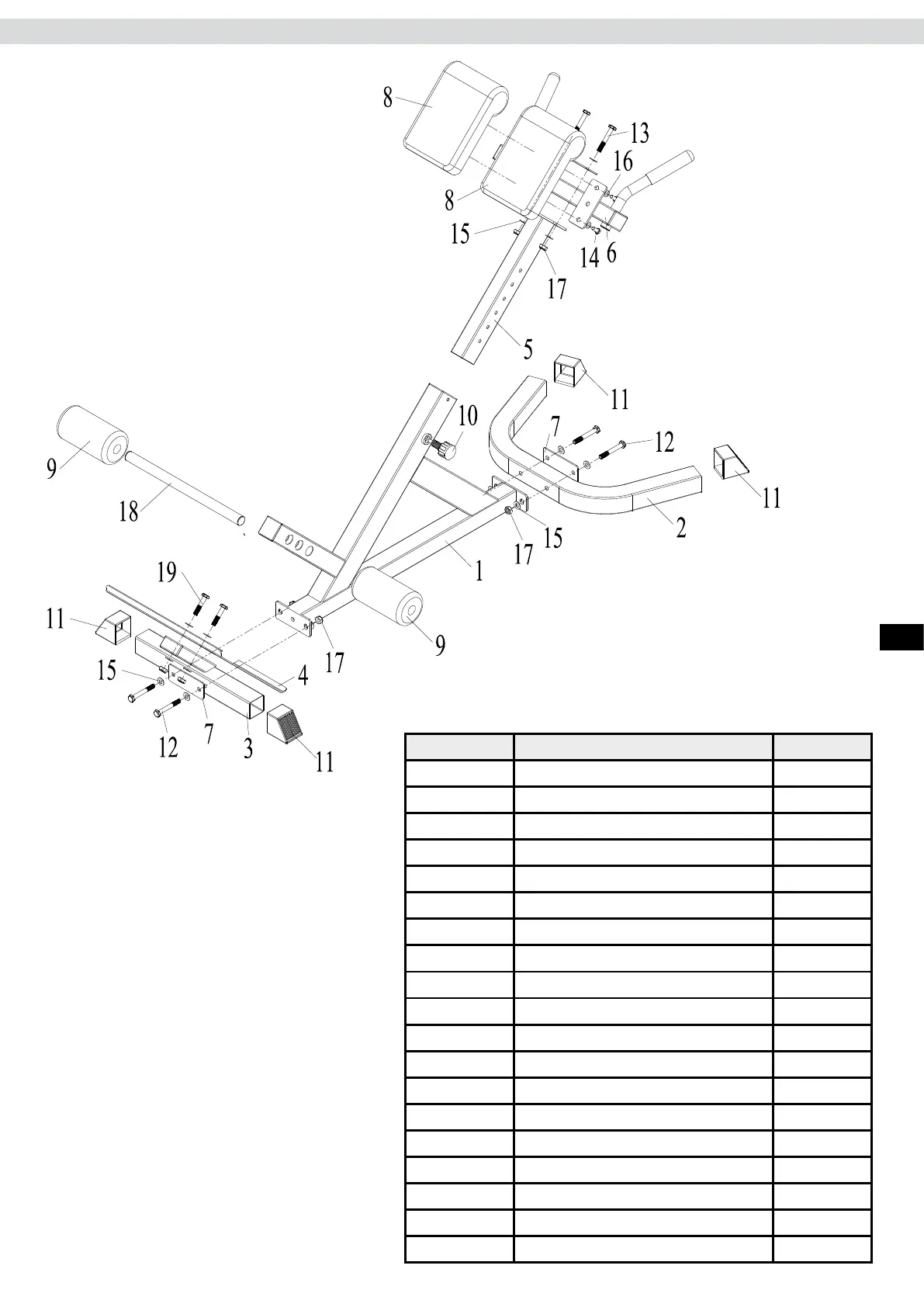

Explosionszeichnung
4
FOOT PLATE
1
6 HANDLE BAR 1
14 BOLT M8∗20 4
1 MAIN SUPPORT 1
2 BEND BASE 1
3 FRONT BASE 1
5 ADJUSTABLE SUPPORT 1
7 REINFORCEMENT PLATE 3
8 CUSHION 2
9 FOAM ROLLER 2
10 FAST PIN 1
11 END CAP 4
12 BOLT M10∗75 4
13 BOLT M10∗65 2
15 WASHER 10 16
16 WASHER 8 4
17 LOCK NUT M10 8
18 FOAM TUBE 1
19 BOLT M10∗50 2
Teile-Nr.
Bezeichnung
Menge
