Maxxus PRO User Manual

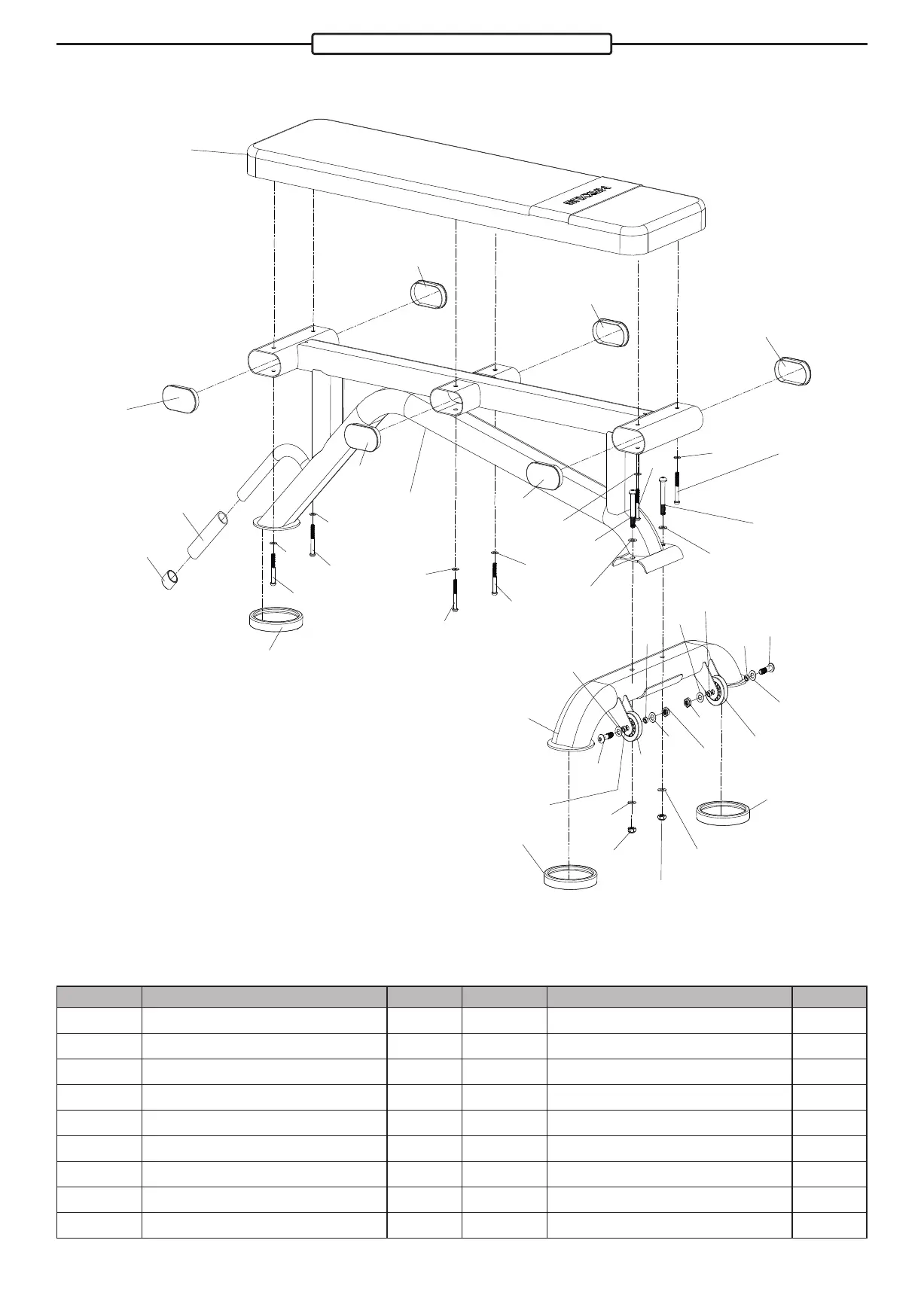

Teile-Liste
Teile-Nr.
Bezeichnung
Menge
Teile-Nr.
Bezeichnung
Menge
01
Main frame
1
10
Inner Hexagon Screw M8x60
6
02
Rear Foot
1
11
Inner Hexagon Screw M10x70
2
03
Back Pad
1
12
Dipping Handle Bar Socket
1
04
Stopper Ø132
3
13
End cap
1
05
Wheel
2
14
Plastic End Cap 40x80
6
06
Inner Hexagon Screw M10x45
2
15
Lock Nut M8
2
07
Flat Washer Ø10
8
16
Inner Hexagon Screw M8x48
2
08
Lock Nut M10
4
17
Shaft Ø12 x Ø8 x 5,5
4
09
Flat Washer Ø10
6
10
1
2
3
4
4
4
5
5
16
16
9
9
15
9
9
15
9
9
9
9
9
9
7
07
8
8
7
7
10
10
10
10
10
10
11
11
12
13
14
14
14
14
14
14
17
17
17
17
