Pg. 5

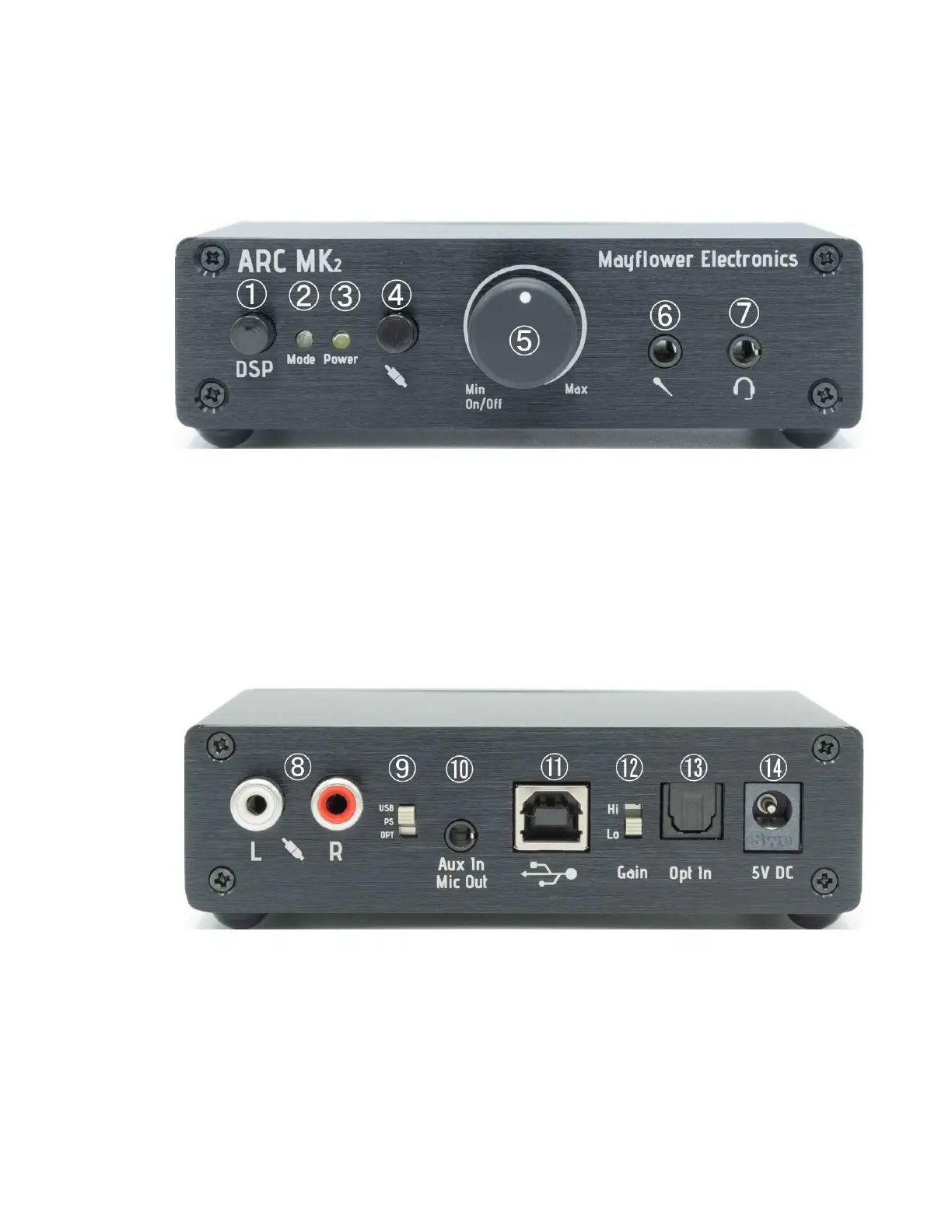

Connections + Controls
Front
① DSP Mode Button
② DSP Mode LED
③ Power LED
④ Headphone / RCA Output Selector
⑤ Digital Volume Control + Power Switch
⑥ Microphone Input (3.5 mm)
⑦ Headphone / Headset Connector (3.5mm)
Back
⑧ RCA Speaker Pre-outs
⑨ Input Selector Switch
⑩ Combination Aux In / Mic out
⑪ Full-size USB Connector
⑫ Output Gain Selector
⑬ TOSLINK Optical Connector
⑭ 5v DC Power Connector (if needed)
To Next Page
