4-19

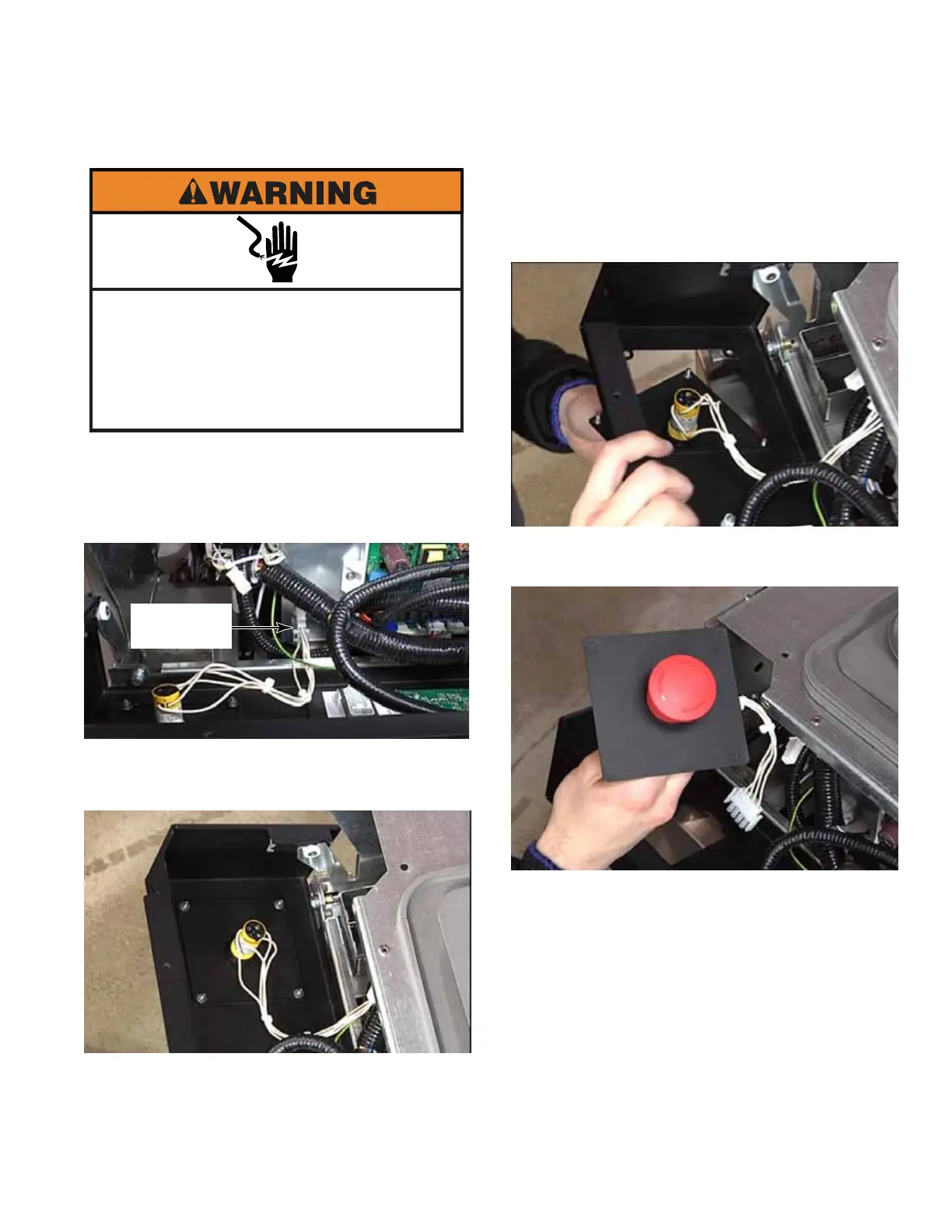

1. To remove the Emergency stop button,
open the control panel (See page 4-18).
2. Disconnect the wire harness plug.
3. Remove four 7mm hex nuts securing the
emergency stop button mounting plate to
the control panel.
4. There is a nut, a star washer and a flat
washer.
5. Support button when removing the last nut.
6. Remove the emergency stop button from
the front of the control panel.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
EMERGENCY STOP BUTTON
Harness
Plug
To Next Page
