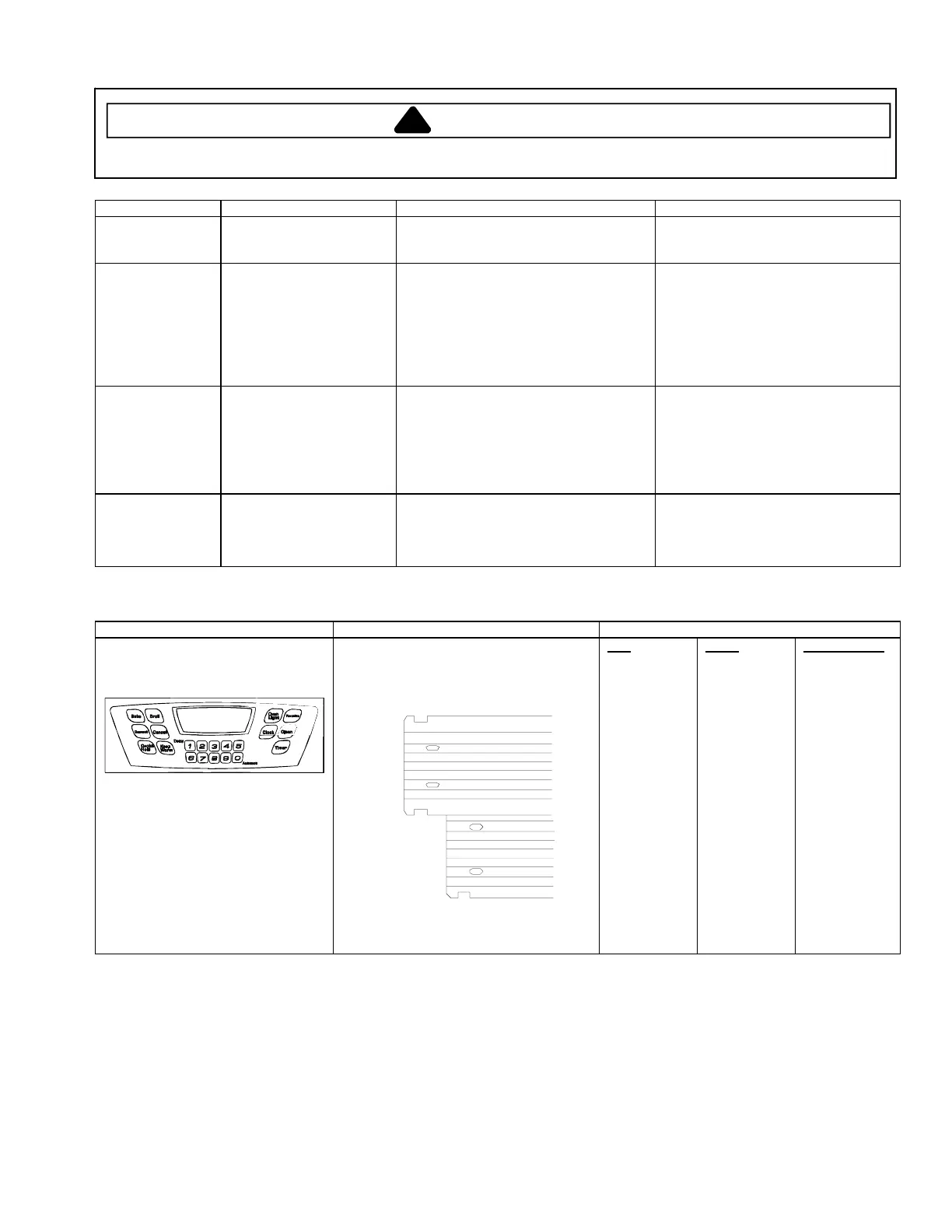

Control Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to range before servicing, unless
testing requires power.
June 2006 16027233
© 2006 Maytag Services Replaces 16027002
5
Control Feature Test Procedure Results
H1 12-hour shutoff Control cancels cooking operations and
disables relay drives 12 hours after last
pad touch.
See Sabbath mode to disable.
H1 Sabbath mode Hold CLOCK pad for 3 to 5 seconds to
activate Sabbath mode.
Hold CLOCK pad for 3 to 5 seconds to
disable Sabbath mode.
Desired bake function must be initiated
before entering Sabbath mode.
"SAb" flashes for 5 seconds, then
remains on until timed-out or canceled.
(Status SAb is not fault code 5A6.) All
pad inputs are disabled except
CANCEL and CLOCK. 12-hour shutoff
is disabled, allowing bake mode
operation for 72 hours. The oven light
is not disabled.
H1 Child lockout Press and hold CANCEL and COOK &
HOLD pads for 3 to 5 seconds. "OFF"
displays in temperature display area.
"LOCK" flashes while door is locking.
To reactivate control, press and hold
CANCEL and COOK & HOLD pads for 3
to 5 seconds.
This safety feature prevents children
from accidentally programming the
oven. The electronic oven control is
disabled.
Child lockout features must be reset
after a power failure.
H1 Diagnostic code display Press and hold AUTOSET pad when
applying power to the range.
Cycle through the codes using the
number pads 1 through 5.
The last 5 diagnostic codes will be
stored in the non-volatile memory.
See "Description of Error Codes" for
explanation.
Feature Test Procedure Results
H1 Control Panel Assembly Matrix
(AER5815RC*)
Continuity is indicated as follows:
1000 – 6600 Ω for Cancel pad.
1000 – 15000 Ω for All other pads.
1
16
9
8
Pad
1
2
3
4
5
6
7
8
9
0
Cancel
Clock
Cook & Hold
Broil
Bake
Convect
Clean
Keep Warm
Favorites
Timer
Light
Trace
5 & 14
4 & 14
4 & 13
4 & 12
4 & 10
13 & 14
4 & 5
5 & 13
5 & 12
5 & 10
1 & 2 or 1 & 3
13 & 15
11 & 12
7 & 15
7 & 14
10 & 11
10 & 12
4 & 7
10 & 15
12 & 13
12 & 15
Measurement
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
