ELECTRICAL
Refer to serial plate for specific
electrical requirements. For
more detailed information refer
to section on Electrical
Requirements.
WATER
Washer needs two standard
3/4 inch water supply faucets
with a pressure between
20–120 pounds per square inch.
For more detailed information
refer to section on Water
Requirements.
PARTS supplied for installation:
Cable tie to secure drain hose to standpipe, inlet hose or laundry tub
• Multi wrench
• Utility knife
• Channel lock
•Level
READ THIS BEFORE YOU START…
Tools needed for installation:

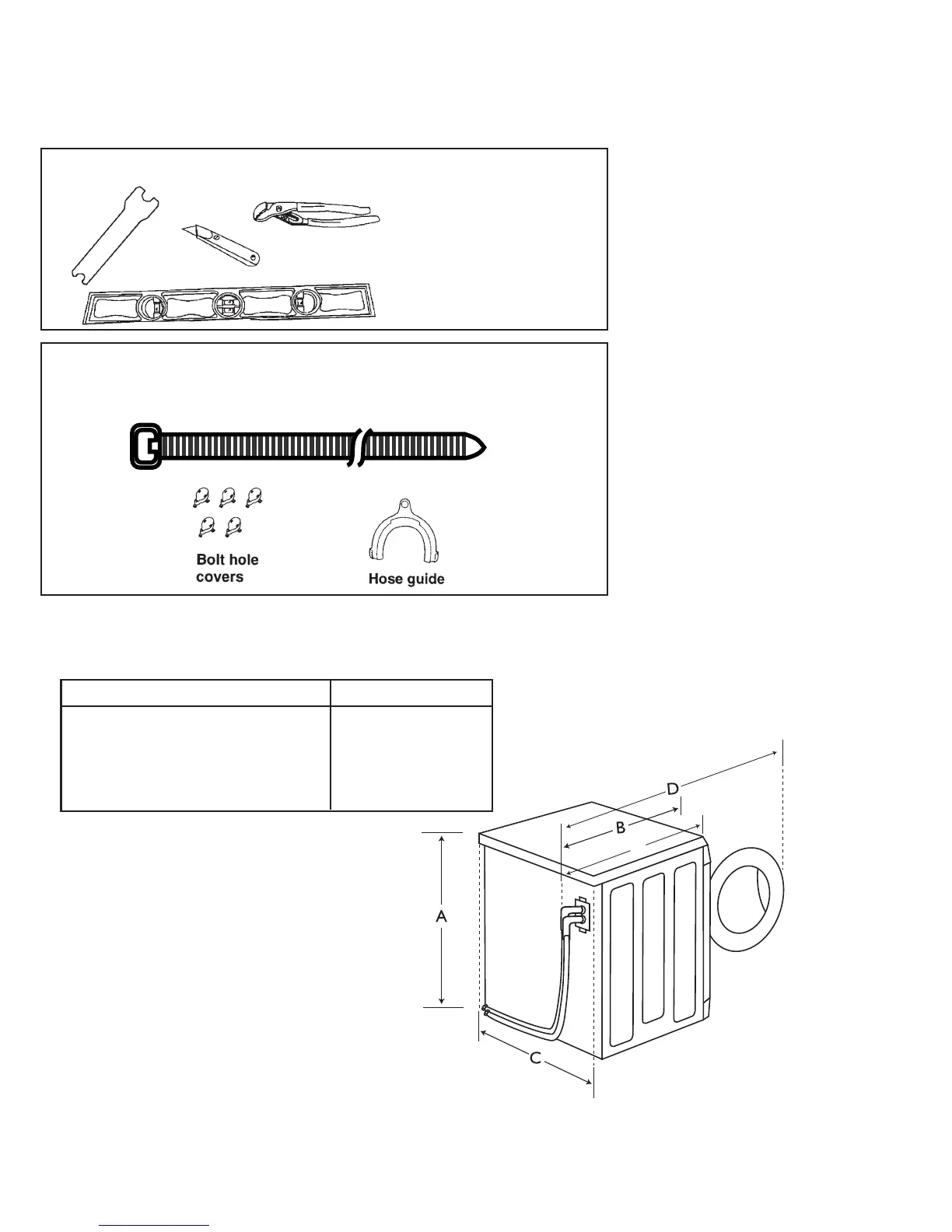

CABINET DIMENSIONS
WASHER DIMENSIONS INCH (CM)
A. Height – Overall* 33.25” (84.5)
B. Depth to Front of Control Dial 26” (66.1)
C. Width 23.5” (59.7)
D. Depth – With Washer Door Open 90° 41.25” (104.3)
E. Depth 24” (60.9)
Note:
The height of the washer from top to floor is 33 1\4" this includes the leveling leg screwed all the way in. The customer
can unscrew the leg out an additional 7\8" for a total overall height of 34 1\8".
