Troubleshooting Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death, disconnect power to unit before servicing, unless testing
requires power.
Agita
t
i
o
n
S
p
i
n

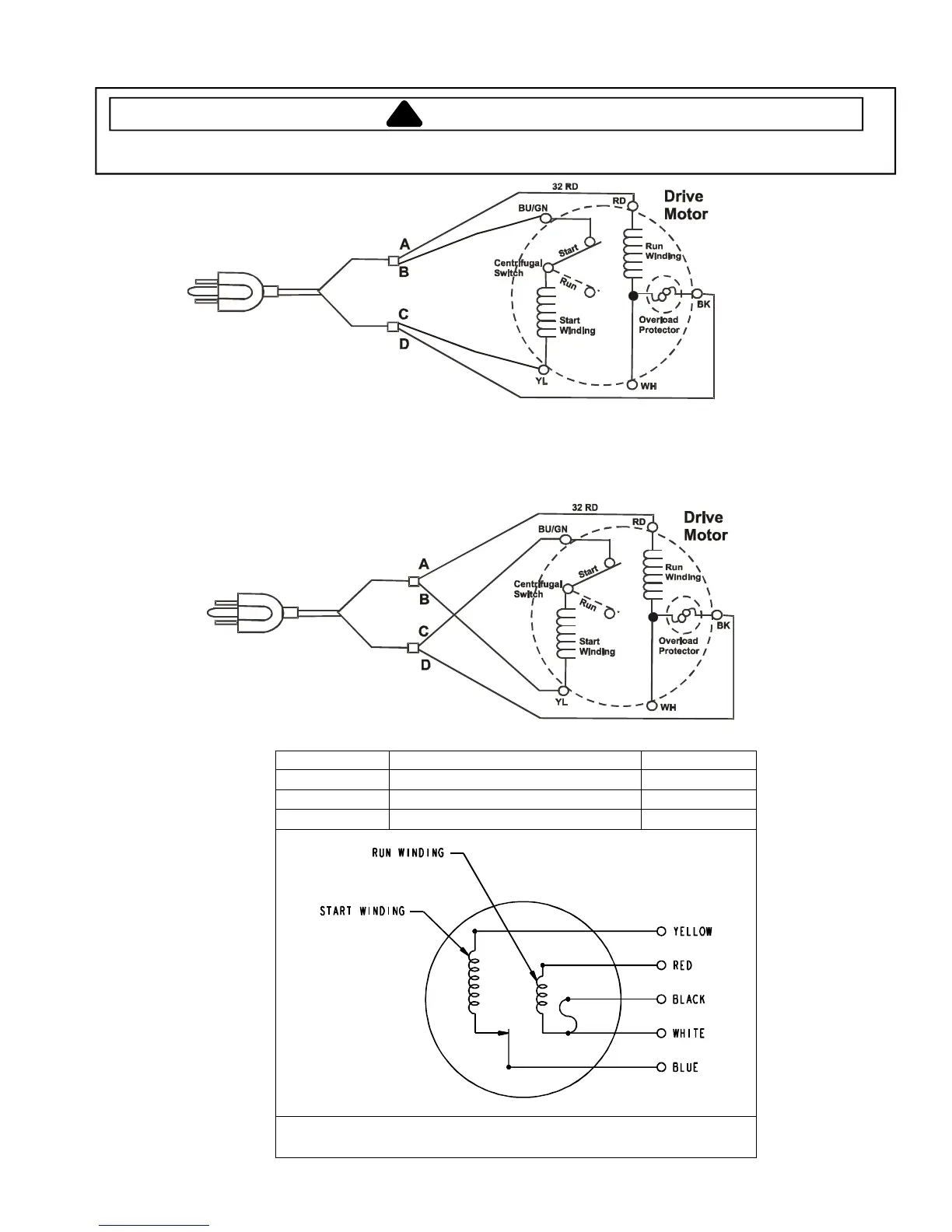

Windings Wiring Harness Connections Readings
Run Winding Red to White or Black
1.5Ω
Start Winding Yellow to Blue
3Ω
Over-load White to Black
0 Ω
Note: Export Motors-run windings 4.9Ω, start windings 20.5Ω,
over-load 0 Ω.
