10
IMPORTANT: The drain hose connection of the disposer or a
waste tee must be made before the drain trap and at least
20" (50.8 cm) above the floor where the dishwasher will be
installed.
Helpful Tip: To reduce vibration of the hose, keep the hose away
from the floor.

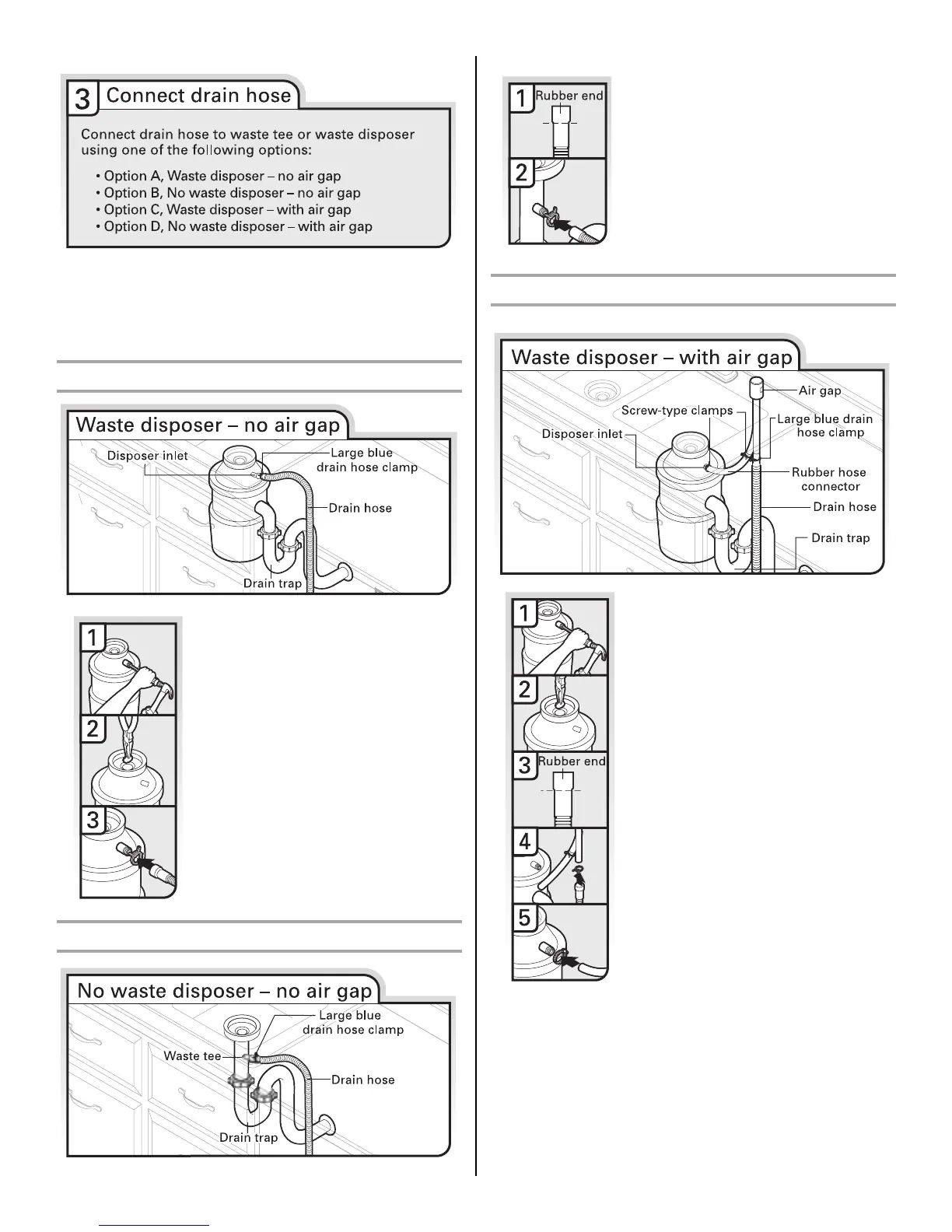

Option A, Waste disposer – no air gap
Option B, No waste disposer – no air gap
Option C, Waste disposer – with air gap
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3. Attach drain hose to disposer inlet
with large blue drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
1. Fit rubber end of drain hose to waste
tee and cut if needed.
NOTE: Do not cut ribbed section.
2. Attach rubber end of drain hose to
waste tee with a large blue drain
hose clamp (provided). Use pliers to
squeeze clamp open and move into
position. If the drain hose was cut,
use a 1¹⁄₂" to 2" (3.8 to 5 cm) screw-
type clamp (not provided).
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3. Connect rubber end of drain hose to
air gap and cut if needed.
NOTE: Do not cut ribbed section.
4. Attach drain hose to air gap with
large blue drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
If the drain hose was cut, use a 1¹⁄₂"
to 2" (3.8 to 5 cm) screw-type clamp
(not provided).
5. Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from air gap to
disposer inlet.
To Next Page
