40 16022904 Rev. 0 ©2004 Maytag Appliances Company
WARNI NG
!
To avoid risk of electrical shock, personal injury or death;
disconnect power to unit before servicing.

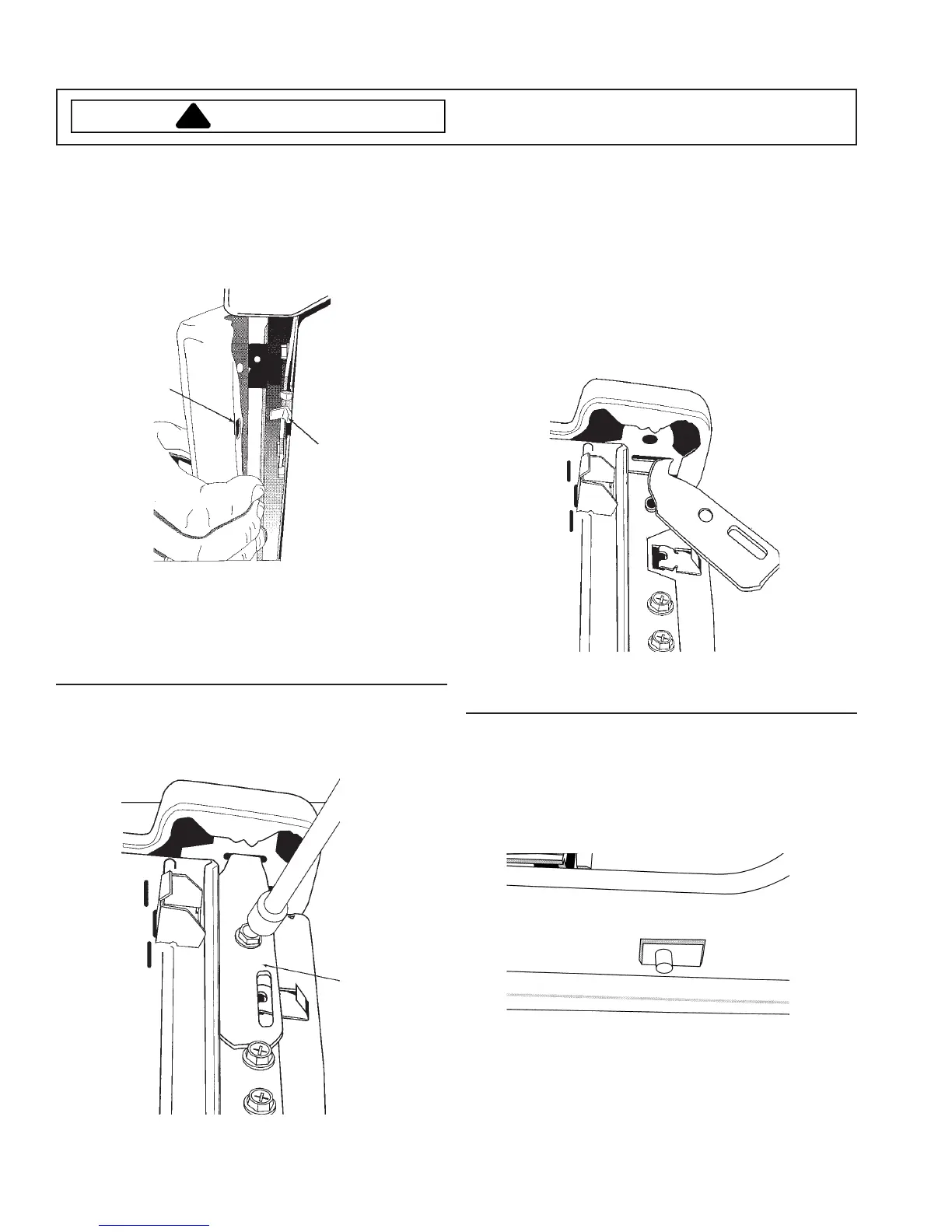

Disassembly Procedures
4. Grasp the verticle sides of the front panel 3/4 of the
way down and pull front panel away from the dryer.
Note: The front panel is held to the cabinet by means
of clips secured to the front shroud. Small slots
in the front panel engage the clips and hold the
front panel in place.
5. Tilt the top of the front panel away from the machine
and lift the panel off two clips retaining the front panel
to the base frame.
6. Disconnect wires to Door Switch.
Slot
Retaining
Clip
Top Cover
1. Disconnect power supply to unit.
2. Remove the front panel
.
Door Switch
1. Disconnect power supply to unit.
2. Remove Front Panel.
3. Remove wires from switch.
4. Squeeze tabs on switch together and remove switch.
3. Locate and remove two 5/16" hex head screws
securing the two hold down brackets for the top cover.
4. To remove the hold down brackets, swing the bracket
to the outside and unhook the bracket from the slot in
the top cover lip.
Note: If the door is still positioned on the front shroud,
open the door prior to lifting the front of the top
cover and tilt the top cover toward the rear of the
machine.
Hold
Down
Bracket
Cover
Shroud
To Next Page
