54 16022904 Rev. 0 ©2004 Maytag Appliances Company
WARNI NG
!
To avoid risk of electrical shock, personal injury or death;
disconnect power to unit before servicing.

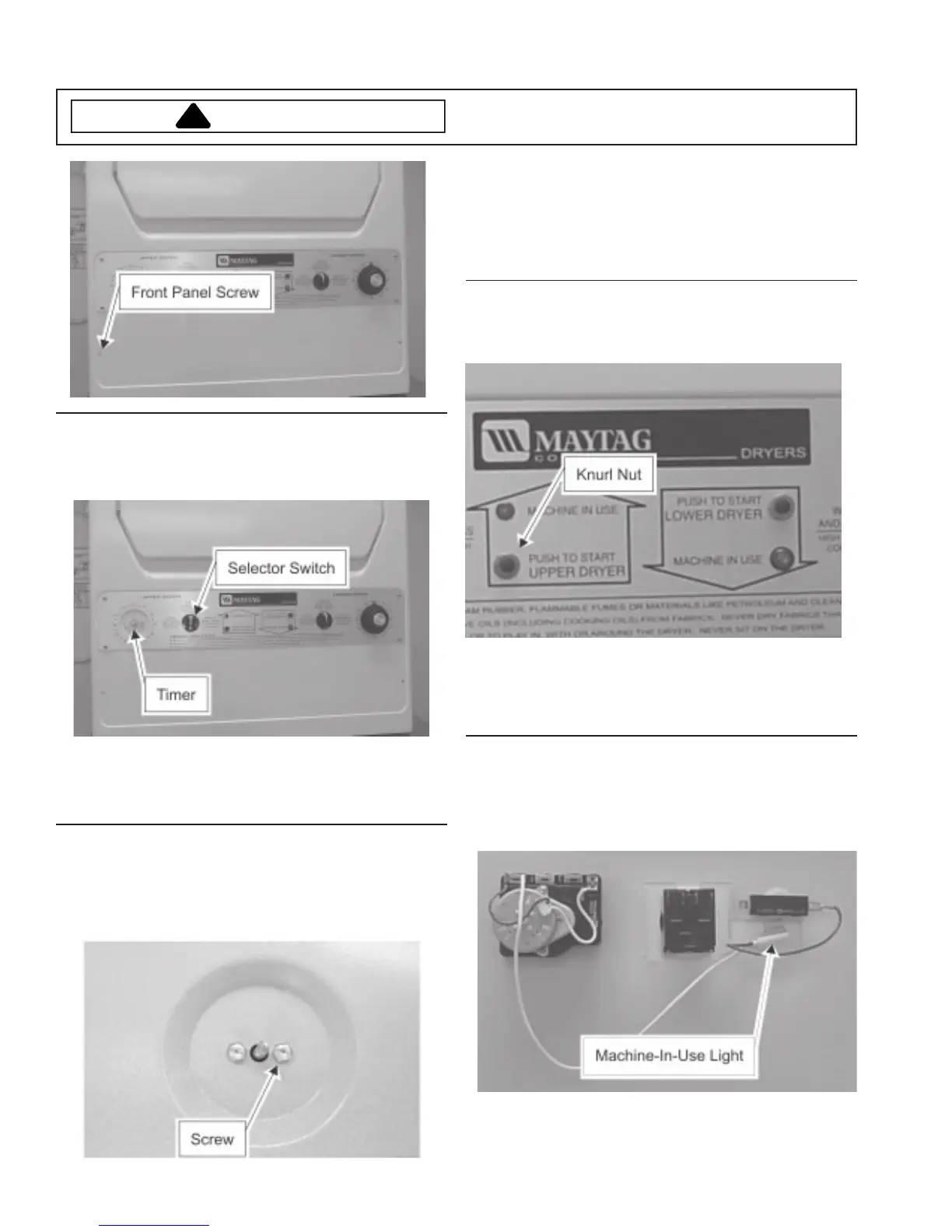

Disassembly Procedures
Machine-In-Use Light
1. Disconnect power supply to unit.
2. Remove Front Panel.
3. Slide light off lens.
4. Disconnect wire connection.
Push-To-Start Switch
1. Disconnect power supply to unit.
2. Unscrew knurl nut
3. Remove Front Panel.
4. Disconnect wires on switch.
5. Remove screws securing Front Panel.
6. Remove screws securing Selector Switch.
7. Disconnect wires on Selector Switch.
Note: Make note of wire location
Timer
1. Disconnect power supply to unit.
2. Remove Timer Knob.
3. Remove Front Panel Screws.
4. Remove two screws securing Timer to Front Panel.
5. Disconnect wires on Timer.
Note: Make note of wire locations.
Selector Switch
1. Disconnect power supply to unit.
2. Remove Timer Knobs (for both dryers)
3. Remove four screws securing Facia to Front Panel.
4. Remove Selector Switch Knob.
To Next Page
