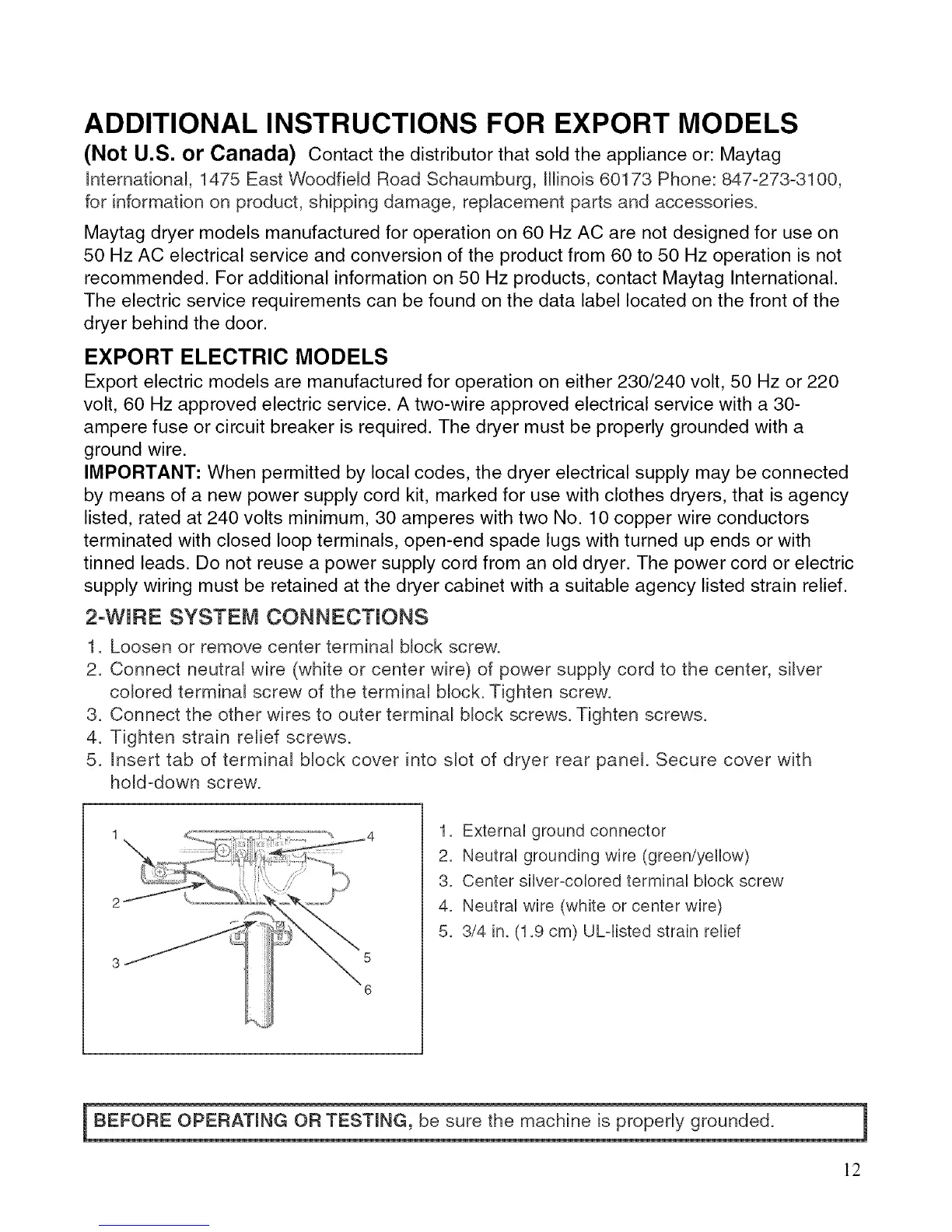

ADDITIONAL INSTRUCTIONS FOR EXPORT MODELS
(Not U.S. or Canada) Contact the distributor that sold the appliance or: Maytag
international, 1475 East Woodfie(d Road Schaumburg, IUJnoJs60173 Phone: 847-273=3100,
for information on product, shipping damage, replacement parts and accessories.
Maytag dryer models manufactured for operation on 60 Hz AC are not designed for use on
50 Hz AC electrical service and conversion of the product from 60 to 50 Hz operation is not
recommended. For additional information on 50 Hz products, contact Maytag International.
The electric service requirements can be found on the data label located on the front of the
dryer behind the door.
EXPORT ELECTRIC MODELS
Export electric models are manufactured for operation on either 230/240 volt, 50 Hz or 220
volt, 60 Hz approved electric service. A two-wire approved electrical service with a 30-
ampere fuse or circuit breaker is required. The dryer must be properly grounded with a
ground wire.
IMPORTANT: When permitted by local codes, the dryer electrical supply may be connected
by means of a new power supply cord kit, marked for use with clothes dryers, that is agency
listed, rated at 240 volts minimum, 30 amperes with two No. 10 copper wire conductors
terminated with closed loop terminals, open-end spade lugs with turned up ends or with
tinned leads. Do not reuse a power supply cord from an old dryer. The power cord or electric
supply wiring must be retained at the dryer cabinet with a suitable agency listed strain relief.
2-W(RE SYSTEM CONNECT(ONS
1. Loosen or remove center termina( block screw.
2. Connect neutral wire (white or center wire) of power supply cord to the center, silver
co(ored termina( screw of the terminal block. Tighten screw.
3. Connect the other wires to outer terminal block screws. Tighten screws.
4. Tighten strain relief screws.
5. insert tab of termina( block cover into slot of dryer rear panel. Secure cover with
hold=down screw.
1. External ground connector
2. Neutral grounding wire (green/yellow)
3. Center silver=colored term)hal block screw
4. Neutral wire (white or center wire)
5. 3/4 in. (1.9 cm) ULdisted strain relief
JBEFORE OPERAT(NG OR TEST(NG, be sure the machine is propedy grounded.
12
