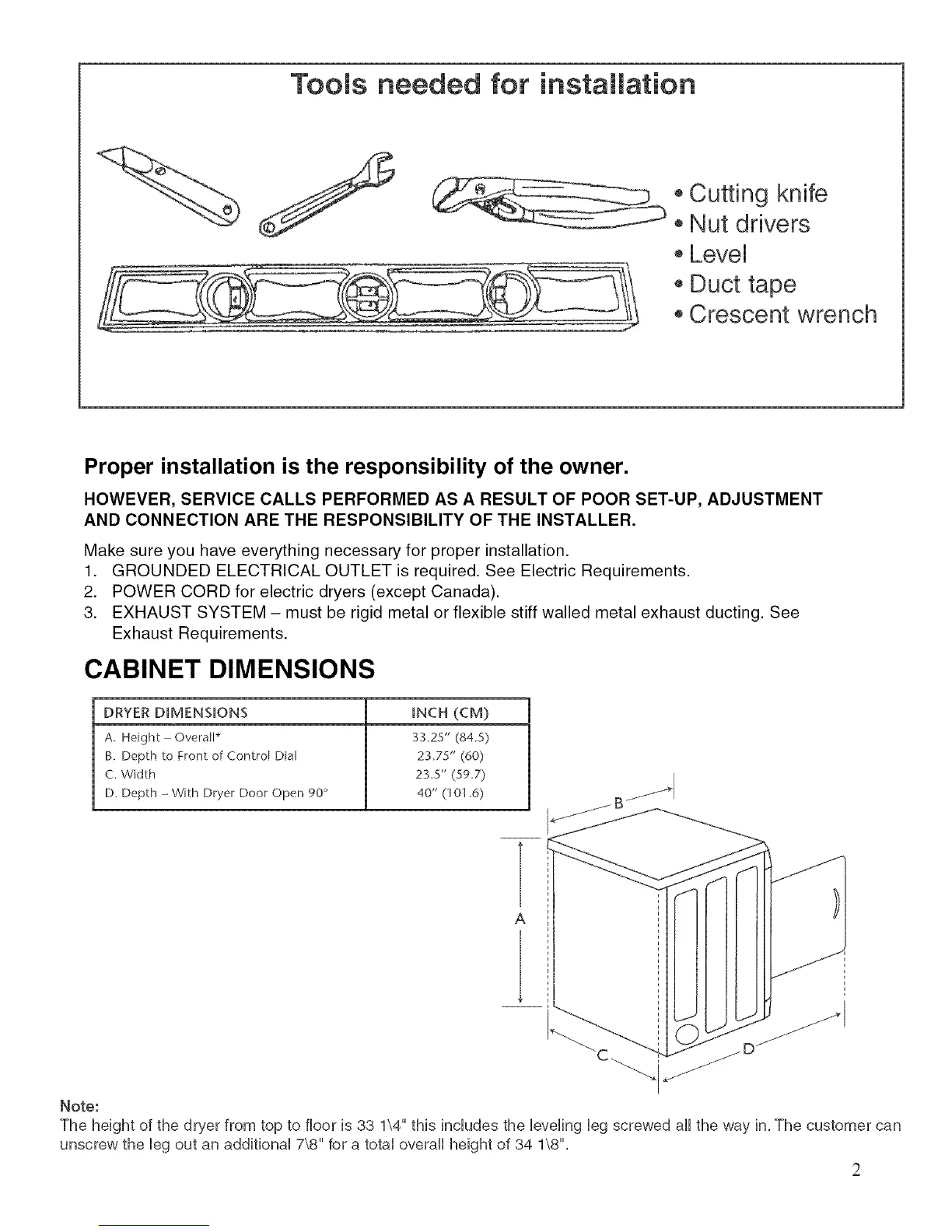

Tools needed for instamiation
Cutting knife
,,Nut drivers
Level
Duct tape
oCrescent wrench
Proper installation is the responsibility of the owner.
HOWEVER, SERVICE CALLS PERFORMED AS A RESULT OF POOR SET-UP, ADJUSTMENT
AND CONNECTION ARE THE RESPONSIBILITY OF THE INSTALLER.
Make sure you have everything necessary for proper installation.
1. GROUNDED ELECTRICAL OUTLET is required. See Electric Requirements.
2. POWER CORD for electric dryers (except Canada).
3. EXHAUST SYSTEM - must be rigid metal or flexible stiff walled metal exhaust ducting. See
Exhaust Requirements.
CABINET DIMENSIONS
DRYER DmMENSmONS raNCH (CM)
A. Height - Overall* 33_25" (84_5)
B. Depth to Front of ControF Dial 23,75" (dO)
C. Width 23.5" (59,7)
D. Depth - With Dryer Door Open 90 ° 40" (101 d)
A
Note:
The height of the dryer from top to floor is 33 1\4" this incHudes the HeveHngHegscrewed aHHthe way in, The customer can
unscrew the Hegout an additionaH 7\8" for a totaHoveraHHheight of 34 1\8",
