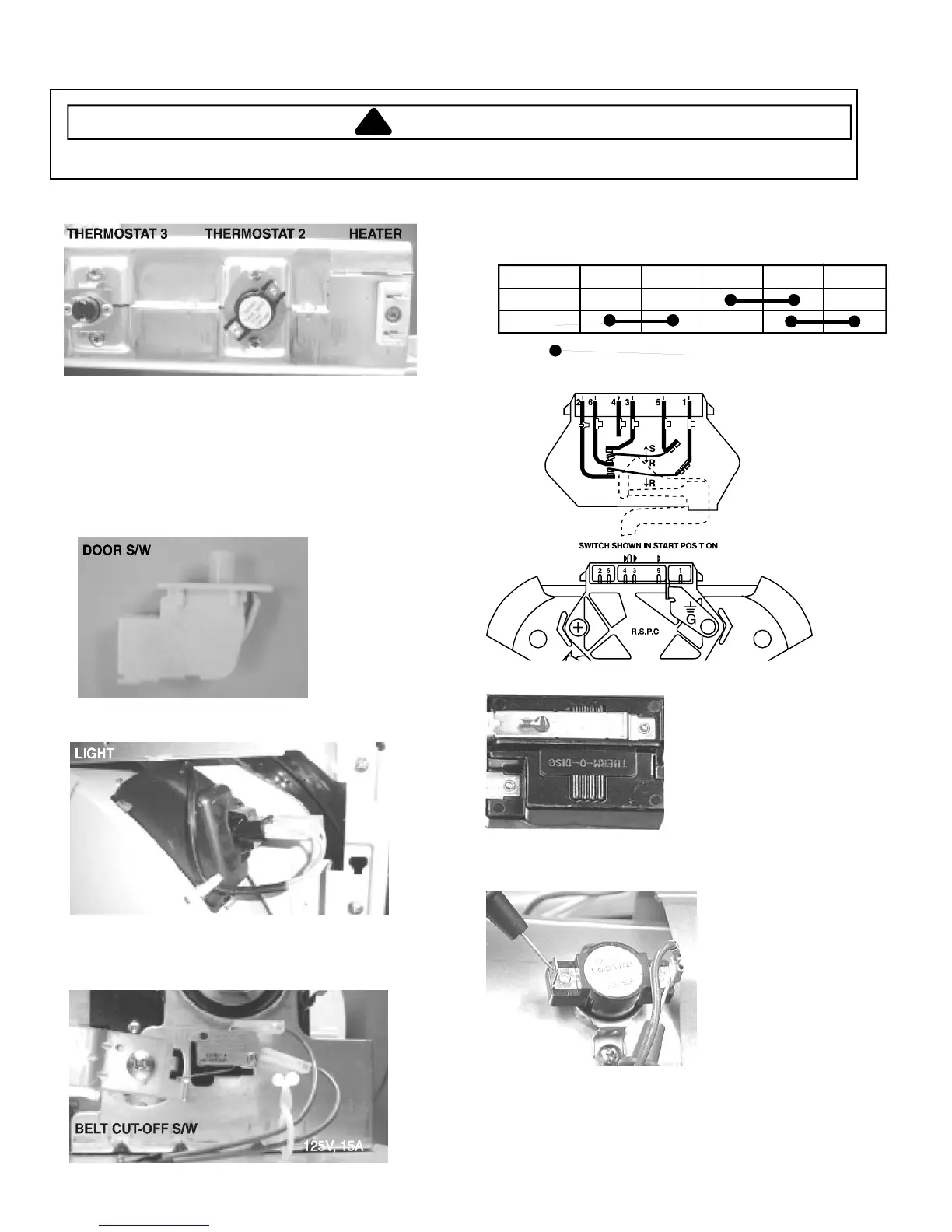

Troubleshooting Procedures
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer before servicing, unless
testing requires power.
16026881 September 2006
RPL 16026540
©2006 Maytag Services
6
125V/10A
120V/10W(E12)
Function 1M 2M 3M 5M 6M
Start
Run
= Contact closed
160 ° C ,25A
thermal cut-off
127/99 ° C ,25A
HI-limit
240V/5300W
Heating Element (Electric)
• Measure resistance of the following terminal
1) Door switch knob : open
Terminal : “COM” - “NC” (1-3) : ∞ Ω
Terminal : “COM” - “NO” (1-2) < 1Ω
2) Door switch push : On
Terminal : “COM” - “NC” (1-3) : ∞ Ω
Terminal : “COM” - “NO” (1-2) < 1Ω
Light resistance 80~100 Ω (Violet & gray)
• Belt Cut-off S/W
- Lever open : Resistance value < 1Ω
- Lever push : Resistance value
• Motor (Electronic & GAS)
Contacts
Centrifugal Switch (Motor)
Radiant Sensor (Gas)
Resistance across terminal indicates a closed switch
TH2 Hi-Limit (Gas)
Less than 1 ohm
