Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power and gas to oven before servicing,
unless testing requires power and/or gas.
18 16023415 ©2004 Maytag Services

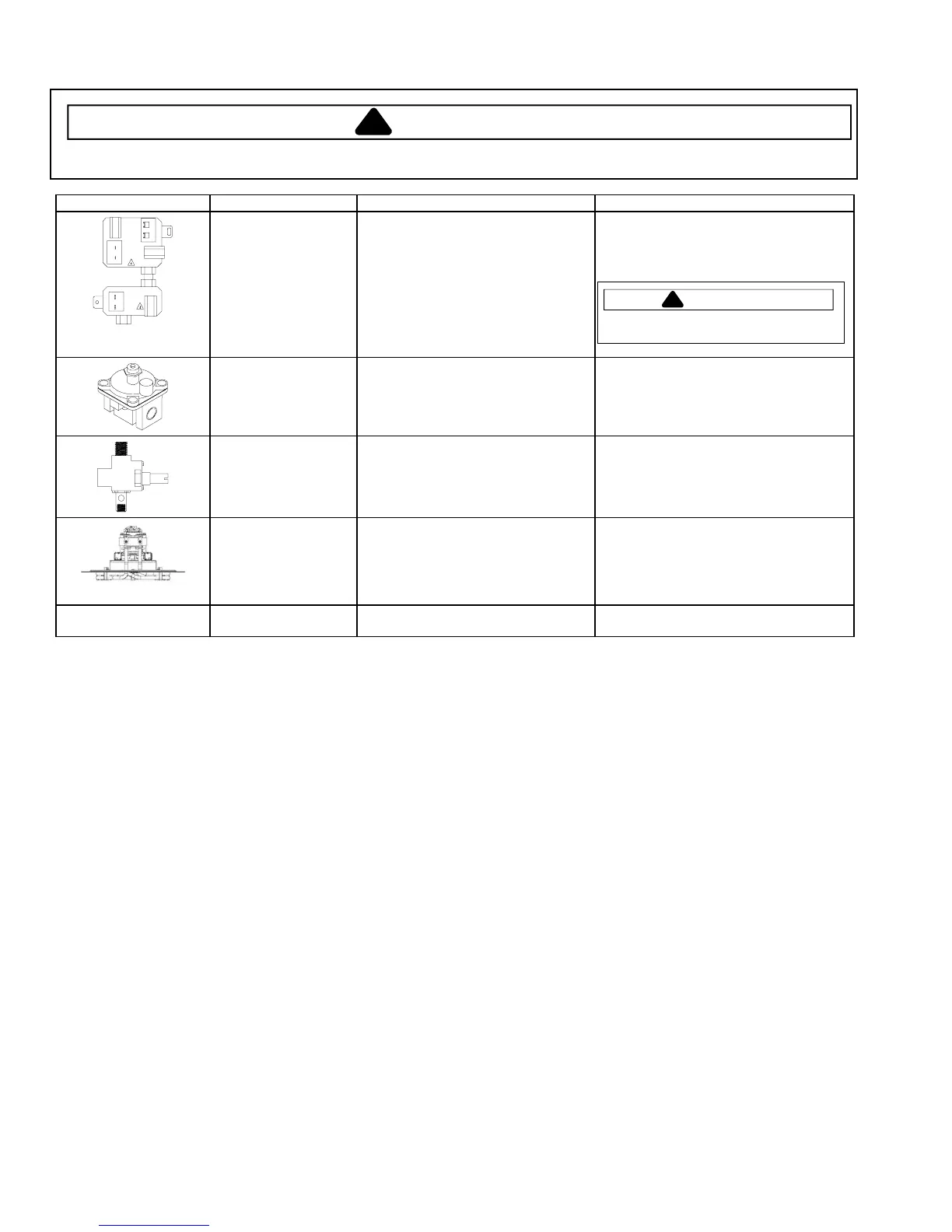

Illustration Component Test Procedure Results
Triple thermal valve Disconnect wiring to valve.
Measure resistance on upper and
lower bake circuit.................................
Measure resistance on broil circuit ......
Continuity, If not replace.
Continuity, If not replace.
WARNI NG
!
Do not attempt to open valve with
120 VAC.
Pressure regulator Verify gas pressure (W.C.P.).
If on LP service verify proper gas
supply conversion.
5" Natural
10" LP/propane
Shut off valve Check to verify gas supply is turned
on.
Located on surface valve manifold
near maintop upsweep.
Gas ON .... slot at 9 o’clock position
Gas OFF... slot at 12 o’clock position
Model MGR6875AD*
Convection Assembly
Convection Element
Convection Motor
Measure voltage..................................
Remove wires, check resistance.........
Check motor windings to ground .........
120 VAC.
Approximately 28 to 33 Ω.
No continuity.
Approx. 900 RPM.
Power cord 3-wire Verify resistance of wires to
terminals.
Continuity
