Contour Doors
Top Hinge
Bottom Hinge
Center Hinge
A
B
C
A
B
A
B

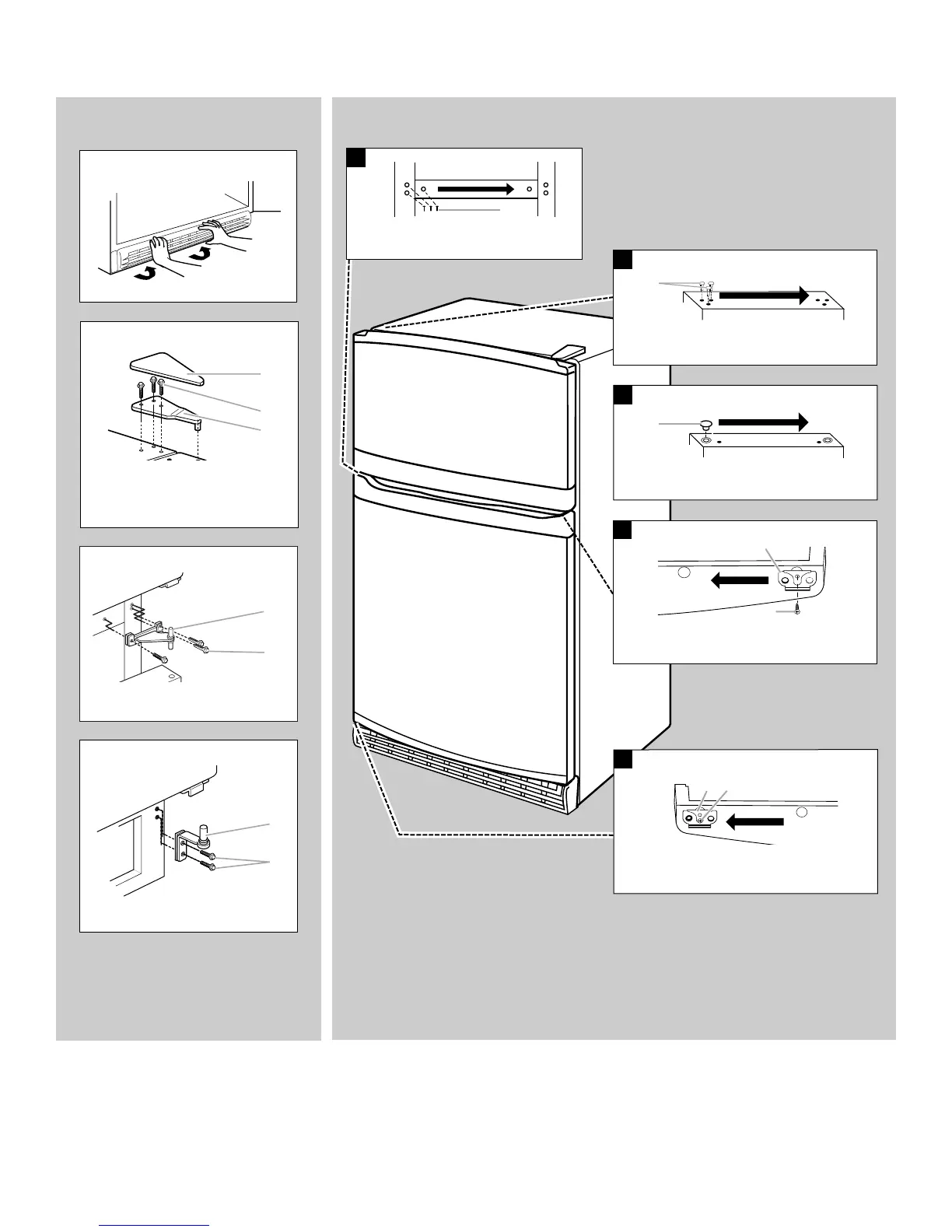

Door Removal &
Replacement
A. Center Hinge
B.
5
/ 16 " Hex-Head Hinge Screws
A. Bottom Hinge
B.
5
/ 16 " Hex-Head Hinge Screws
A. Top Hinge Cover
B.
5
/ 16 " Hex-Head Hinge Screws
C. Top Hinge
5
A. Door Stop
B. Door Stop Screw
B
A
Reinstallation of Door Stops
Base Grille
Door Swing Reversal (optional)
4
A
A.
5
/ 16 " Hex-Head Hinge Screws
1
A
2
A. Door Stop
B. Door Stop Screw
A
Removal of Door Stops
B
A. Cabinet Hinge Hole Plugs
A
A. Door Hinge Hole Plug
3
A
