W10162408
8

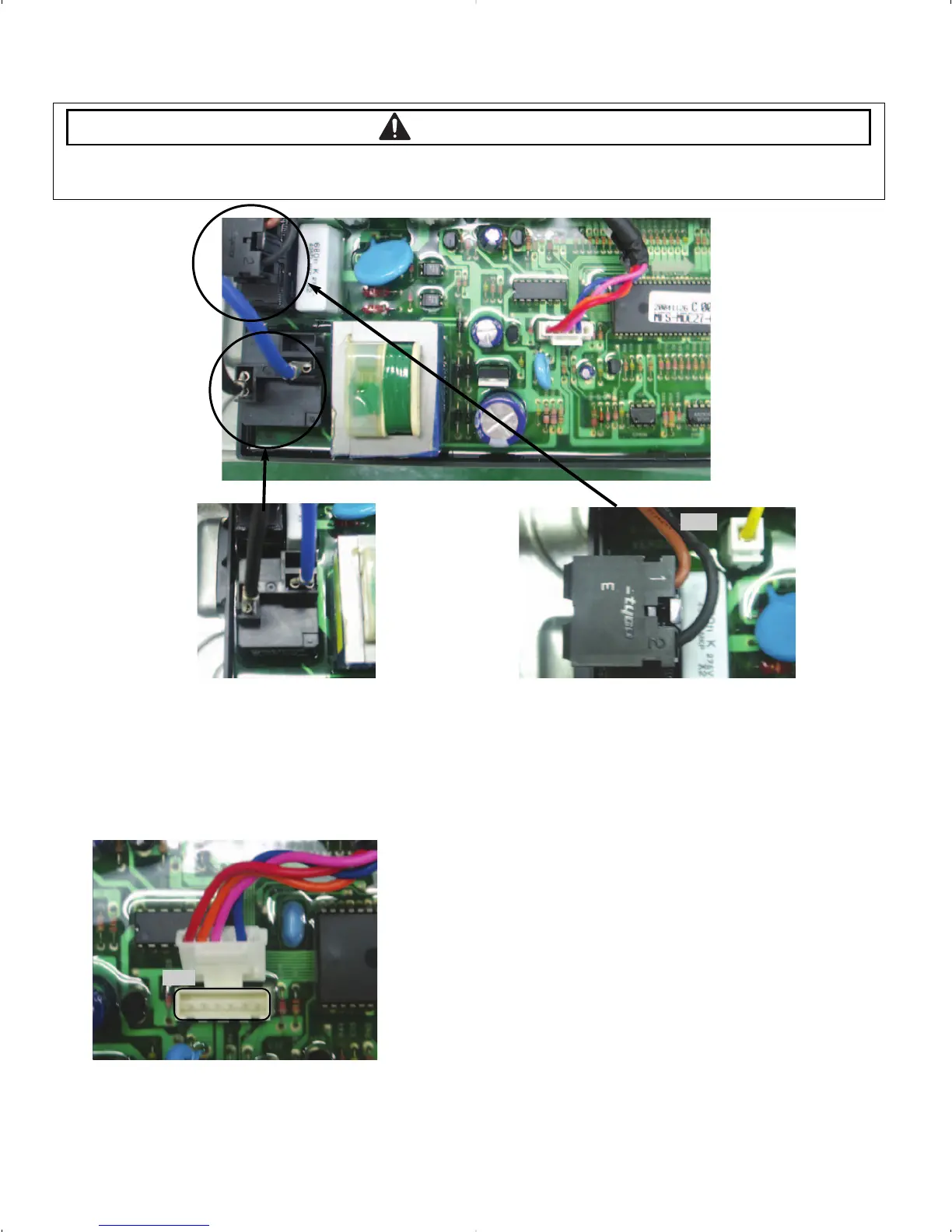

Component Testing Procedures
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before servicing, unless
testing requires power.
240VAC
Heater Input
Blue & Black wire on
Heater Relay
Sensor Bars - Disconnect harness and test Pink
wire Pin 4 to Orange wire Pin 5.
Approx ∞ Ω without laundry
Approx 190 Ω ± 10% with wet clothes
Cycling Thermostat - Disconnect harness and
test Blue wire Pin 2 to Red wire Pin 6.
Approx 10 K Ω at 25 °C/77 °F
120VAC
Motor input
Brown 1P on Motor relay
& White wire
Sensor Bars & temperature sensor check
61
CN3
CN6
MOTOR
HEATER
To Next Page
