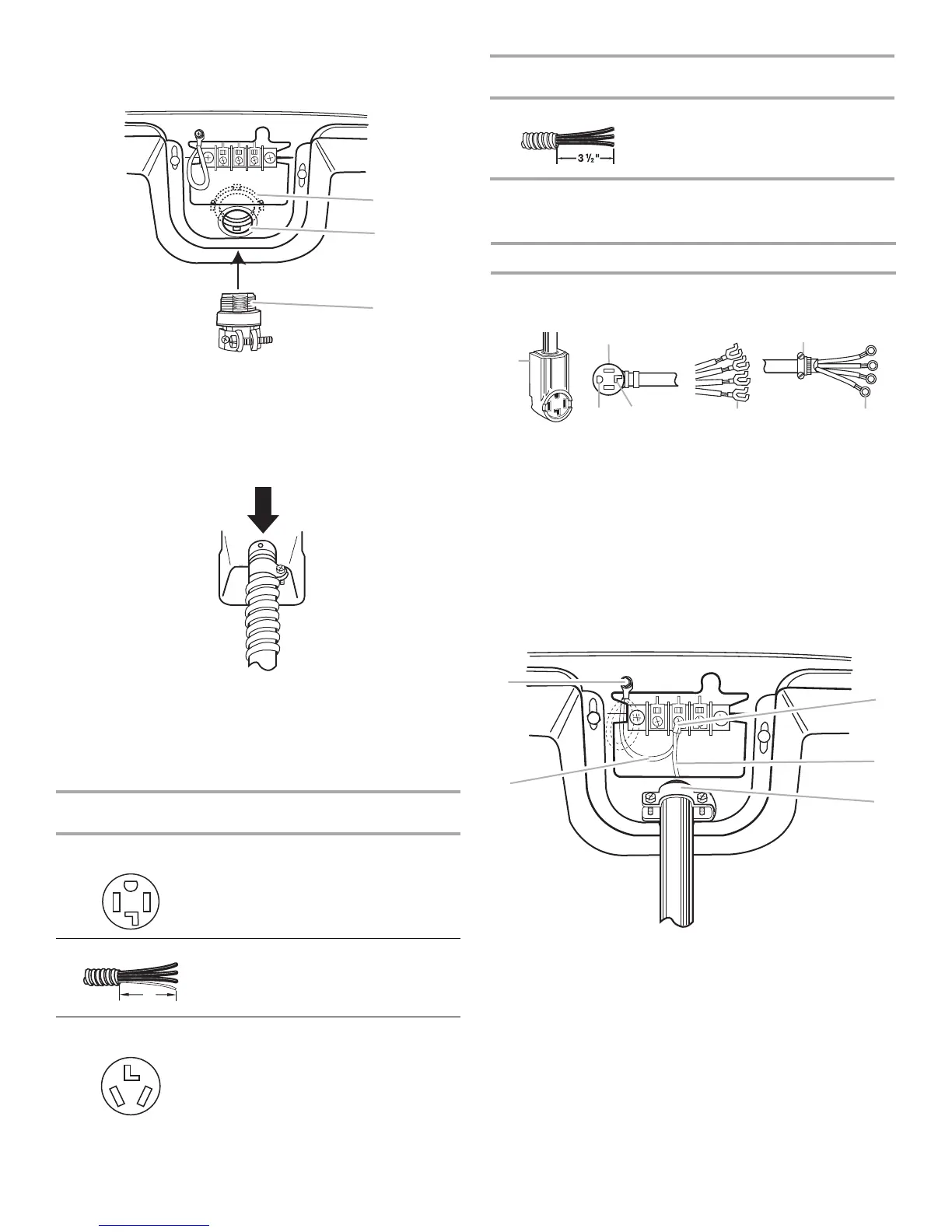

block opening, screw removable conduit connector onto
strain relief threads.
B
C
A
A. Removable conduit connector
B. Hole below terminal block opening
C. Strain relief threads
■ Put direct wire cable through strain relief. Strain relief should
have a tight fit with dryer cabinet and be in a horizontal
position. Tighten strain relief screw against direct wire cable.
4. Now complete installation following instructions for your type
of electrical connection:
4-wire (recommended)
3-wire (if 4-wir
e is not available)
If your home has: And you will be
c
onnecting to:
Go to Section
4-wire receptacle
(NEMA Type 14-30R)
A UL listed,
120/240-volt
minimum,
30-amp, dryer
power supply
cor
d*
4-wire connection:
Power supply cord
4-wire direct
(127 mm)
5"
A fused
disconnect or
circuit breaker
box*
4-wire connection:
Direct Wire
3-wire receptacle
(NEMA type 10-30R)
A UL listed,
120/240-volt
minimum,
30-amp, dryer
power supply
cor
d*
3-wire connection:
Power supply cord
3-wire direct
(89 mm)
A fused
disconnect or
circuit breaker
box*
3-wire connection:
Direct Wire
Electrical Connection Options
*If local codes do not permit connection of a cabinet-ground
condu
ctor to the neutral wire, see “Optional 3-wire connection”
section.
4-wire connection: Power supply cord
IMPORTANT: A 4-wire connection is required for mobile homes and
where local codes do not permit use of 3-wire connections.
A
B
C
D
E
F
G
A. 4-wire receptacle (NEMA type 14-30R)
B. 4-prong plug
C. Ground prong
D. Neutral prong
E. Spade terminals with upturned ends
F. 3/4" (19 mm) UL listed strain relief
G. Ring terminals
1. Remove center, silver-colored terminal block screw.
2. Remove neut
ral ground wire from external ground conductor
screw. Connect neutral ground wire and the neutral wire (white or
center wire) of power supply cord under center, silver-colored
terminal block screw. Tighten screw.
B
A
D
E
C
A. Neutral ground wire.
B. Center, silver-colored terminal block screw
C. External ground conductor screw -
Dotted line shows position
of NEUTRAL ground wire before being moved to center silver-
colored terminal block screw
D. Neutral wire (white or center wire)
E. 3/4" (19 mm) UL listed strain relief
If your home has: And you will be
connecting to:
Go to Section
