Mazda 2 2014 - Fuse Block Engine Compartment

Black plate (286,1)
qFuse Panel Description

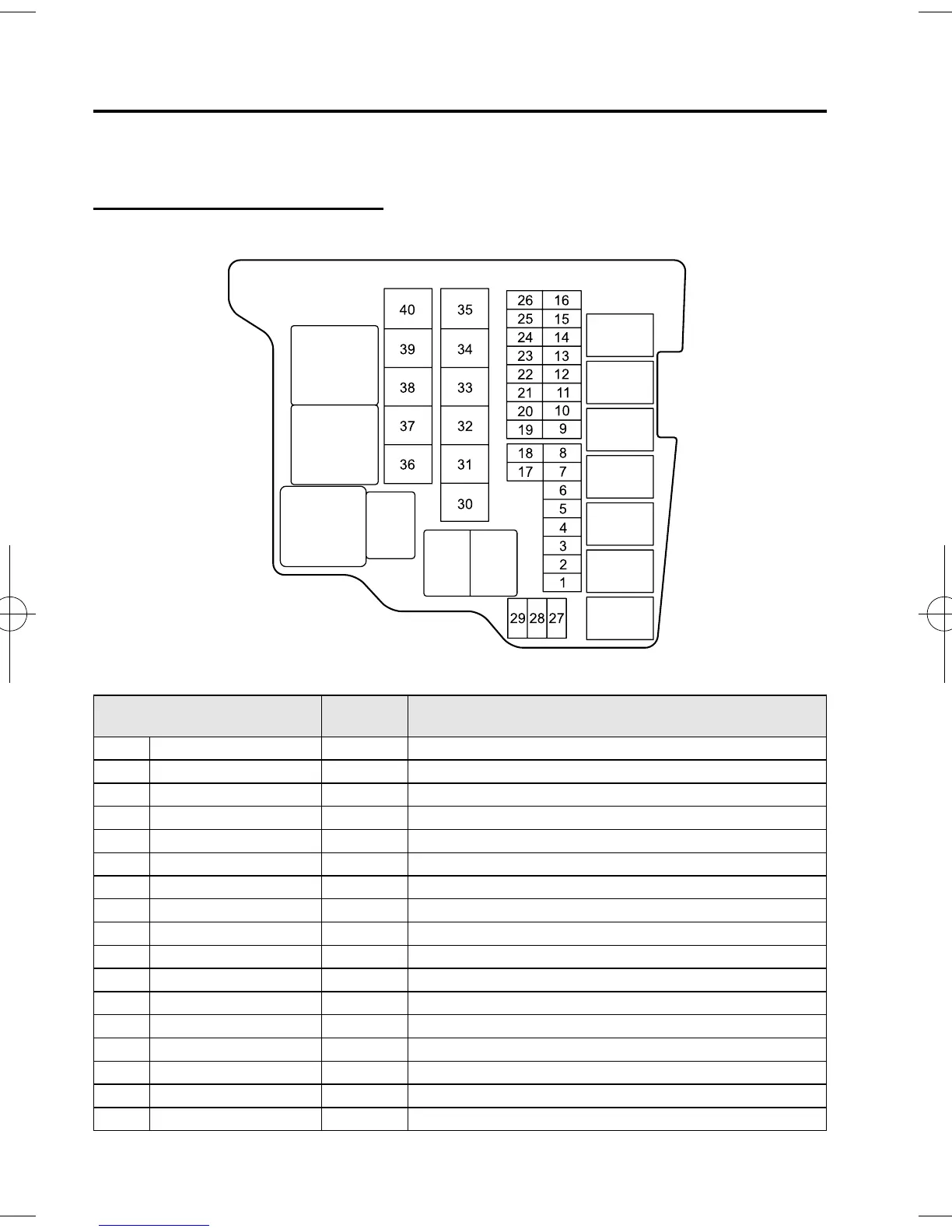

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 FUEL HEAT ――
2 FUEL PUMP 15 A Fuel pump
3 F.FOG 15 A Fog lights
í
4 P/W 20 A Power windows
5 HORN 10 A Horn
6 EGI 10 A Engine control system
7 DSC-P 30 A DSC
8 DSC-V 20 A DSC
9 MAG 7.5 A Air conditioner
10 TAIL 15 A Taillights, Parking lights, License plate lights
11 STOP 10 A Brake lights
12 SWS 7.5 A Air bag
13 R.DEF 20 A Rear window defroster
14 HAZARD 10 A Hazard warning flashers, Turn signal lights
15 D/L 20 A Power door locks
16 EOP ――
17 ENG BAR 15 A Engine control system
8-42
Maintenance and Care
í
Some models.
