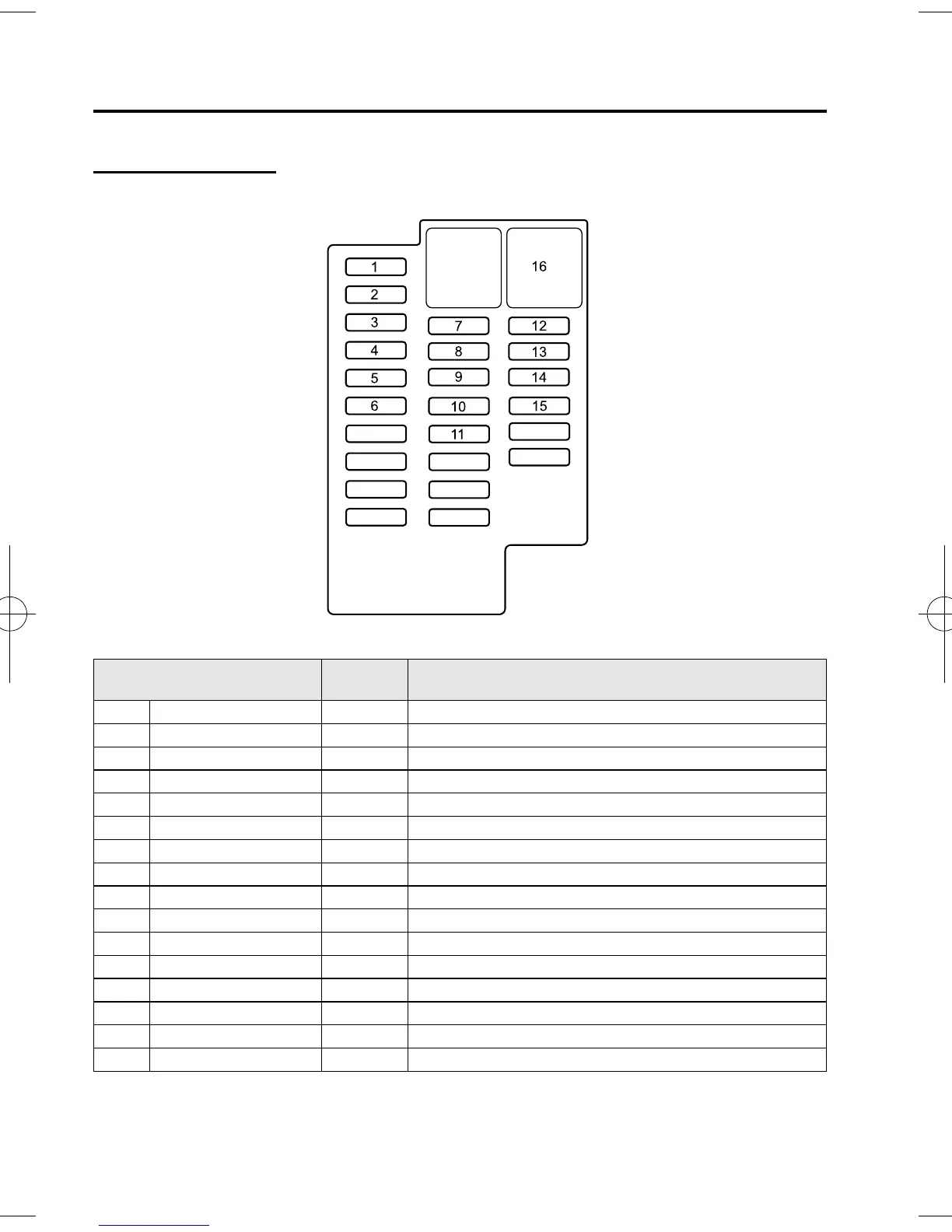

Fuse block (Left side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 TCM ――
2 ILLUMI 7.5 A Dashboard illumination
3 CIGAR 15 A Accessory Socket
4 MIRROR 7.5 A Power control mirror
5 M.DEF 7.5 A Mirror defroster
í
6 S.WARM ――
7 A/C 7.5 A Air conditioner
8 F.WIP 20 A Front window wiper and washer
9 R.WIP 10 A Rear window wiper and washer
10 STARTER ――
11 METER 2 ――
12 ENG 10 A Engine control system
13 METER 10 A Instrument cluster
14 SAS 10 A Air bag
15 AUDIO 3 ――
16 P/W 30 A Power windows
8-44
Maintenance and Care
í
Some models.
