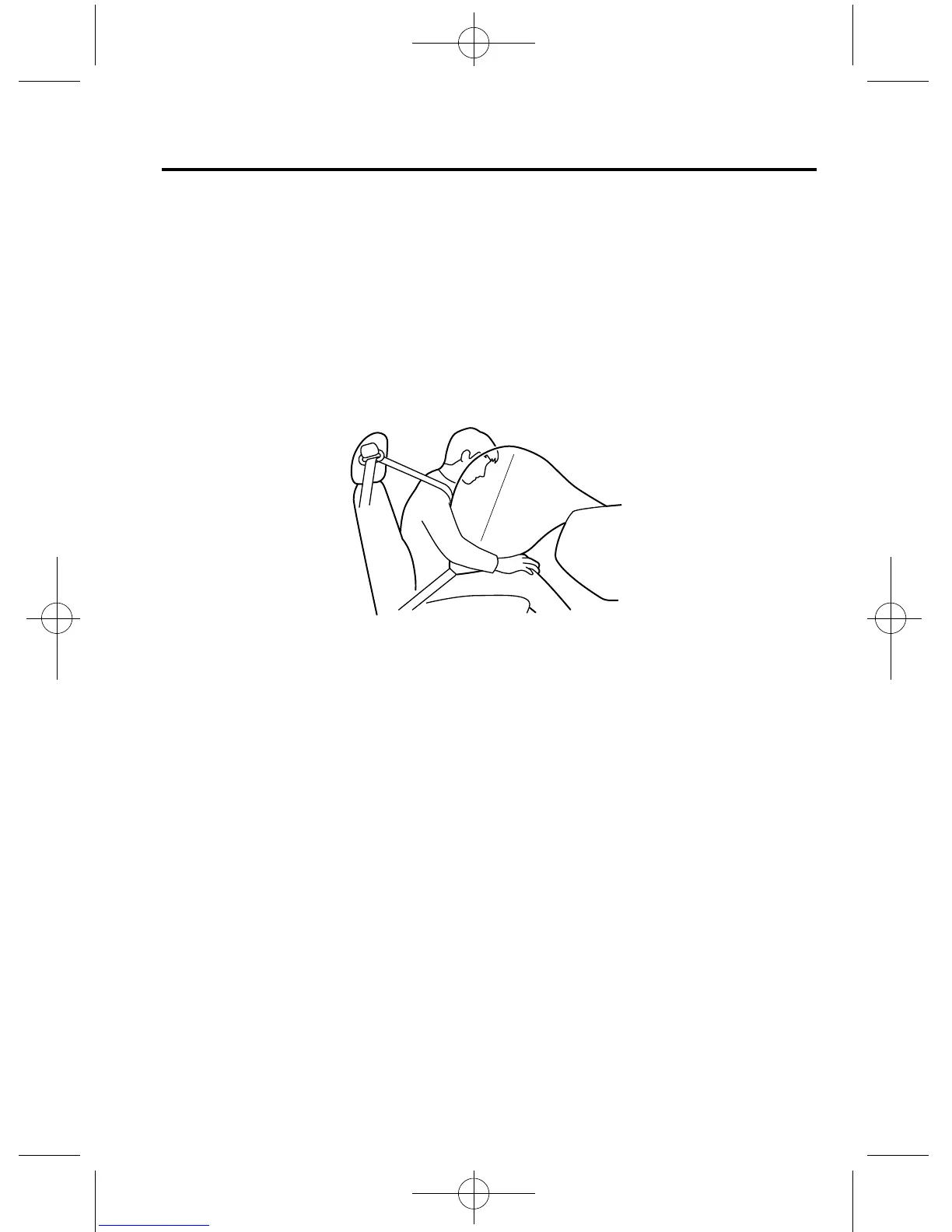

qFront Passenger Air Bag
The front passenger air bag is mounted in the front passenger dashboard.
The inflation mechanism for the front passenger air bag is the same as the drive r's air bag,
as mentioned above.
For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria”
(page 2-47).
In addition, the front passenger air bag is designed to only deploy in accordance with the
total seated weight on the front passenger seat. For details, refer to the driver and front
passenger occupant classification system (page 2-50).
Essential Safety Equipment
SRS Air Bags
2-43
