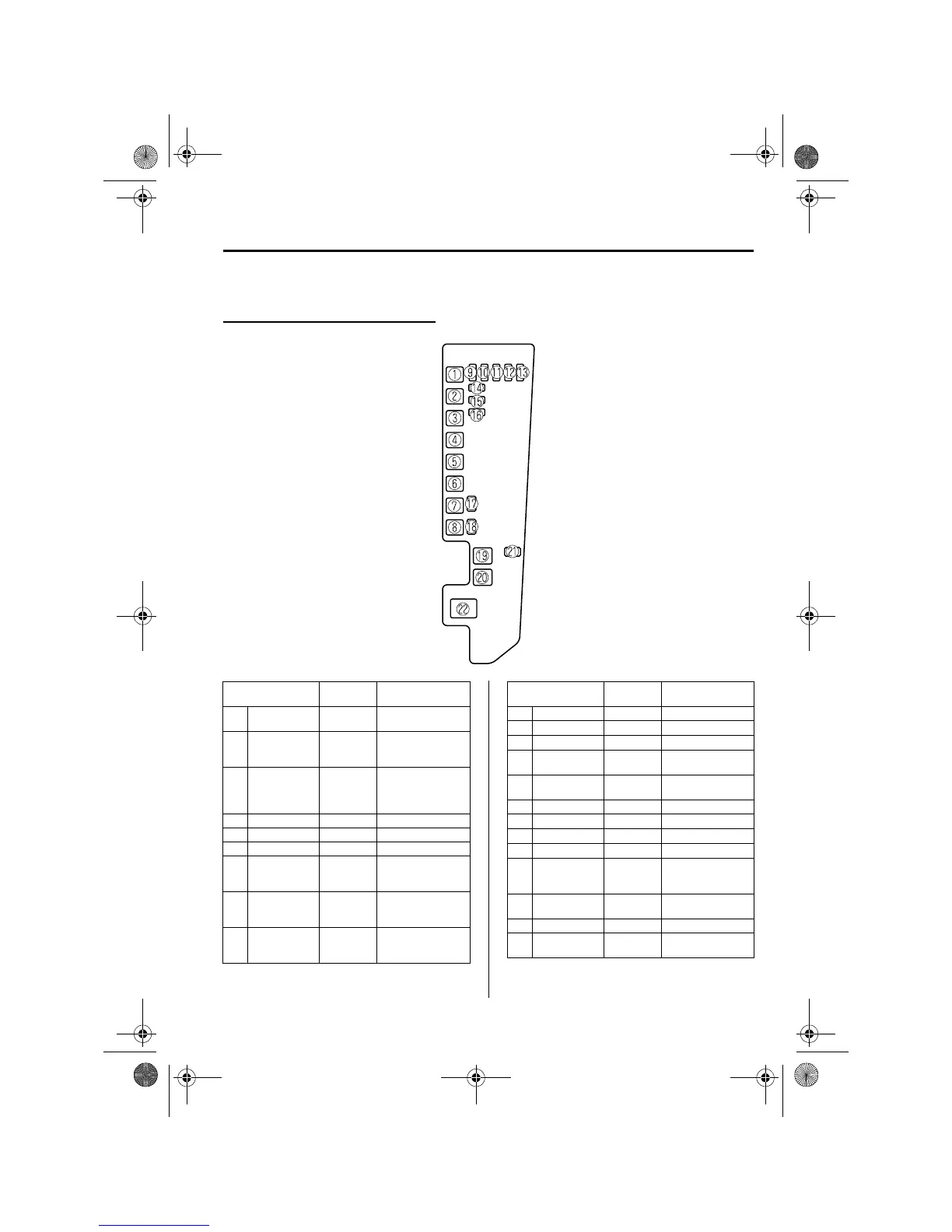

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
1 DEFOG 40A
Rear window
defroster
2 BTN 60A
STOP, HAZARD,
ROOM, D.LOCK
and DRL fuses
3 ABS 60A
Antilock brake
system,
For protection of
various circuits
4 FAN1 30A Cooling fan
5 FAN2 30A Cooling fan
6 HEATER 40A Heater
7 R.HEATER 30A
Rear heater,
For protection of
various circuits
8 IG KEY2 40A
A/C, P.WIND,
SUN ROOF and
R.WIP fuses
9 A/C 10A
Air conditioner,
For protection of
various circuits
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
10 TAIL 15A Taillights
11
A/C PWR
15A Inverter
12
HORN
15A Horn
13
FOG 15A
For protection of
various circuits
14
EEC 5A
For protection of
various circuits
15
HEAD L 15A
Headlight-left
16
HEAD R 15A
Headlight-right
17
HID L 20A
—
18
HID R 20A
—
19 IG KEY1 60A
METER,
ENGINE and
WIPER fuses
20 EGI INJ 30A
For protection of
various circuits
21 FUEL PUMP 20A Fuel pump
22 MAIN 120A
For protection of
all circuits
