To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating

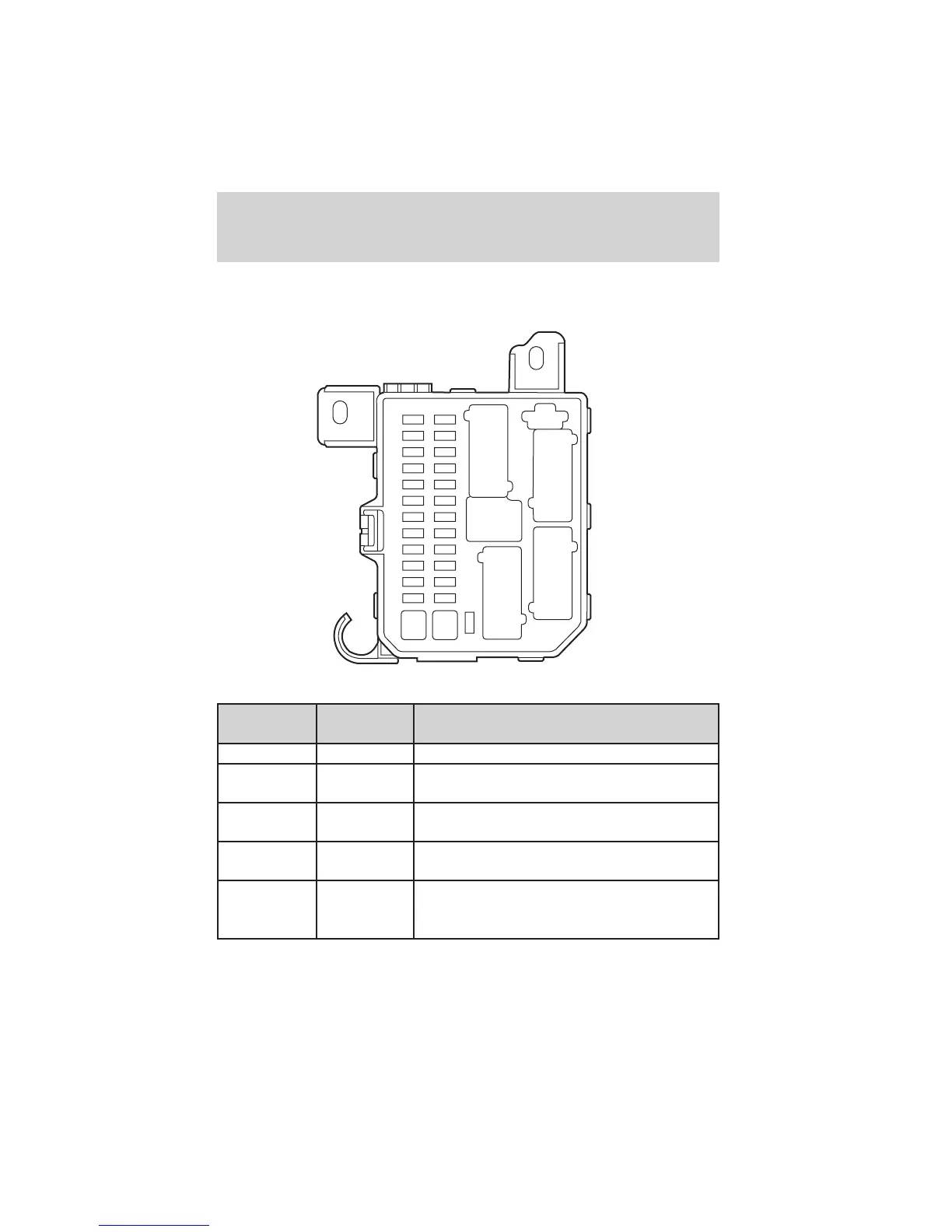

Passenger Compartment Fuse Panel
Description
1 5A Canister vent control solenoid
2 5A Blower relay (coil), Pressure switch to
PCM
3 10A Rear wiper motor, Rear washer motor,
Rear wiper relay (coil)
4 10A Four-wheel drive control module, Cluster
(restraints control warning)
5 5A ABS unit (EVAC & FILL), ASC unit,
Restraints Control Module (RCM), ASC
main SW to ASC unit, Clock spring switch
ACC
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27
