Black plate (240,1)

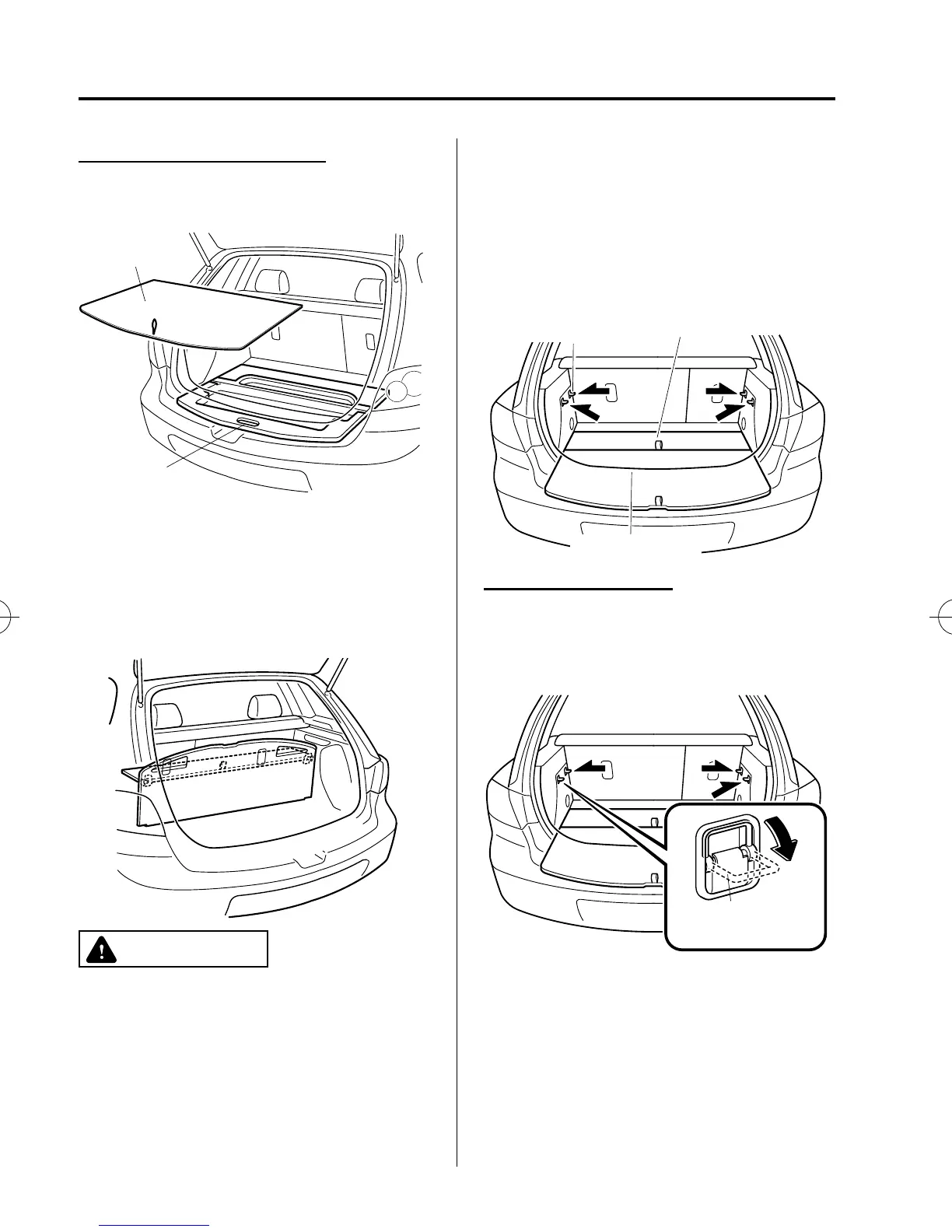

Without flexible floor board
To use the cargo sub-compartment,
remove or lift the trunk board.
Cargo sub-
compartment
Trunk board
qFlexible Floor Board (5 Door)
í
The luggage compartment can be
separated vertically and/or horizontally,
using the trunk board and the trunk board
loops.
CAUTION
Make sure the trunk board is firmly
secured when it is fitted into the
trunk board loops. If it is not firmly
secured, it could unexpectedly
disengage causing damage to the
trunk board loops or the trunk
board.
NOTE
The trunk board loops can be used in the same
way as the cargo securing loops. The tensile
strength of the loops is 147 N (15 kgf, 33 lbf).
Do not apply excessive force to the trunk board
loops as it will damage them (page 6-61).
Compartment
divider loops
Rear trunk board
Front trunk board
To separate vertically
Use the rear trunk board to separate the
luggage compartment vertically.
1. Pull the trunk board loops out.
Compartment
divider loop
6-62
Interior Comfort
í
Some models.
Interior Equipment
Mazda3_8X41-EA-07F_Edition1 Page240
Wednesday, April 25 2007 1:6 PM
Form No.8X41-EA-07F
