qFuse Panel Description

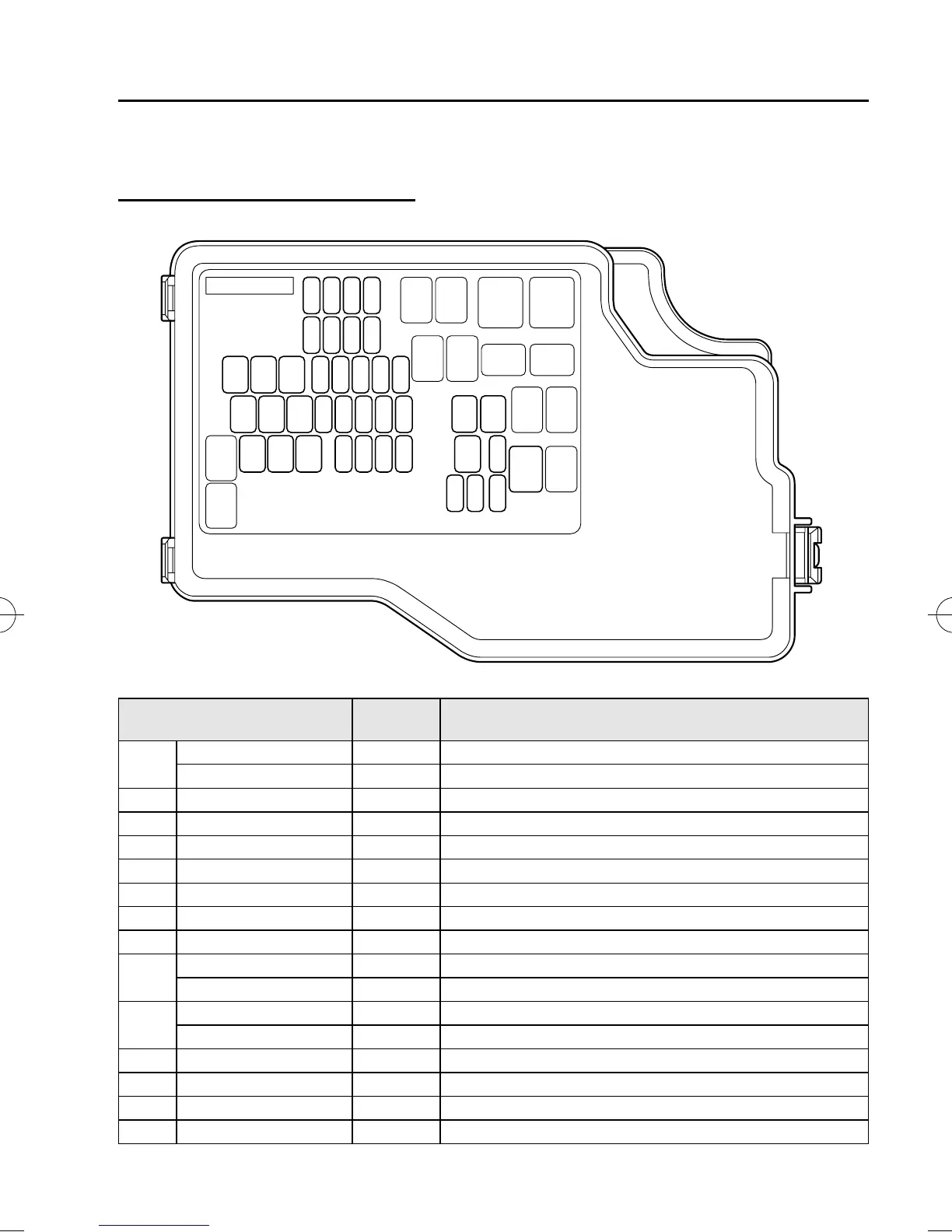

Fuse block (Engine compartment)
32 33 34 35
36 37 38 39
541 2 3 678
1312 14 15 16
22
11109
212019
23 24 25
29 30 31
27
28
26
17 18
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1
DCDC
*1
――
FAN 2
*2
40 A Cooling fan
í
2 ENG MAIN 40 A Engine control system
3 BTN 1 50 A For protection of various circuits
4 A/C MAG 7.5 A Air conditioner
5 H/L HI 20 A Headlight high beam
6 FOG 15 A Fog lights
í
7 H/L WASH ――
8 SUNROOF 15 A Moonroof
í
9
HEATER
*1
40 A Air conditioner
F.DEF RH
*2
――
10
EVVT
*1
20 A Engine control system
F.DEF LH
*2
――
11 FAN 1 40 A Cooling fan
í
12 ROOM 15 A Overhead lights
13 TCM 15 A Transaxle control system
í
14 DSC 20 A Dynamic Stability Control system
í
Maintenance and Care
Owner Maintenance
8-59
í
Some models.
