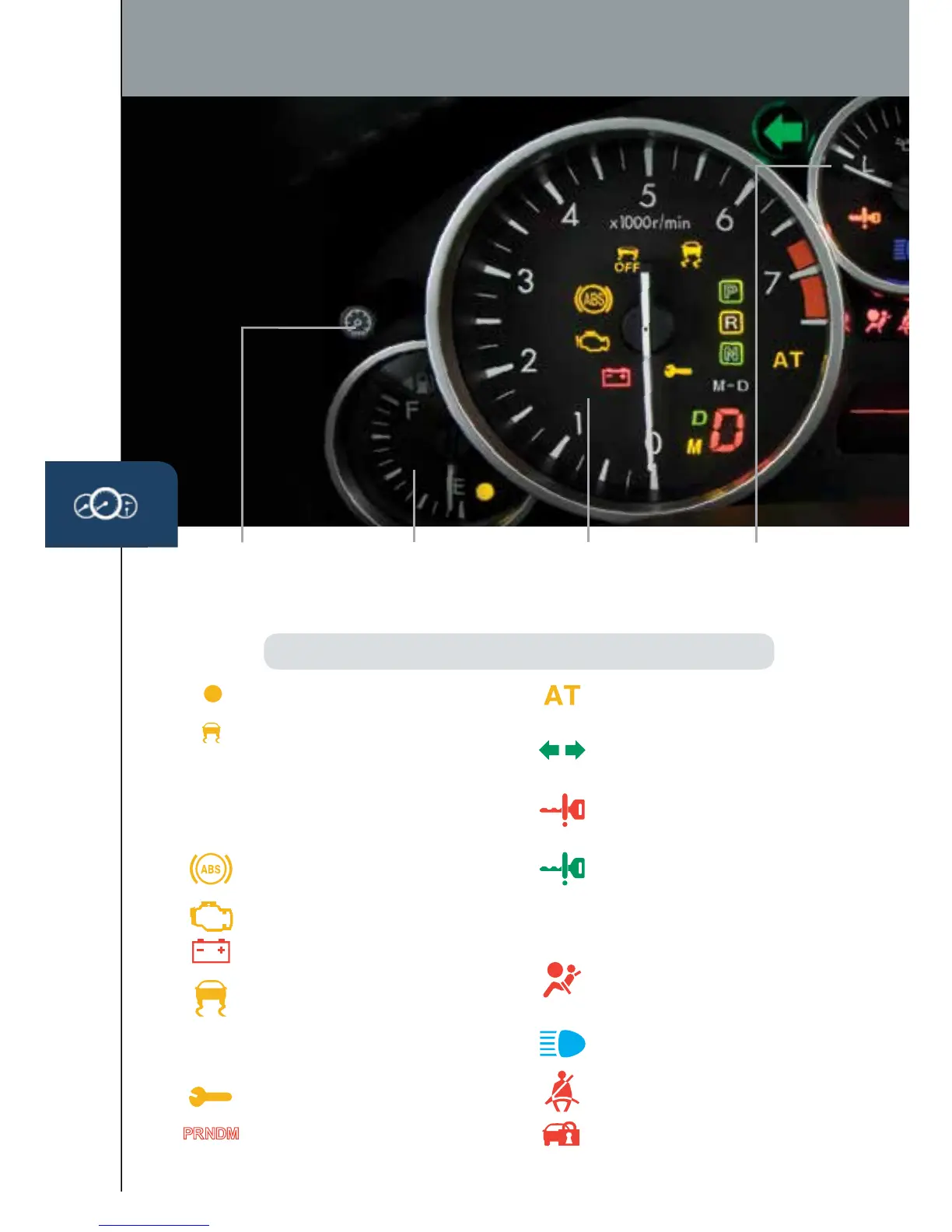

Instrument Cluster
7
TACHOMETER
FUEL GAUGE
DASHBOARD
ILLUMINATION
1
ENGINE OIL
PRESSURE GAUGE
Low Fuel Level
OFF
Dynamic Stability Control
(DSC)/Traction Control
System (TCS) Off
Indicator Light
DSCOFFswitchpushedand
TCS/DSCturnedoff.
ABS (Antilock Brake
System) Malfunction
Check Engine Light
Charging System Malfunction
Traction Control System
(TCS)/Dynamic Stability
Control (DSC)
On:TCS/DSCmalfunction
Flashing:TCS/DSCoperating
Malfunction Warning Light
Shift Lever Position Indicator
Automatic Transmission
Malfunction
Turn Signals/Hazard
Warning Indicator Lights
Key Warning RED (p.2)
Advancedkeynotdetectedor
advancedkeybatteryisdead.
Key Detected (engine ready
to start) GREEN
(p.2)
On:Advancedkeydetected;engine
isreadytostart.
Flashing:Advancedkeybatteryislow.
Air Bag/Front Seat Belt
Pretensioner System
Malfunction
Headlight High Beams On (p.9)
Seat Belt
Unbuckled/Malfunction
Security Indicator Light
GLOSSARY OF WARNING AND INDICATOR LIGHTS
NOTE: SeeOwner’sManualformoredetailsandexplanations.
