Mazda 2016 CX3 - Fuse Block Engine Compartment; Fuse Panel Description

*Some models.
6 – 55
Maintenance and Care
Owner Maintenance
Fuse Panel Description

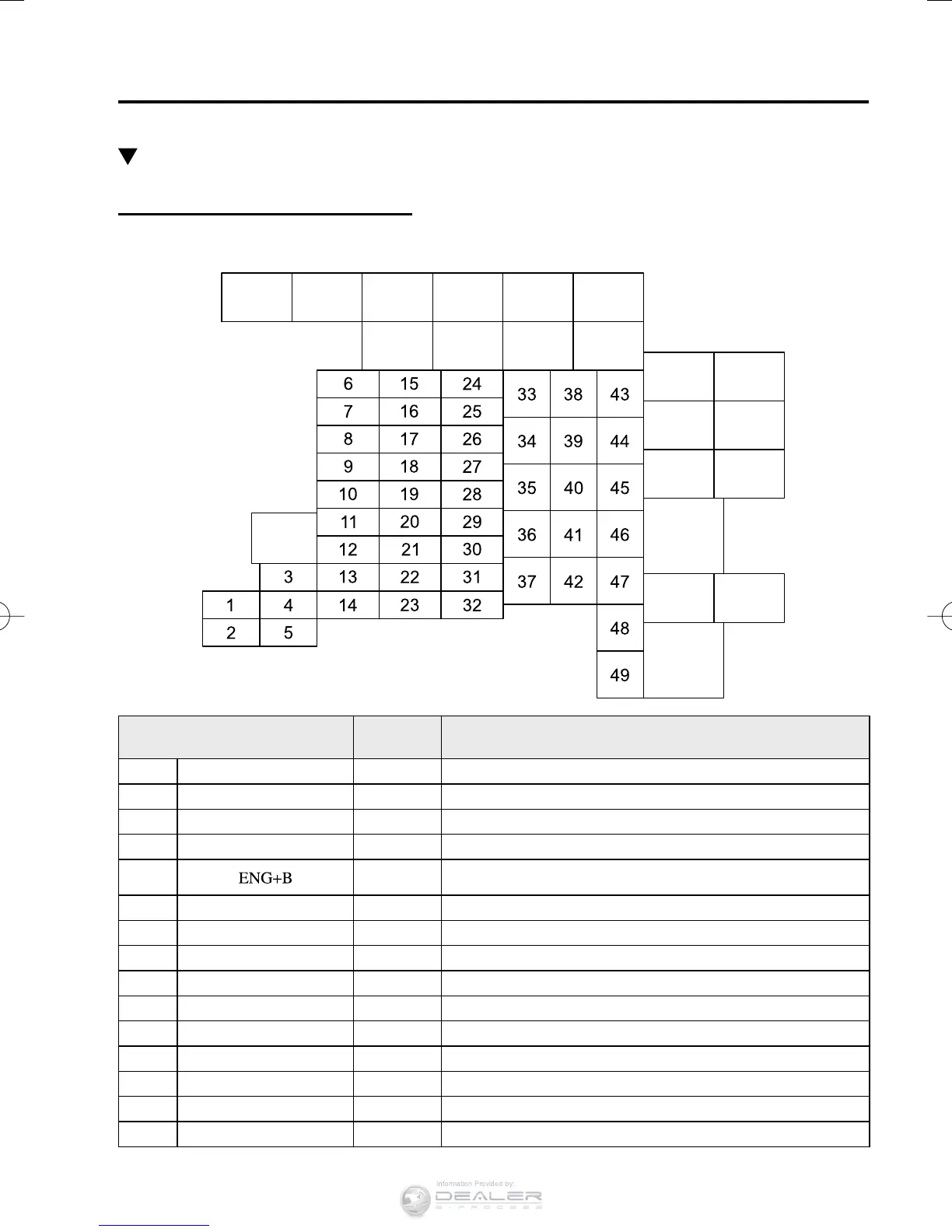

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 C/U IG1 15 A For protection of various circuits
2 ENGINE IG1 7.5 A Engine control system
3 SUNROOF 10 A Moonroof
*
4 INTERIOR 15 A Overhead light
5
7.5 A Engine control system
6 AUDIO2 15 A Audio system
7 METER1 10 A Instrument cluster
8 SRS1 7.5 A Air bag
9 METER2 7.5 A Instrument cluster
*
10 RADIO 7.5 A Audio system
11 ENGINE3 15 A Engine control system
12 ENGINE1 15 A Engine control system
13 ENGINE2 15 A Engine control system
14 AUDIO1 25 A Audio system
15 A/C MAG 7.5 A Air conditioner
*
