When Driving
Instrument Cluster and Display
Indicator Lights
These lights turn on or fl ash to notify the user of the system operation status or a system
malfunction.

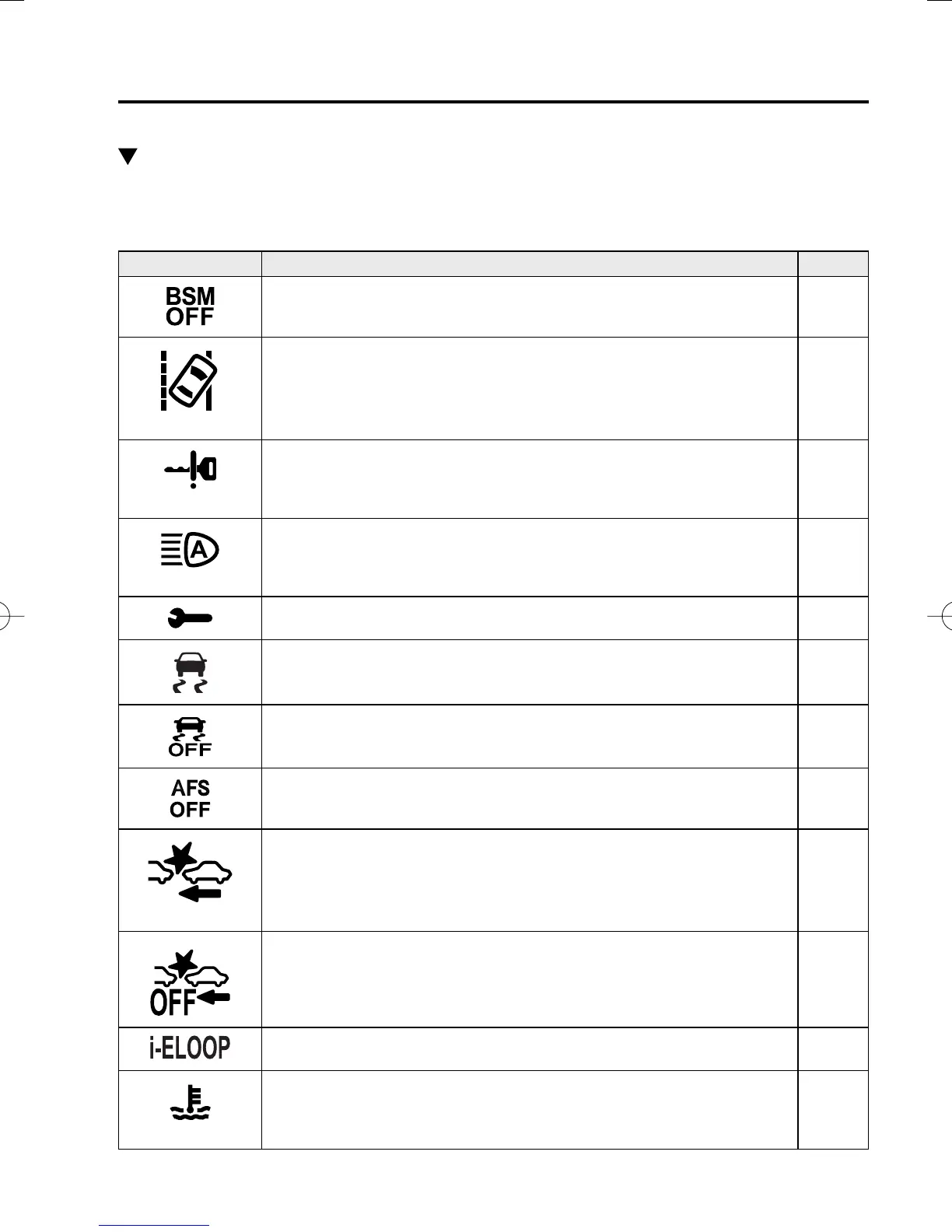

Signal Indicator Lights Page
*
BSM OFF Indicator Light 4-113
(Green)
*
Lane Departure Warning System (LDWS) Indicator Light 4-121
(Green)
KEY Indicator Light 3-9
(Green)
*
High Beam Control System (HBC) Indicator Light 4-49
Wrench Indicator Light
*1
4-25
TCS/DSC Indicator Light
*1
4-79 ,
4-80
DSC OFF Indicator Light
*1
4-81
*
AFS OFF Indicator Light
*1
4-45
(Red)
*
Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS)
Indicator Light
*1
4-117 ,
4-77
*
Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS) OFF
Indicator Light
*1
4-77
*
i-ELOOP Indicator Light 4-84
(Blue)
Low Engine Coolant Temperature Indicator Light 4-25
