qFuse Panel Description

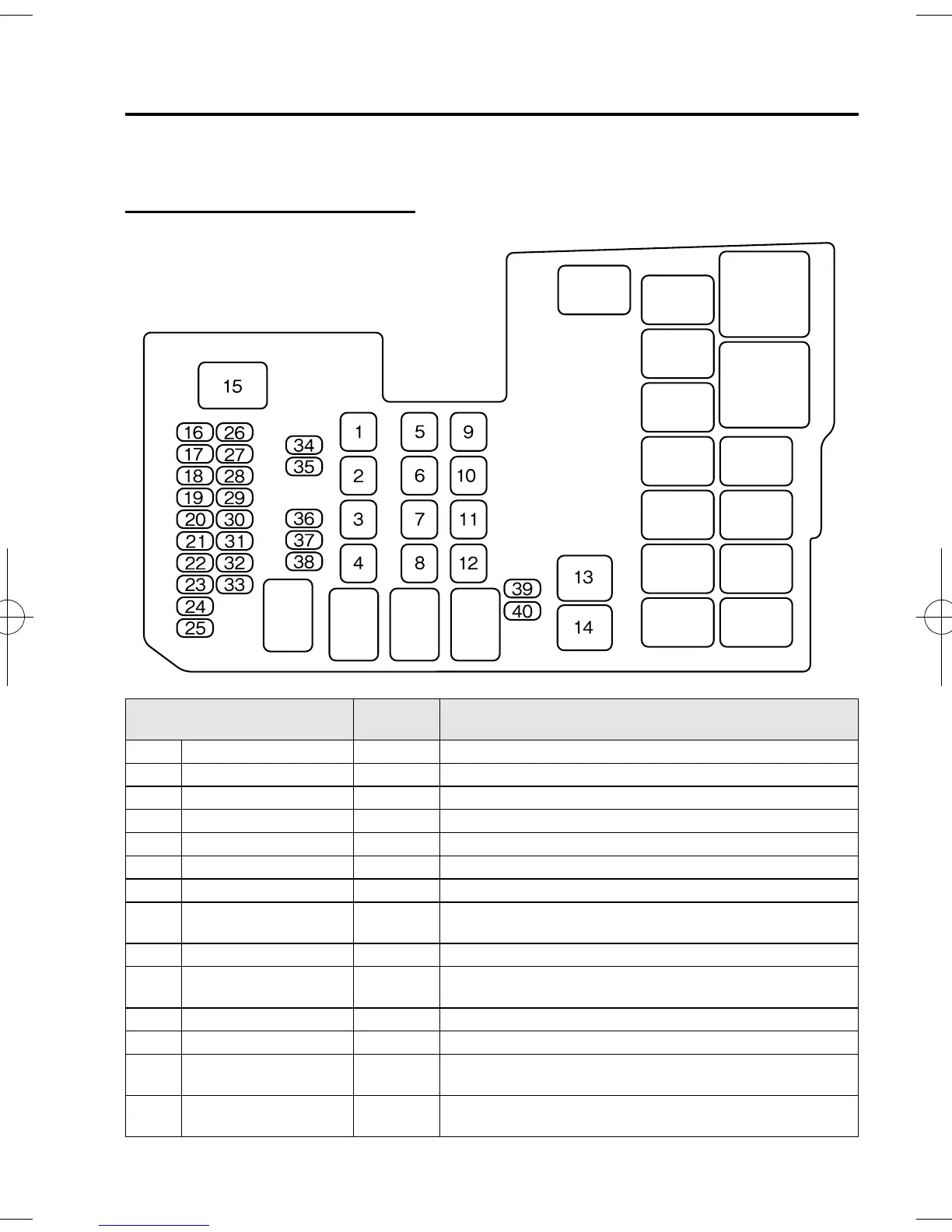

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 30 A Cooling fan
3 P.WIND 40 A Power windows
í
4 IG KEY1 30 A For protection of various circuits
5 ABS-V 20 A ABS, DSC
í
6 ABS-P 30 A ABS, DSC
í
7 IG KEY2 20 A For protection of various circuits
í
8
HEATER
DEICER
20 A Water heater
í
9 BLOWER 40 A Blower motor
10
GLOW
IG KEY1
40 A Glow plugs
í
11 BTN 40 A For protection of various circuits
12 IG KEY2 40 A For protection of various circuits
í
13
CLOSER
P.SLIDE LH
20 A Easy closer,Power slide door (LH)
í
14
CLOSER
P.SLIDE RH
20 A Easy closer,Power slide door (RH)
í
Maintenance and Care
Owner Maintenance
8-43
í
Some models.
