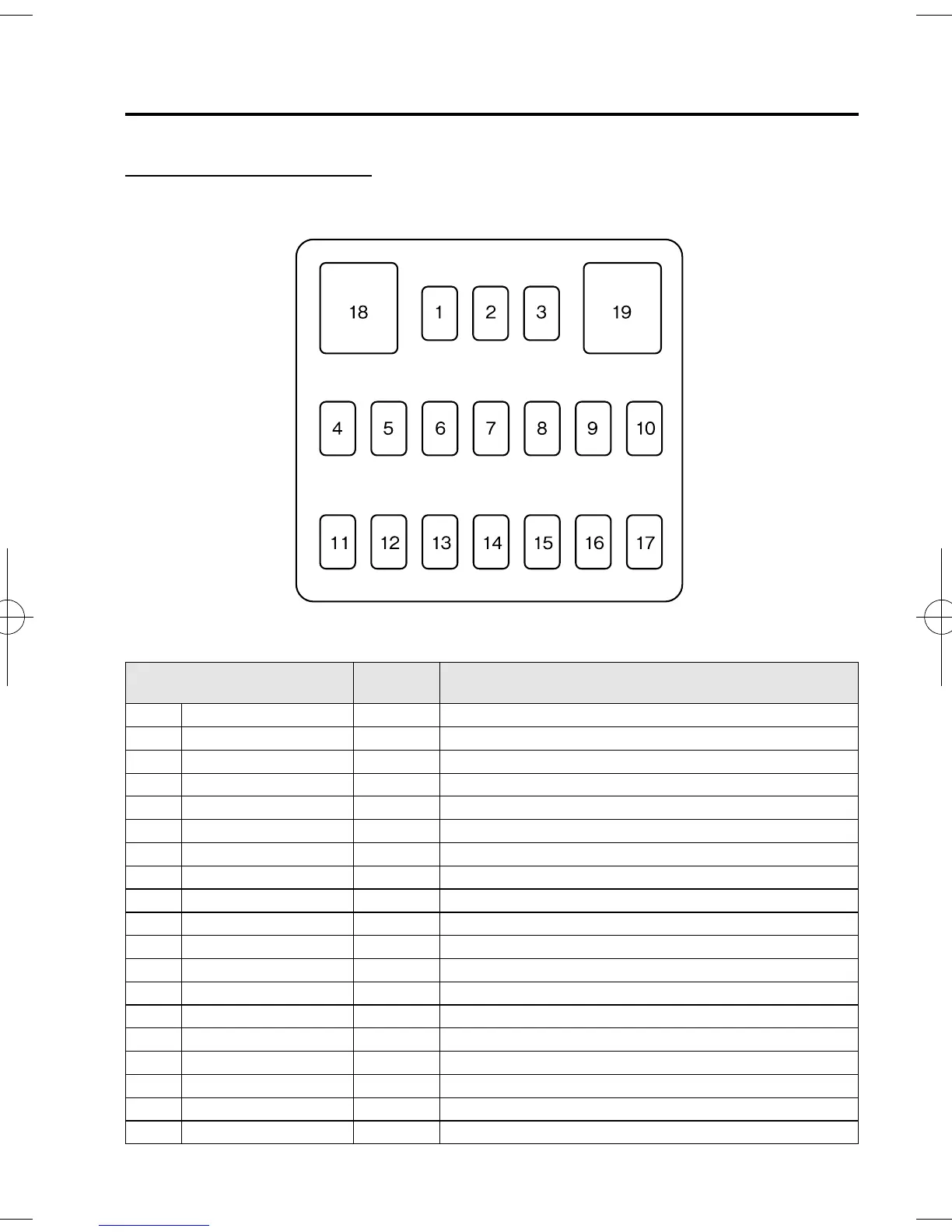

Fuse block (Passenger's side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 M.DEF 7.5 A Mirror defroster
í
2 ―― ―
3 ―― ―
4 P.OUTLET 15 A Accessory Socket
5 SHIFT/L 5 A AT shift
í
6 CIGAR 15 A Lighter
7 MIRROR 7.5 A Power control mirror, Audio system
í
8 A/C 10 A Air conditioner
9 F.WIP 25 A Windshield wipers and washer
10 R.WIP 15 A Rear window wiper and washer
11 ENG 5 A Main relay
í
, PCM
í
12 METER 10 A Instrument cluster, Auto Headlight leveling
í
13 SAS 10 A Supplemental restraint systems
14 S.WARM 15 A Seat warmer
í
15 ABS/DSC 5 A ABS, DSC
í
16 EHPAS 5 A EHPAS
í
17 ENG2 15 A ―
18 P/W 30 A Power windows
í
19 P/W 40 A ―
