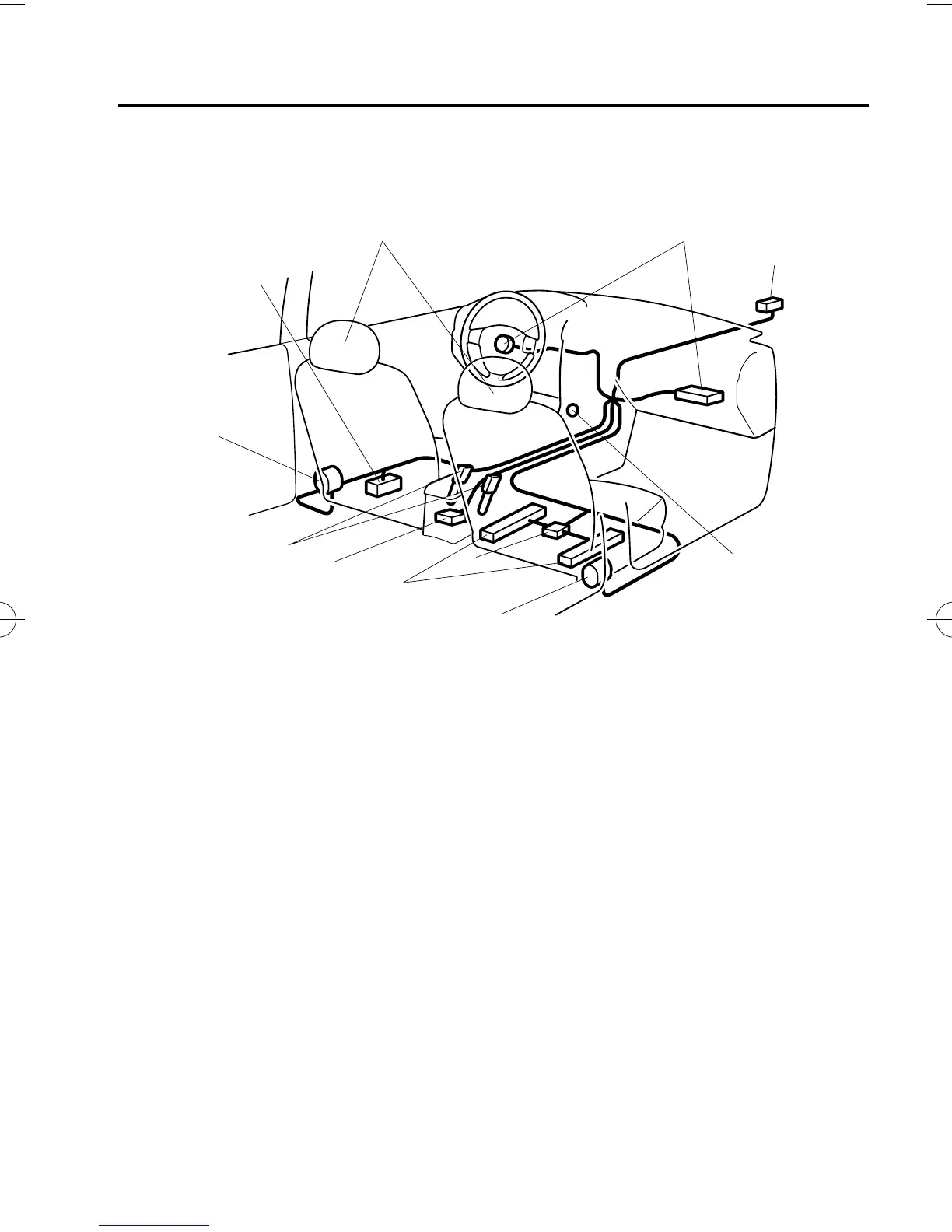

qFront Air Bag System Components
(1)
(6)
(10)
(7)
(6)
(9)
(5)
(4)
(3)(2)
(8)
(1) Driver seat slide position sensor (page 2-53)
(2) Front seats
(3) Front dual stage inflators and air bags
(4) Front air bag sensor
(5) Front passenger air bag deactivation indicator light (page 2-53)
(6) Front seat belt pretensioner and load limiting systems (page 2-21)
(7) Front passenger seat weight sensors (page 2-53)
(8) Front passenger seat weight sensor control module
(9) Crash sensors and diagnostic module (SAS unit)
(10) Driver and front passen ger seat belt buckle switches (page 2-53)
