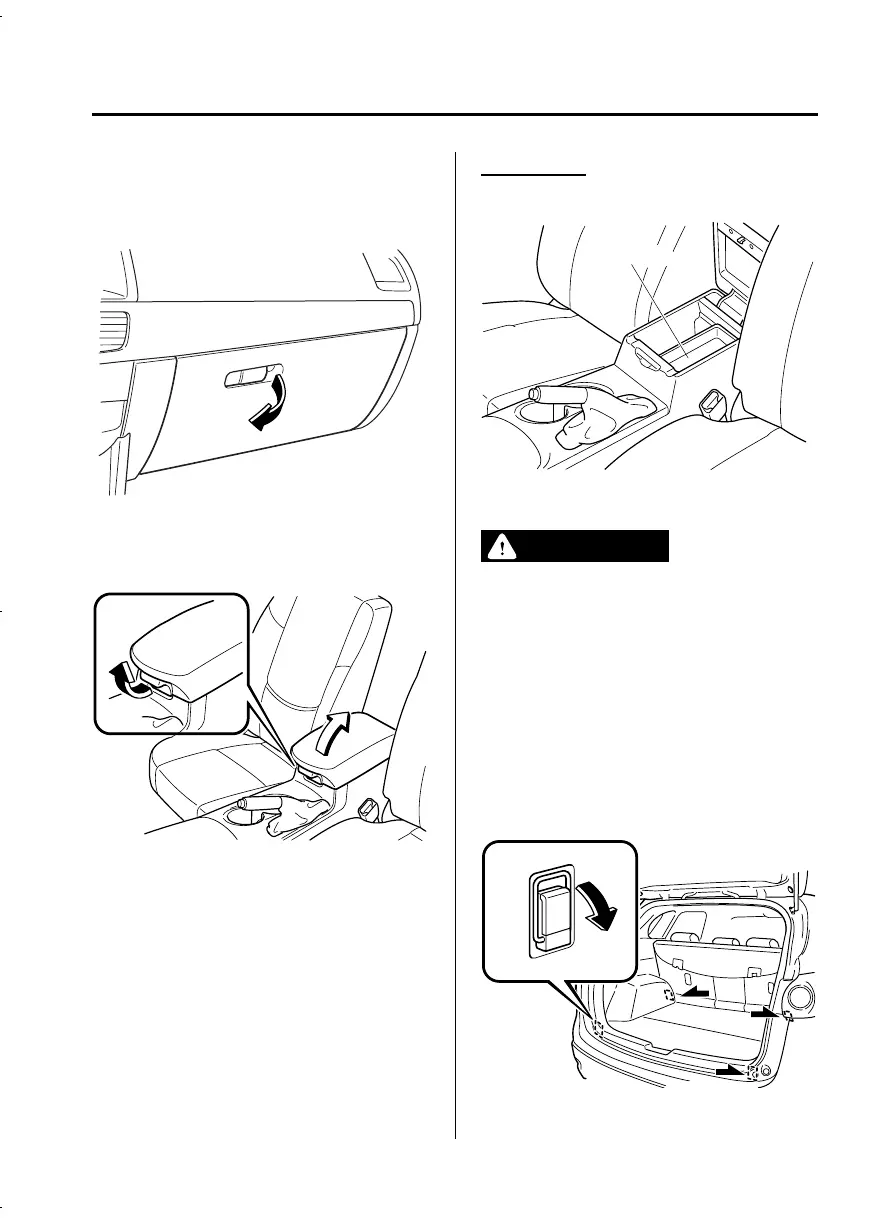

qGlove Compartment
To open the glove compartment, pull the
latch toward you.
qCenter Console
To open, pull the relea se latch.
Storage tray
The storage tray can be removed.
Storage tray
qCargo Securing Loops
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
Interior Features
Interior Equipment
5-103
