qFuse Panel Description

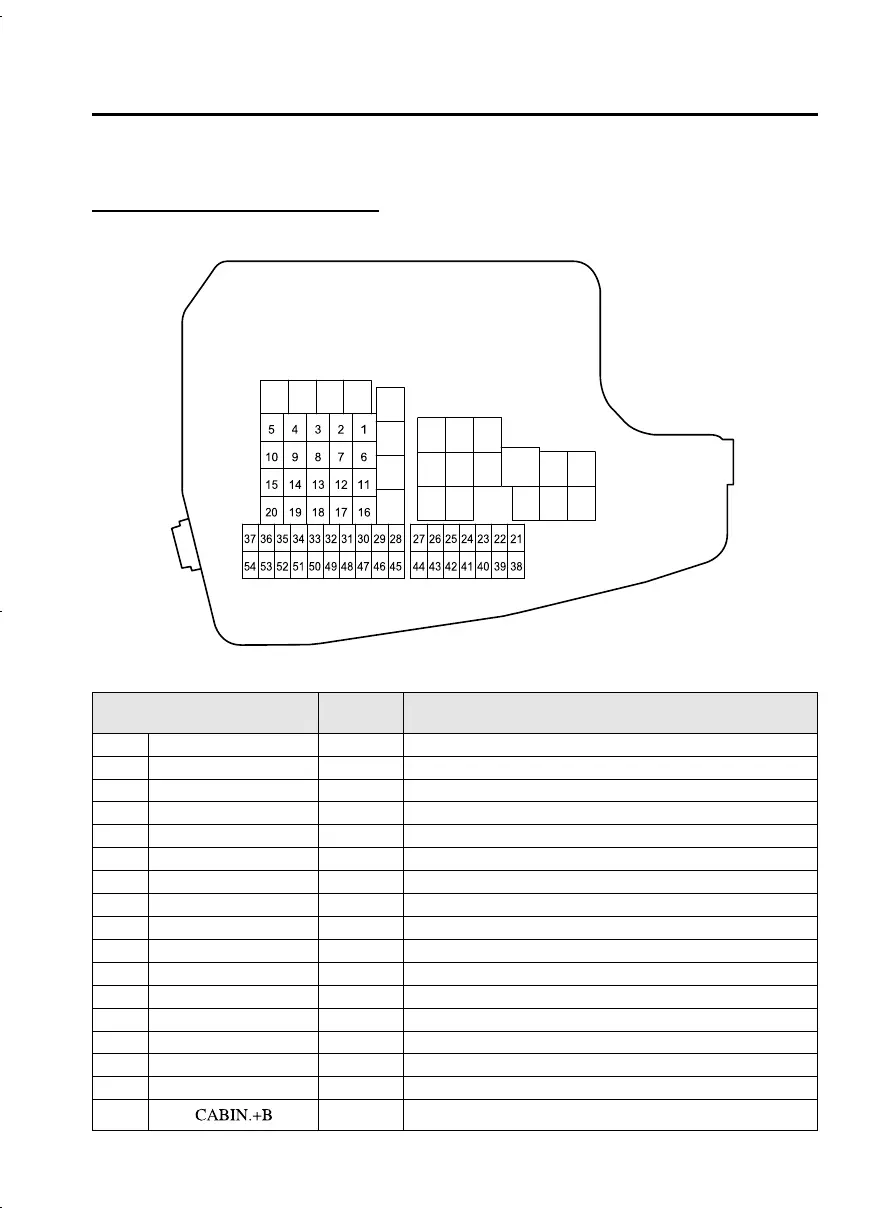

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 ADD FAN GE 30 A Cooling fan
2 IG2 30 A For protection of various circuits
3 INJECTOR 30 A Engine control system
4 FAN DE ――
5 P.WINDOW1 30 A Power windows
6 ―― ―
7 ADD FAN DE ――
8 EVVT 20 A Engine control system
9 DEFOG 40 A Rear window defroster
10 DCDC DE ――
11 FAN GE 30 A Cooling fan
12 ―― ―
13 ―― ―
14 ―― ―
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17
50 A For protection of various circuits
