Black plate (61,1)
(With Driver and Front Passenger Occupant Classification System)

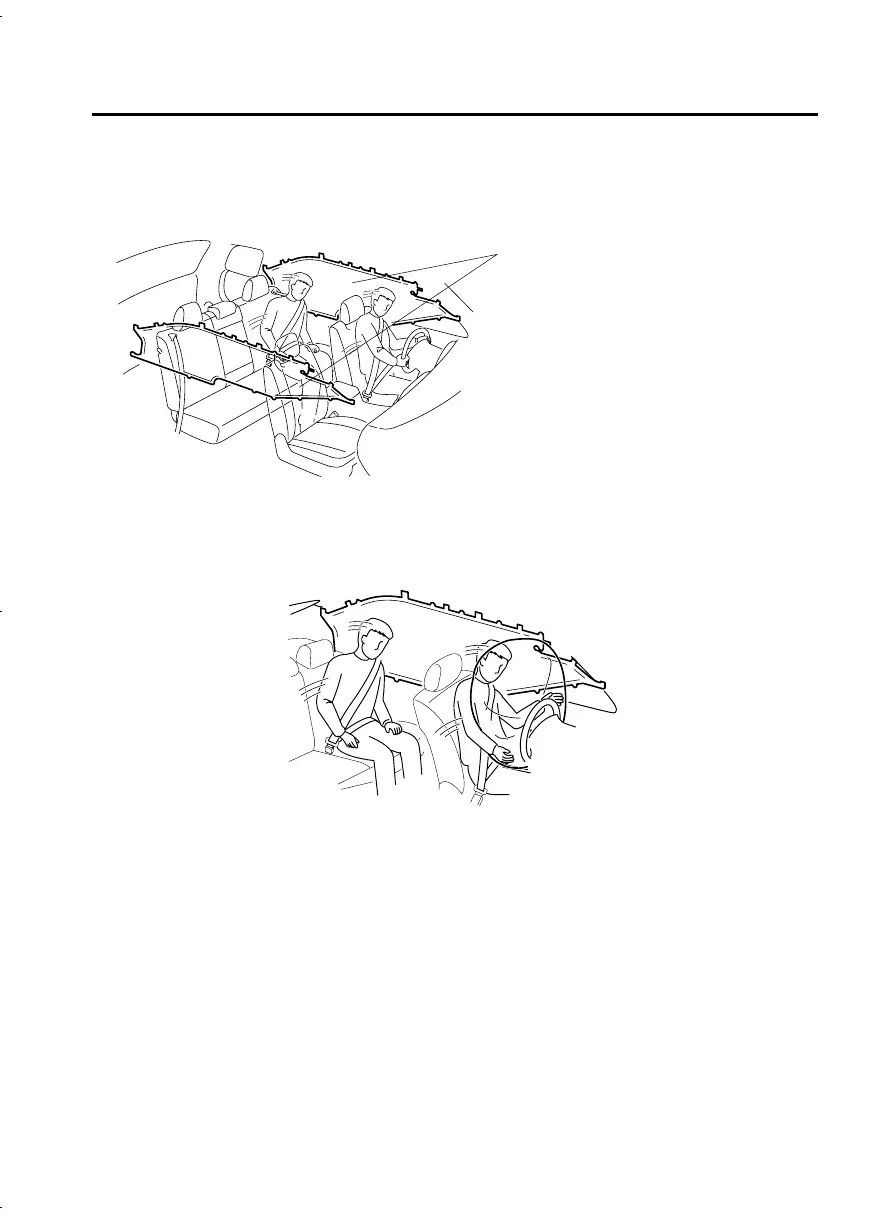

In a roll-over:
In response to a vehicle roll-over, both curtain air bags inflate.
Both curtain air bags will deploy after
the roll-over accident is detected.
(With Driver and Front Passenger Occupant Classification System)
In an angled collision:
During a collision, driver/front passenger air bag and the curtain air bag will deploy.
qWarning Light/Beep
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-15.
Refer to Air Bag/Front Seat Belt Pretensioner System Warning Beep on page 7-32.
Essential Safety Equipment
SRS Air Bags
2-49
CX-5_8CA5-EA-11L_Edition3 Page61
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L
