Fuse Panel Description

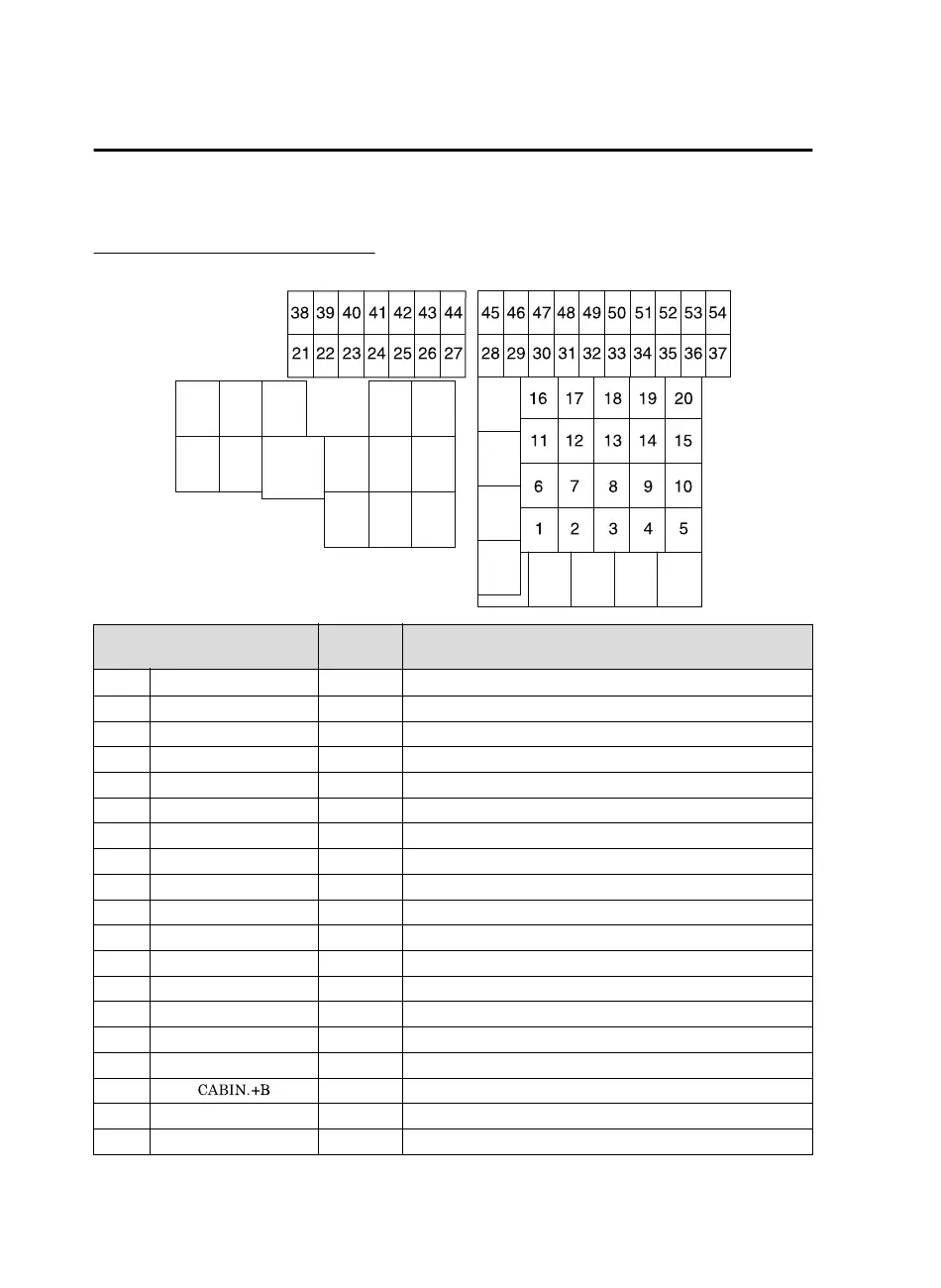

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 WIPER.DEI 20 A
Windshield wiper de-icer
*
2 IG2 30 A For protection of various circuits
3 INJECTOR 30 A Engine control system
4― ― ―
5P.WINDOW1 30 A ―
6― ― ―
7― ― ―
8 EVVT 20 A Engine control system
9 DEFOG 40 A Rear window defogger
10 ― ― ―
11 R.HEATER 40 A Air conditioner
12 EPB L 20 A Electric parking brake (EPB) (LH)
13 AUDIO 40 A Audio system
14 EPB R 20 A Electric parking brake (EPB) (RH)
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17
50 A For protection of various circuits
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
