c.Frontconsole(SeeFRONTCONSOLEREMOVAL/INSTALLATION.)
d.CDplayer(SeeCDPLAYERINSTALLATION.)
e.Frontconsolebox(SeeFRONTCONSOLEBOXREMOVAL/INSTALLATION.)
f.Consolesidepanel(SeeCONSOLESIDEPANELREMOVAL/INSTALLATION.)
g.Shiftpanel(SeeSHIFTPANELREMOVAL/INSTALLATION.)
h.Upperpanel(SeeUPPERPANELREMOVAL/INSTALLATION.)
i.Shiftbezel(SeeSHIFTBEZELREMOVAL/INSTALLATION.)
j.Centerconsoletray(SeeCENTERCONSOLETRAYREMOVAL/INSTALLATION.)

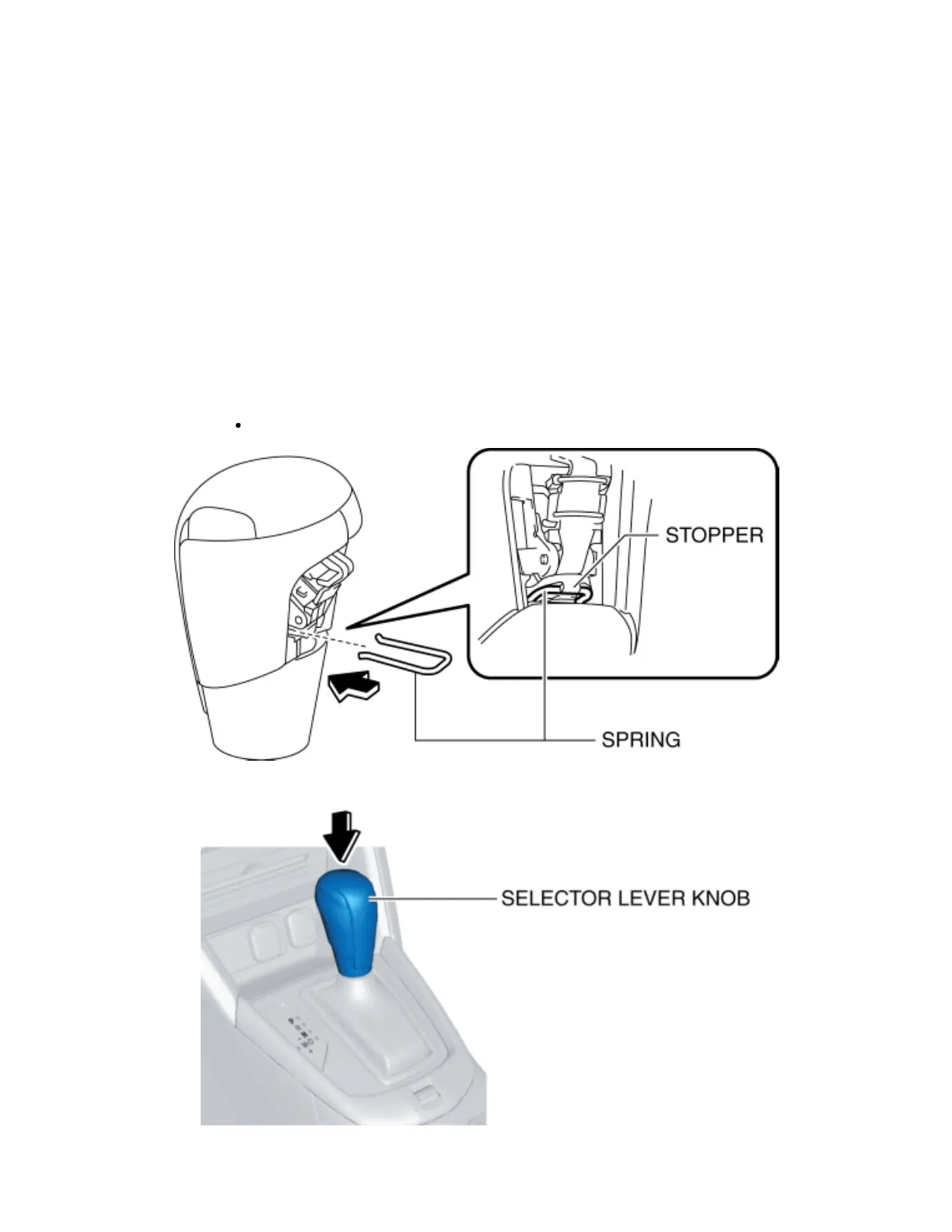

13.Performthefollowingproceduretoinstalltheselectorleverknob.
a.Installthespringtotheselectorleverknob.
CAUTION:
Installthespringsothatitisstoppedbythestopper.
b.Installtheselectorleverknobtotheselectorlevercomponent.
c.Installthelockreleasebuttoncoversothatitengageswiththehookoftheselector
leverknob.
