Fuse Panel Description

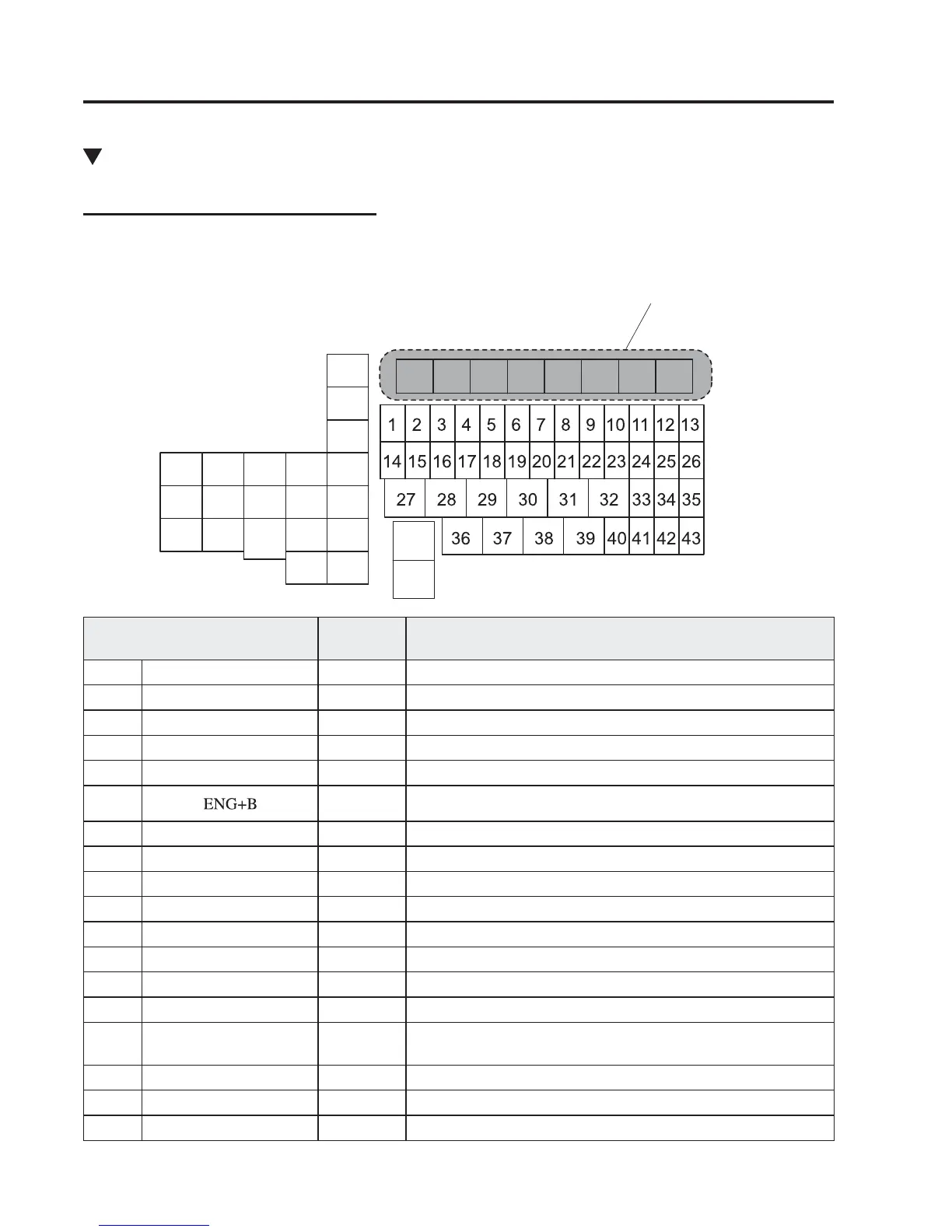

Fuse block (Engine compartment)
Multiplex slow blow fuse
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 FOG 15 A Front fog lights
*
2 H/L HI 20 A Headlight high beam
3 H/CLEAN 20 A Headlight washer
*
4 STOP 10 A Brake lights, Rear fog light
*
5 ROOM 15 A Overhead light
6
7.5 A Engine control system
*
7 FUEL WARM 15 A Fuel warmer
*
8 HAZARD 25 A Hazard warning fl ashers, Direction indicator lights
9 ABS/DSCS 30 A ABS, Dynamic stability control system
*
10 METER2 7.5 A Instrument cluster
*
11 AUDIO2 7.5 A Audio system
*
12 BOSE 25 A Bose
®
Sound System-equipped model
*
13 AUDIO1 15 A Audio system
*
14 FUEL PUMP 15 A Fuel system
*
15
HID R
D R L
15 A Headlight (RH)
*1
16 AT PUMP 15 A Transaxle control system
*
17 HORN 15 A Horn
18 TAIL 15 A Tail lights, Number plate lights, Position lights
