Rear/Rear corner/Rear
Side Ultrasonic Sensor
*
▼
Rear/Rear corner/Rear Side
Ultrasonic Sensor
The ultrasonic sensors function by
emitting ultrasonic waves which are
reflected off obstructions at the rear and
the returning ultrasonic waves are picked
up by the ultrasonic sensors.

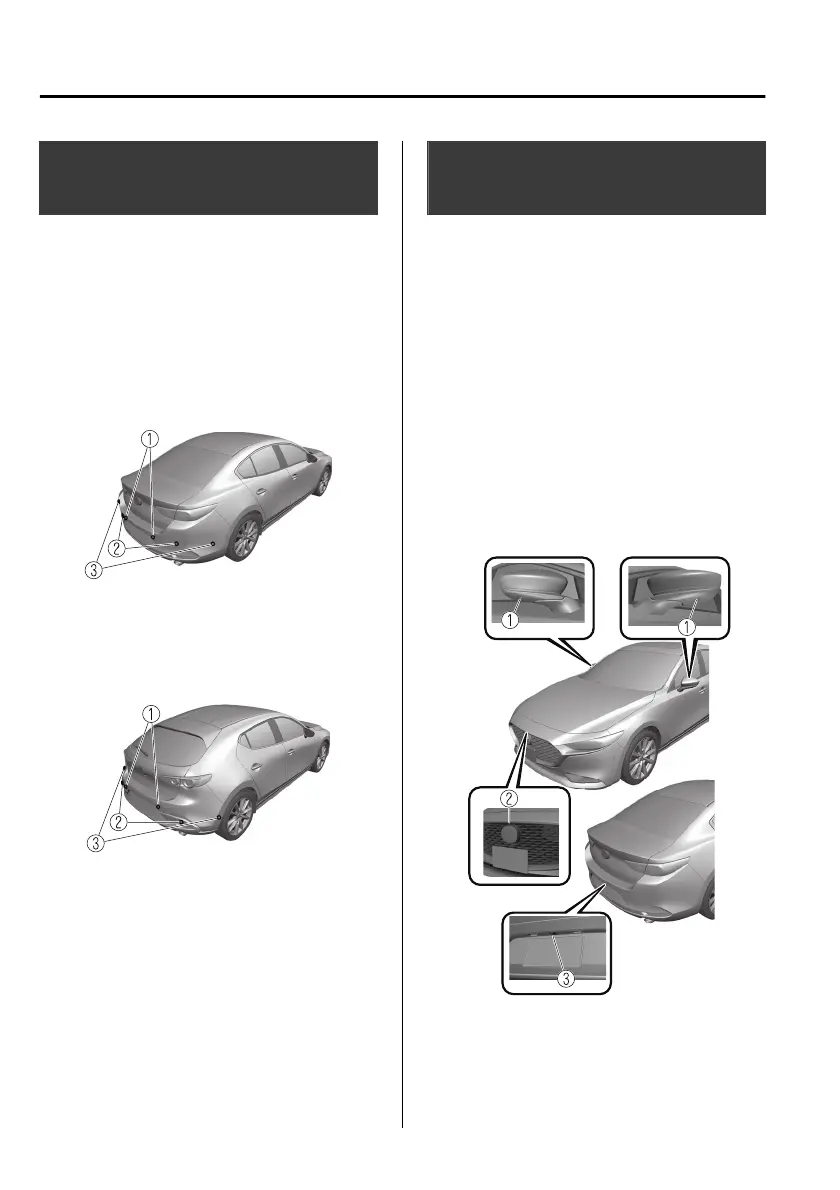

Saloon
1. Rear ultrasonic sensor
2. Rear corner ultrasonic sensor
3. Rear side ultrasonic sensor
Hatchback
1. Rear ultrasonic sensor
2. Rear corner ultrasonic sensor
3. Rear side ultrasonic sensor
The ultrasonic sensors are mounted in the
rear bumper.
Front Camera/Side
Cameras/Rear Camera
*
▼
Front Camera/Side Cameras/Rear
Camera
Your vehicle is equipped with a front
camera, side cameras, and a rear camera.
The 360°View Monitor uses each camera.
Refer to 360°View Monitor on page
4-175.
The front camera, side cameras, and rear
camera shoot images of the area
surrounding the vehicle.
Each camera is installed to the following
positions.
Saloon
1. Side cameras
2. Front camera
3. Rear camera
When Driving
i-ACTIVSENSE
4-216
*Some models.
