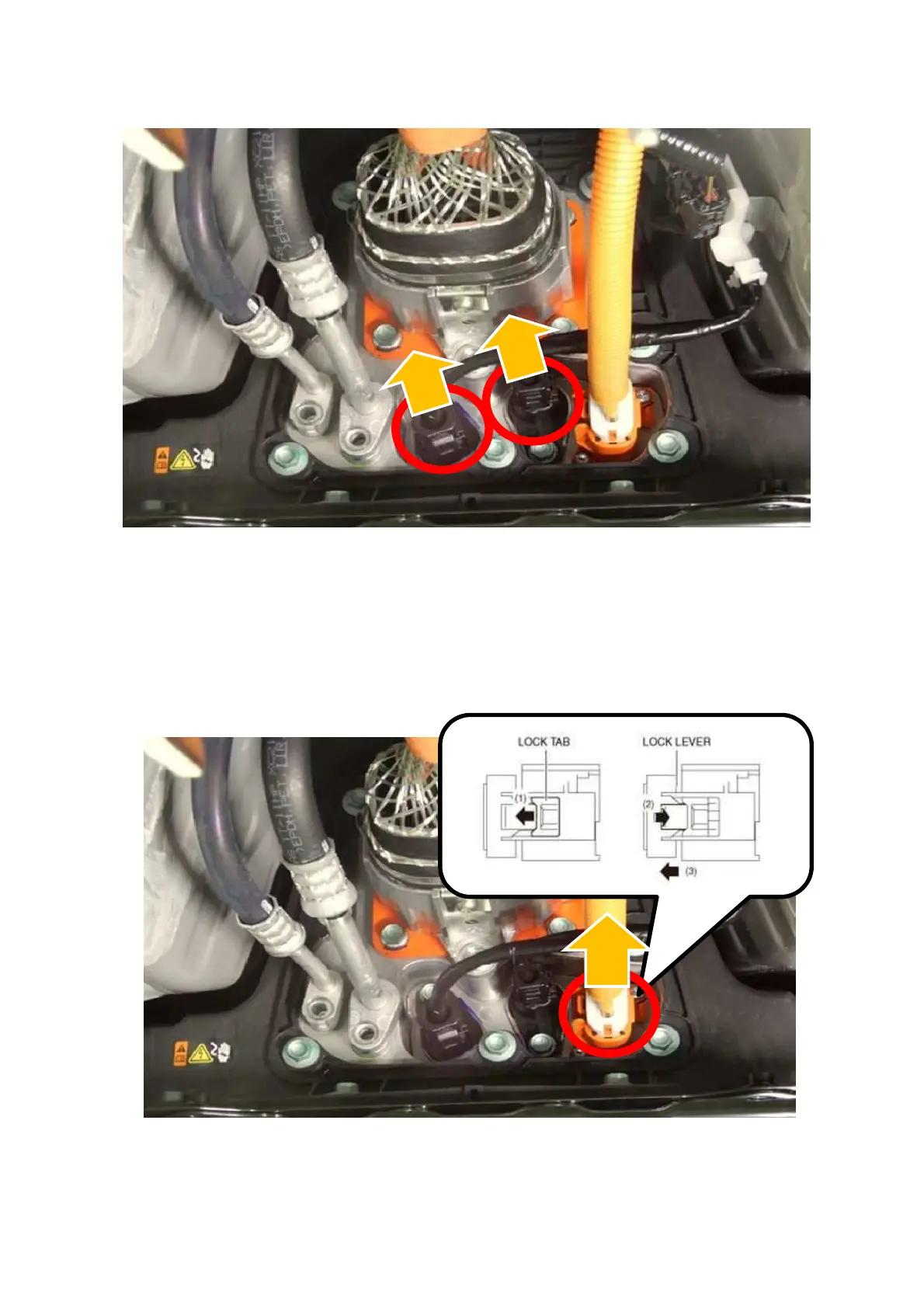

13) Disconnect the connectors shown in the figure.
14) Wear insulating gloves and disconnect the high voltage cable connector using the following
procedure.
・
After disconnecting the high voltage cable connectors, wear insulating gloves and wrap
the terminals with electriccal tape to insulate them.
(1) Pull out the lock tab.
(2) Pull out the connector while pressing the lock lever.
19
To Next Page
